Drying Oven SLW SIMPLE 115

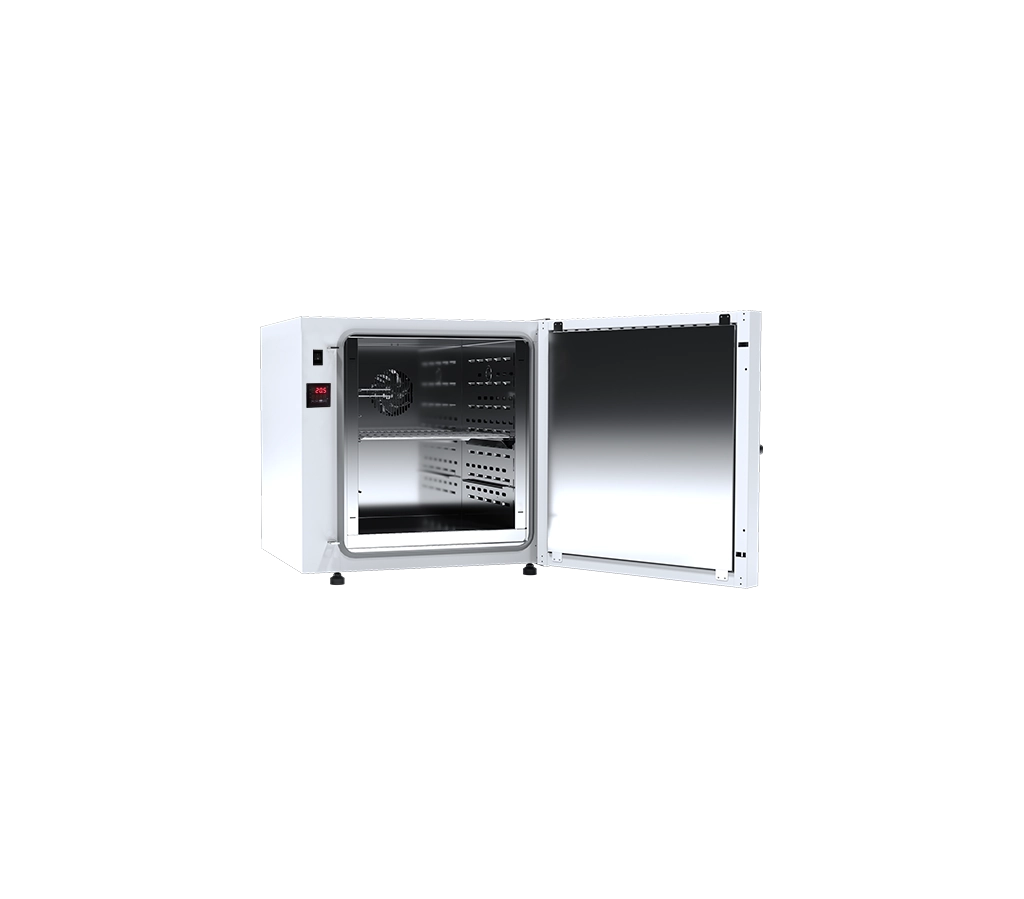

POL-EKO Laboratory Drying Oven SLW 115 SIMPLE The SLW 115 SIMPLE is a 112-liter laboratory drying oven designed for high-efficiency drying and thermal processing in routine laboratory settings. Featuring forced air convection and a temperature range of ambient +5?C to +250?C, it ensures rapid heat-up times and superior temperature uniformity. Unlike the touchscreen “Smart” models, the SIMPLE version uses a basic digital controller for straightforward, set-and-forget operation. With its acid-proof stainless steel interior and reliable safety features, it is an ideal workhorse for industrial quality control, schools, and clinical laboratories.

SKU: SLW SIMPLE 115 Categories: , Brand: Product ID: 21675

Description

The POL-EKO SLW 115 SIMPLE is designed for users who need a large-capacity oven capable of handling high-density loads but do not require complex data logging or touchscreen programming. The 112-liter internal volume provides ample space for large batches of glassware or bulky industrial components.

Forced Air Efficiency: The “W” in SLW stands for Forced Air Convection. Unlike natural convection models, the SIMPLE 115 uses a built-in fan to actively circulate air throughout the chamber. This process is essential for:

Temperature Uniformity: Preventing hot or cold spots, ensuring all samples are treated equally.

Faster Processing: Accelerating the evaporation of moisture from wet glassware or dense materials.

Quick Recovery: Bringing the chamber back to the set temperature faster after the door has been opened.

Streamlined Digital Control: The “SIMPLE” line is optimized for straightforward operation:

Intuitive Interface: Replaces the 4.3-inch touchscreen with a clear LED/LCD display and tactile buttons. This is often preferred in environments where simplicity reduces the chance of operator error.

Basic Timer Functions: Allows for setting a target temperature and a specific duration for the drying cycle.

Safety First: Retains the critical over-temperature protection system, which automatically cuts power to the heaters if the temperature exceeds safe limits, protecting both the samples and the facility.

High-Quality Construction: Even in the SIMPLE series, POL-EKO does not compromise on build quality. The inner chamber is made of acid-proof stainless steel (DIN 1.4301), providing excellent resistance to chemicals and ensuring the unit is easy to clean and maintain over a long service life.

Primary Applications:

Industrial QC: Routine drying of metal parts, wires, and electronic components.

High-Volume Glassware Drying: Efficient moisture removal for busy laboratories.

Agricultural Labs: Drying of large batches of seeds or soil samples.

Educational Settings: A durable, high-capacity oven for chemistry and biology classrooms.

Specifications

POL-EKO SLW 115 SIMPLE Drying Oven Specifications

The SLW 115 SIMPLE is a large-capacity (109 liters), entry-level drying oven designed for stable and straightforward operation. Unlike the standard “Smart” versions, the SIMPLE model is built for “Switch On and Dry” utility, featuring a simplified controller and focused temperature range for general laboratory tasks.

  • Air Convection: Forced (Fan-assisted)

  • Chamber Capacity: 109 Liters

  • Working Capacity: 109 Liters

  • Controller: Microprocessor with LED display

  • Temperature Range: +5°C above ambient to +250°C

  • Temperature Resolution: 0.1°C

  • Temperature Fluctuation at 105°C: ±0.3°C

  • Temperature Variation at 105°C: ±1.5°C

  • Time to Reach 105°C: ~23 minutes

  • Energy Consumption at 105°C: 301 Wh/h

  • Over Temperature Protection: Class 1.0 (Standard) according to DIN 12880

  • Internal Dimensions (W x H x D): 460 x 540 x 440 mm

  • External Dimensions (W x H x D): 720 x 730 x 710 mm

  • Shelves (Standard / Max): 2 / 7

  • Max. Shelf Workload: 10 kg

  • Max. Total Unit Workload: 60 kg

  • Interior Material: Stainless steel (DIN 1.4016)

  • Housing Material: Powder coated sheet

  • Connectivity: Standard Access Port (Ø30 mm) on the right side

  • Nominal Power: 2500 W

  • Voltage: 230V, 50/60 Hz

  • Weight: 64 kg


Key Design Differences

  • Chamber Volume: Note that the SIMPLE 115 model has a slightly smaller chamber volume (109 L) compared to the Smart/Smart PRO version (112 L).

  • Simplified Controller: Allows for basic temperature setting and time programming without the complex multi-segment profiles or data logging via USB/LAN found in Smart models.

  • Materials: Uses DIN 1.4016 stainless steel for the interior, which is durable for general drying but differs from the acid-proof 1.4301 used in the premium series.

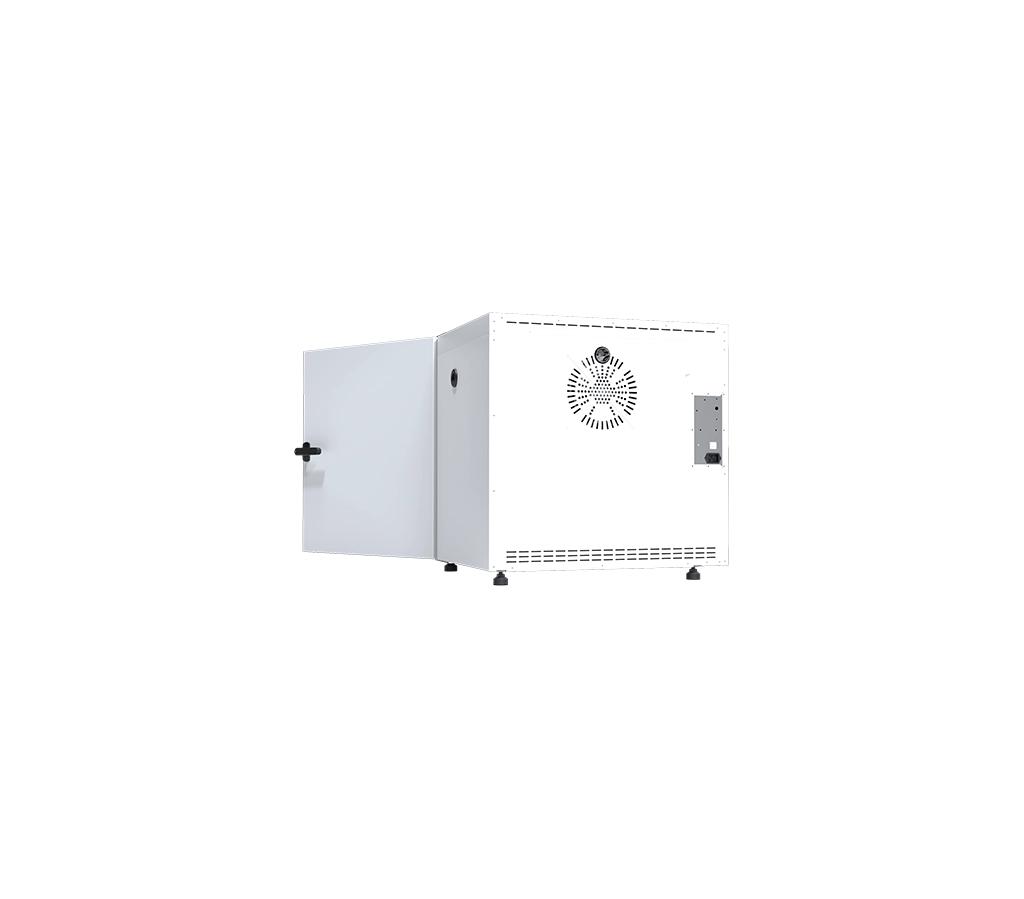

  • Access Port Position: The access port is located on the right side of the SIMPLE unit, whereas it is typically on the left side for Smart models.
