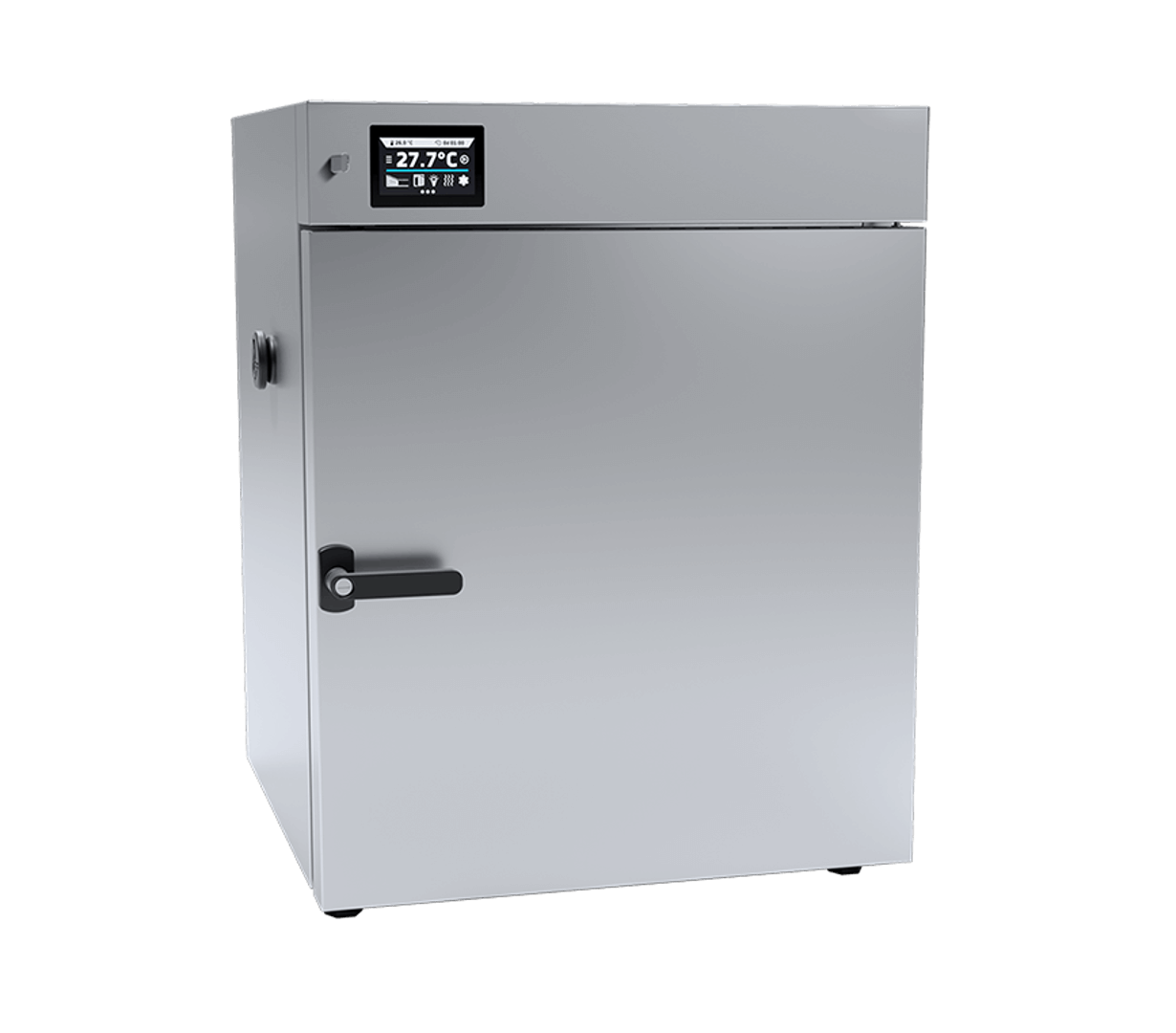

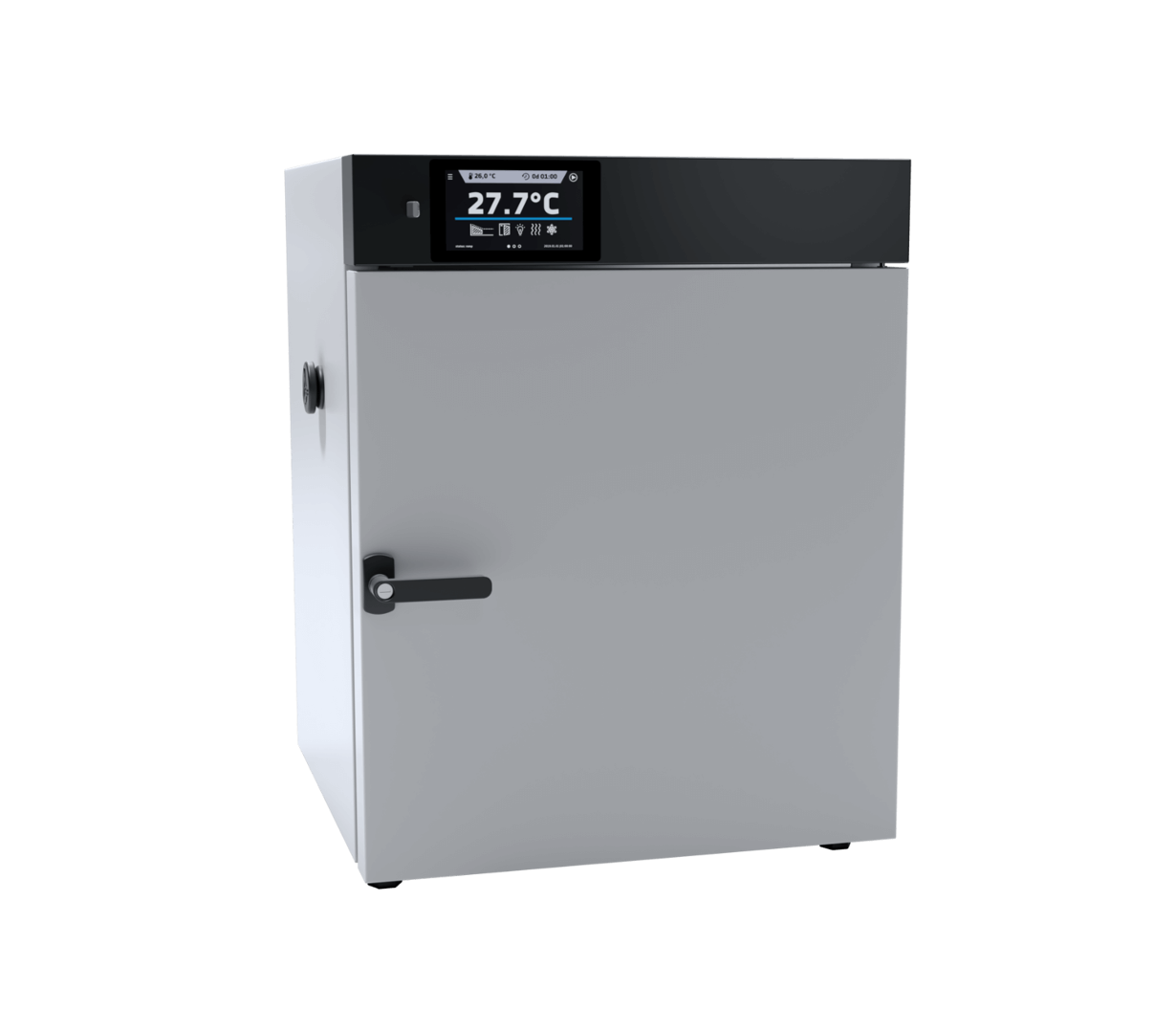

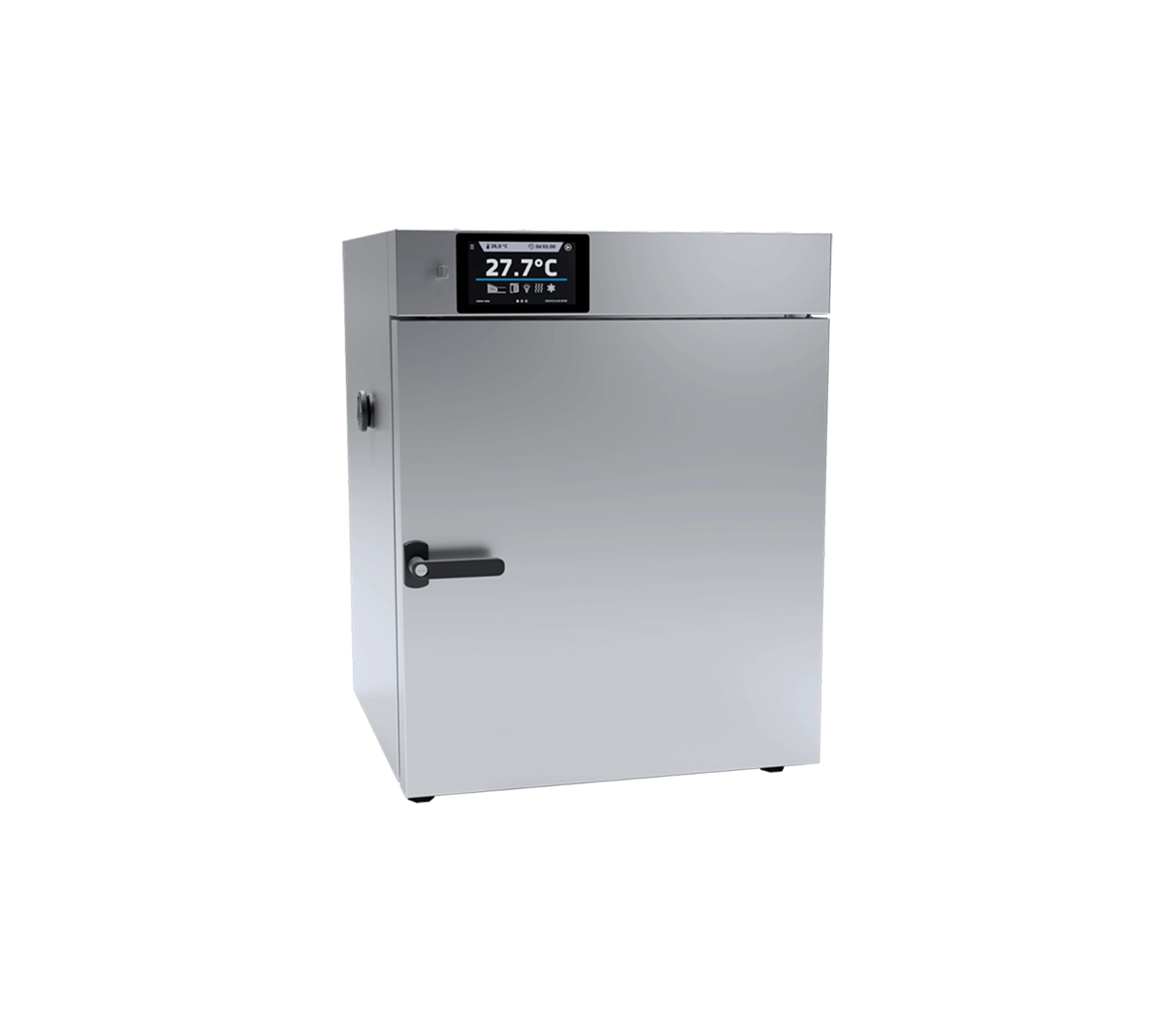

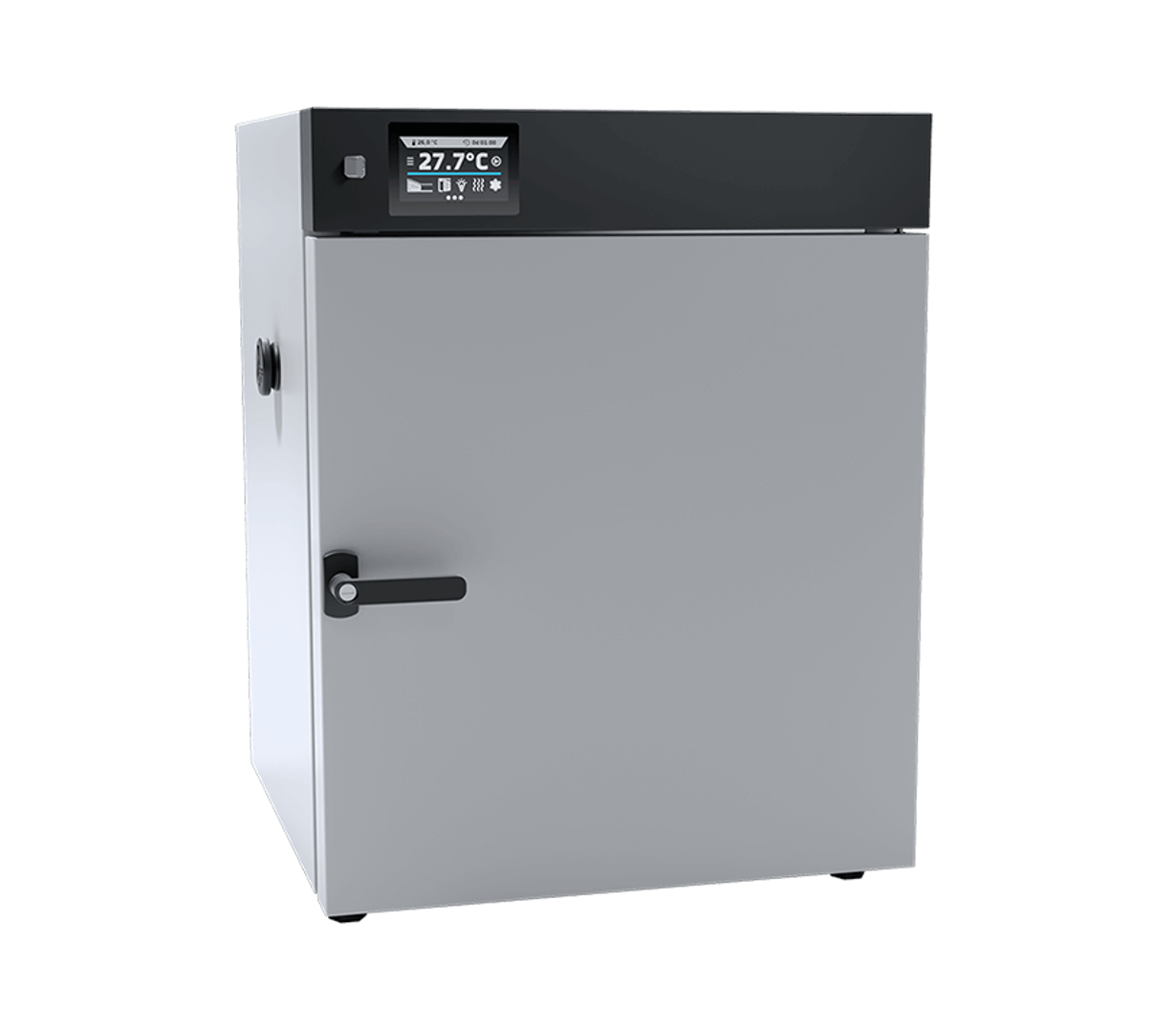

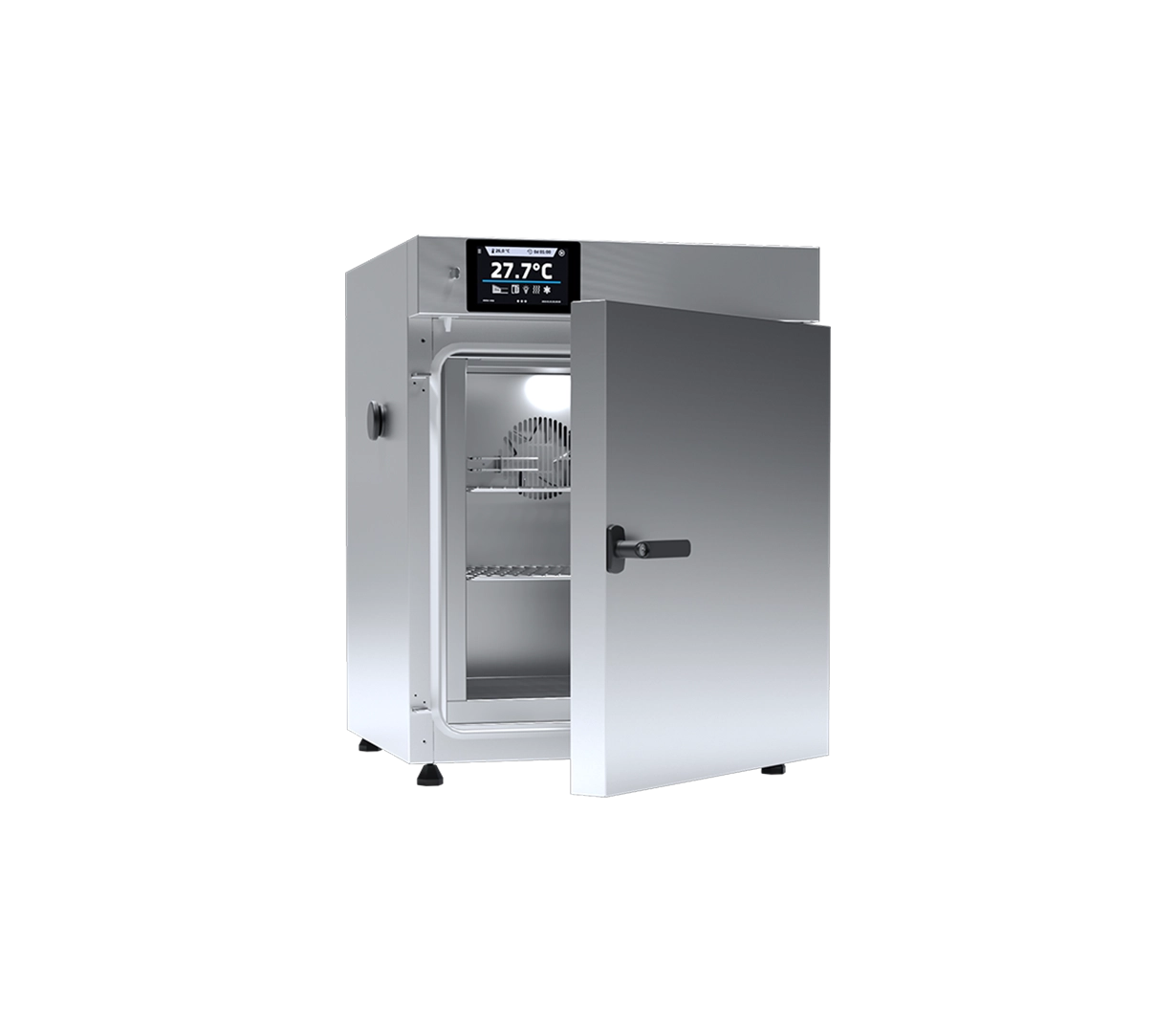

Drying Oven SLW 115

POL-EKO Laboratory Drying Oven SLW 115 The SLW 115 is a high-performance 112-liter forced-air laboratory drying oven engineered for rapid thermal processing, aging tests, and high-volume glassware drying. Utilizing forced air convection and a wide temperature range of ambient +5?C to +300?C, it ensures fast heat-up times and exceptional temperature stability throughout the chamber. Managed by the Smart 4.3-inch touchscreen (or the 7-inch Smart PRO), it features multi-segment programming, an “Alarm Bar” for visual status monitoring, and integrated data logging via USB/LAN. Its acid-proof stainless steel interior and 60 kg workload capacity make it a durable workhorse for industrial, pharmaceutical, and research laboratories.

SKU: SLW 115 Categories: , Brand: Product ID: 21666

Description

The POL-EKO SLW 115 is designed for laboratories where speed, precision, and repeatability are non-negotiable. Its 112-liter internal capacity provides a generous workspace, accommodating up to 7 shelves. The Forced Air (W) system is the core advantage of this model; by utilizing a high-quality, adjustable fan (0?100% speed), the oven actively circulates air to eliminate “cold spots” and thermal stratification. This ensures that every sample, regardless of its position in the chamber, is subjected to the exact same thermal conditions?a critical requirement for validated pharmaceutical and industrial processes.Intelligence and Regulatory Compliance:The SLW 115 is built to meet modern laboratory documentation standards:Controller Tiers: Choose the Smart controller for standard daily tasks or the Smart PRO for complex, regulated workflows. The Smart PRO offers a 7-inch touchscreen, 40 programs, and Wi-Fi connectivity.Data Integrity: All models feature internal memory that logs temperature data and events. This data is easily exported via USB or accessed via LAN, providing a complete audit trail for quality control.Safety First: Equipped with Class 2.0 (Smart) or Class 3.1 (Smart PRO) over-temperature protection according to DIN 12880, as well as an “Alarm Bar” for immediate visual status checks from across the lab.Durable and Ergonomic Design:The interior is crafted from acid-proof stainless steel (DIN 1.4301), providing high resistance to corrosive chemicals and ease of decontamination. The unit includes an adjustable $emptyset 60 text{ mm}$ air-flap to manage moisture exhaust and a $emptyset 30 text{ mm}$ access port for external validation probes. For heavy-duty industrial samples, a reinforced version (W) is available, doubling the unit’s total workload capacity from 60 kg to 120 kg.Primary Applications:Accelerated Drying: Rapid moisture removal from high-density batches of glassware and tools.Material Research: Curing of resins, thermal aging of plastics, and stability testing of electronic components.Biotechnology: Protein digestion and plant tissue drying where precise temperature control is vital.Industrial QC: Preheating of samples and curing of specialized coatings under strictly controlled conditions.

Datasheet

Specifications

POL-EKO SLW 115 Drying Oven Specifications

The SLW 115 features forced air convection, using a fan to ensure uniform temperature distribution throughout the 112-liter chamber. This model is ideal for drying laboratory glassware, aging tests, and applications requiring rapid heat-up and stabilization.


  • Air Convection: Forced (Fan-assisted)


  • Chamber Capacity: 112 Liters


  • Working Capacity: 112 Liters


  • Temperature Range: +5°C above ambient to +300°C


  • Temperature Resolution: 0.1°C


  • Temperature Fluctuation at 105°C: ±0.2°C


  • Temperature Variation at 105°C: ±2.0°C


  • Over Temperature Protection: Class 2.0 (Smart) or Class 3.1 (Smart PRO)


  • Controller: Microprocessor PID


  • Display: 4.3″ touch screen (Smart) or 7″ touch screen (Smart PRO)


  • Internal Dimensions (W x H x D): 460 x 540 x 440 mm


  • External Dimensions (W x H x D): 660 x 850 x 710 mm


  • Shelves (Standard / Max): 2 / 7


  • Max. Shelf Workload: 25 kg (50 kg for reinforced version)


  • Max. Total Unit Workload: 60 kg (120 kg for reinforced version)


  • Interior Material: Acid-proof stainless steel (DIN 1.4301)


  • Housing Material: Powder coated sheet (Standard) or Stainless steel linen finish (IG version)


  • Door Type: Solid (Standard) / Door with viewing window (Optional)


  • Connectivity: LAN and USB ports (Wi-Fi standard on Smart PRO)


  • Voltage: 230V, 50/60 Hz


  • Nominal Power: 2500 W


  • Weight: 65 kg



Standard Equipment

  • Open Door Alarm: Visual and audible alerts if the door is left ajar.


  • Access Port: Ø30 mm port on the left side for introducing external validation sensors.


  • Door Lock: Integrated key lock for sample security.


  • Quality Control Protocol: Manufacturer’s test report at +105°C included.


  • USB & LAN: Standard ports for data logging and remote monitoring.



Controller Features (Smart PRO vs Smart)

  • Smart PRO Upgrade: Includes a larger 7″ screen, alphanumeric keyboard for naming programs, user account management for 5 users, and built-in Wi-Fi.


  • Programming: Smart models support 5 programs (6 segments each), while Smart PRO supports 40 programs (100 segments each).


  • Data Logging: Both models record temperature data and event logs (door openings, alarms) which can be exported via USB.
