Drying Oven SLW 1000

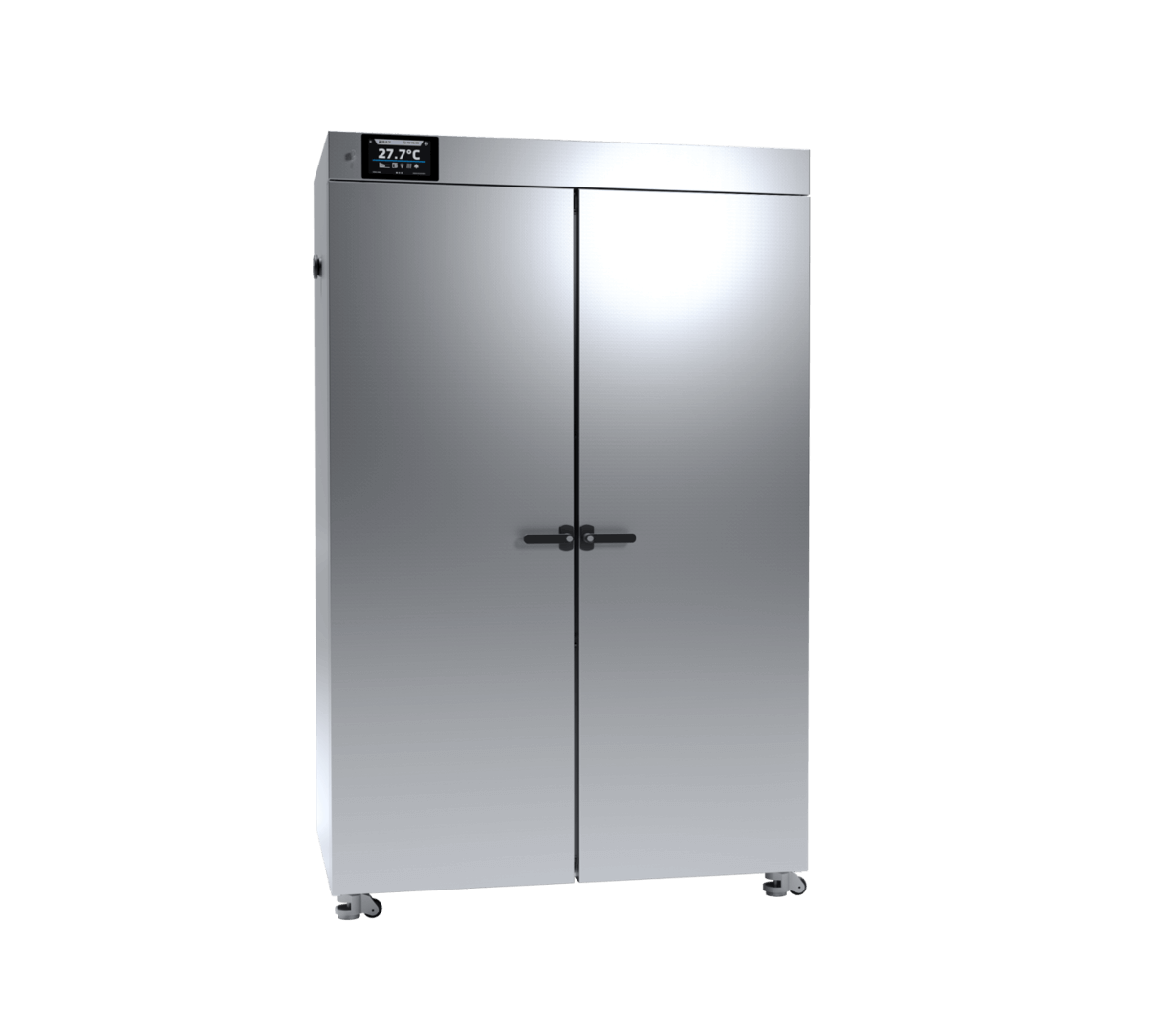

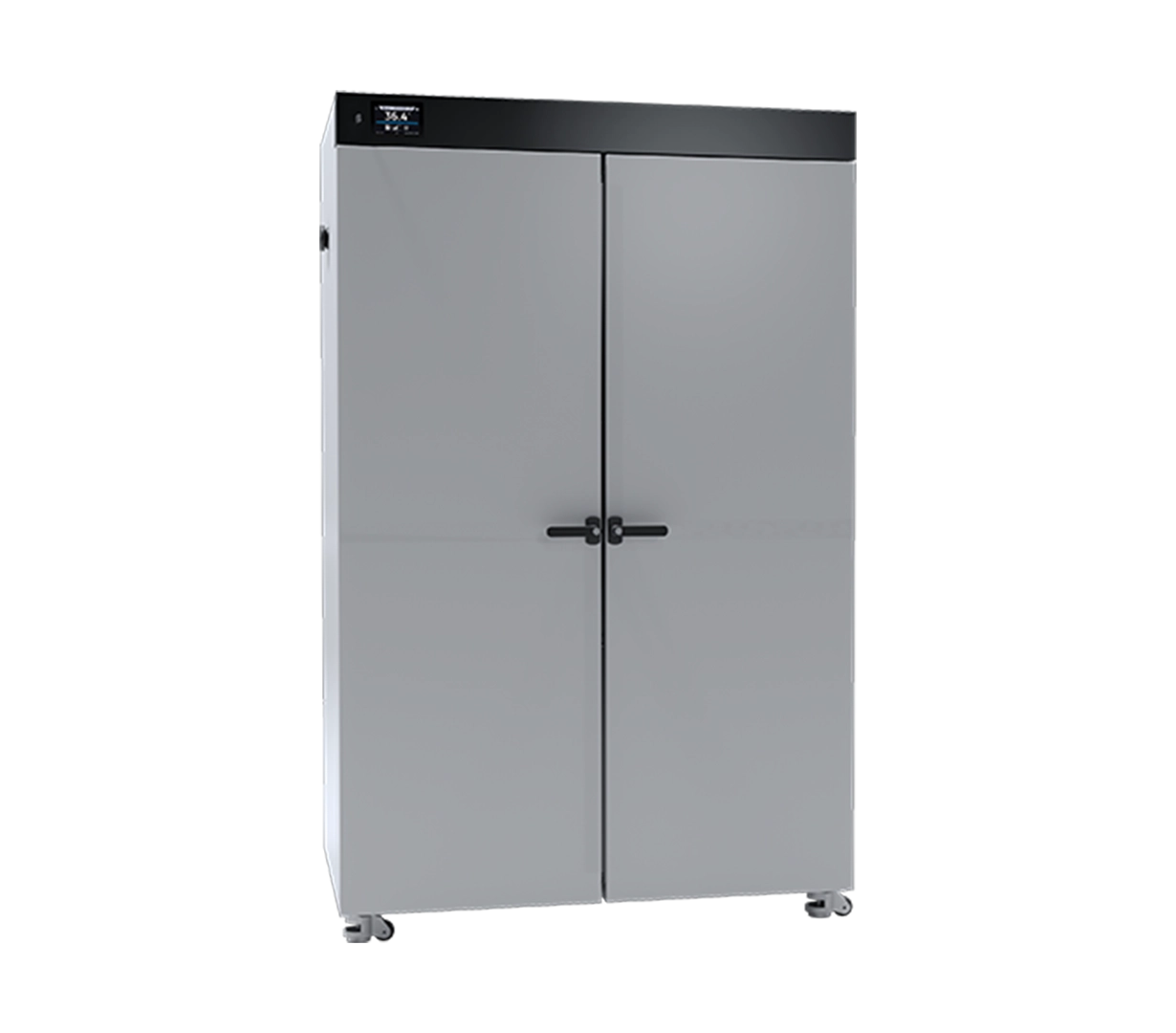

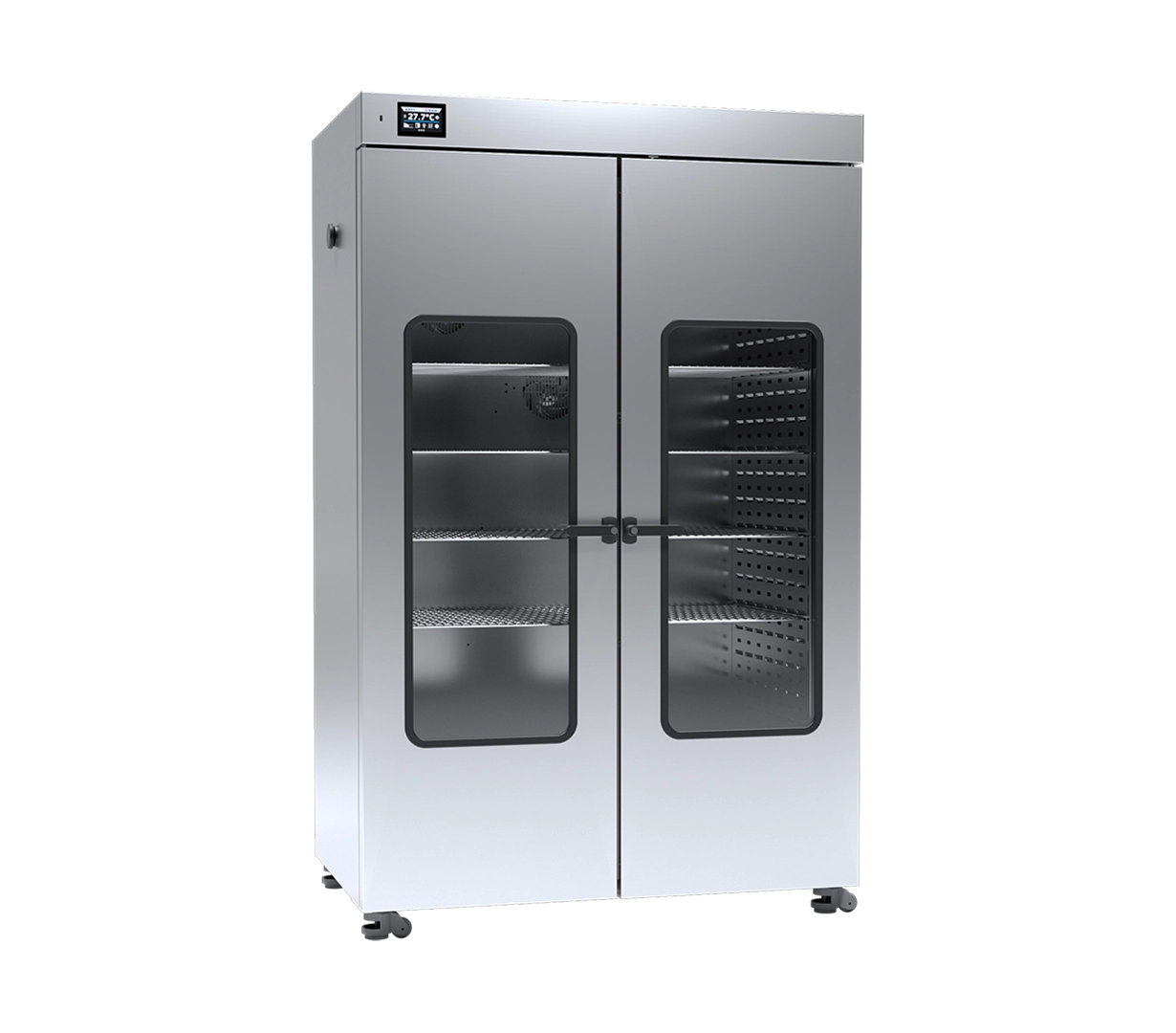

POL-EKO Laboratory Drying Oven SLW 1000 The SLW 1000 is a high-capacity, 1005-liter forced-air drying oven designed for industrial-scale thermal processing and high-volume drying applications. Featuring forced air convection with a temperature range of ambient +5?C to +300?C, it ensures exceptional temperature uniformity and rapid drying even with a maximum load of 300 kg. Managed by the Smart 4.3-inch or Smart PRO 7-inch touchscreen controller, it offers advanced programming, integrated data logging via USB/LAN/Wi-Fi, and a robust acid-proof stainless steel interior. Mounted on castors for mobility, it is the ultimate solution for large-scale pharmaceutical, industrial, and material testing facilities.

SKU: SLW 1000 Categories: , Brand: Product ID: 21671

Description

The POL-EKO SLW 1000 represents the pinnacle of high-volume thermostatic equipment. With its 1005-liter internal capacity, this unit is specifically engineered for facilities that need to process oversized items or massive quantities of smaller samples simultaneously.6 The Forced Air (W) system is critical at this scale; it utilizes a powerful fan to move air throughout the massive chamber, ensuring that temperature variation remains minimal ($pm 3.0^{circ}C$ at $105^{circ}C$) even when the oven is fully loaded with up to 22 shelves.Sophisticated Control & Heavy-Duty Performance:Equipped with the Smart or Smart PRO controllers, the SLW 1000 provides high-level automation:7Interactive Management: The 7-inch Smart PRO version (optional) offers a full alphanumeric keyboard, Wi-Fi connectivity, and 21 CFR Part 11 compliance, making it perfect for strictly regulated pharmaceutical environments.8Massive Workload: The standard unit supports a total workload of 300 kg, with each reinforced shelf capable of holding 100 kg.9 This makes it suitable for drying heavy machine parts, large batches of glassware, or construction materials.Safety & Mobility: Despite its size, the SLW 1000 is designed for the modern lab. It comes standard with heavy-duty castors for easy positioning and a door lock for sample security.10 It features Class 3.1 over-temperature protection (Smart PRO) to ensure the safety of both the operator and the samples.11+1Industrial Build Quality:The interior is crafted from high-grade acid-proof stainless steel (DIN 1.4301).12 To handle the high thermal energy of a 1000L chamber, the unit operates on a 400V power supply with a nominal power of 5500W.13 It includes a 14$emptyset$60 mm adjustable air-flap and a 15$emptyset$30 mm access port for external validation sensors.16+2Primary Applications:Industrial Manufacturing: Drying and curing of large-scale electronic components, wires, and papermaking machine parts.17Material Science: Thermal resistance analysis of bulky building materials and polymers.18Pharmaceutical Bulk Production: Large-batch drying of plant tissues and drug metabolism studies.19High-Volume Logistics: Preheating and sterilization of large-scale laboratory containers and equipment.

Datasheet

Specifications

POL-EKO SLW 1000 Drying Oven Specifications

The SLW 1000 is a large-scale industrial laboratory oven featuring forced air convection (fan-assisted). This model is designed for high-capacity drying and sterilization where uniform temperature distribution throughout the chamber is critical.

  • Air Convection: Forced (Fan-assisted)

  • Chamber Capacity: 1220 Liters

  • Working Capacity: 998 Liters (approx. 1005 L depending on configuration)

  • Temperature Range: +5°C above ambient to +300°C

  • Temperature Resolution: 0.1°C

  • Temperature Fluctuation at 105°C: ±0.6°C

  • Temperature Variation at 105°C: ±3.0°C

  • Over Temperature Protection: Class 2.0 (Smart) or Class 3.1 (Smart PRO)

  • Controller: Microprocessor PID

  • Display: 4.3″ touch screen (Smart) or 7″ touch screen (Smart PRO)

  • Internal Dimensions (W x H x D): 1040 x 1610 x 600 mm

  • External Dimensions (W x H x D): 1260 x 2000 x 880 mm

  • Shelves (Standard / Max): 6 / 22

  • Max. Shelf Workload: 30 kg (Standard) / 100 kg (Reinforced shelf version)

  • Max. Total Unit Workload: 300 kg

  • Interior Material: Acid-proof stainless steel (DIN 1.4301)

  • Housing Material: Powder coated sheet (Standard) or Stainless steel linen finish (IG version)

  • Connectivity: LAN and USB ports (Wi-Fi standard on Smart PRO)

  • Nominal Power: 5500 W

  • Voltage: 400V 3/N 50/60 Hz (Three-phase)

  • Weight: 307 kg to 330 kg (depending on final build)


Standard Equipment & Features

  • Forced Air Circulation: Equipped with a high-performance fan to ensure rapid heat-up times and excellent temperature stability across the large chamber.

  • Mobility: Built with heavy-duty castors for easier positioning despite its size.

  • Smart Controller: Provides 5 user programs with 6 segments each, a visual/sound alarm, and internal memory for data storage.

  • Smart PRO Controller (Upgrade): Offers 40 programs with up to 100 segments, user account management (5 users), and built-in Wi-Fi.

  • External Sensor Access: Includes a 30 mm diameter access port on the left side for introducing external validation sensors.
