Drying Oven SLN 75

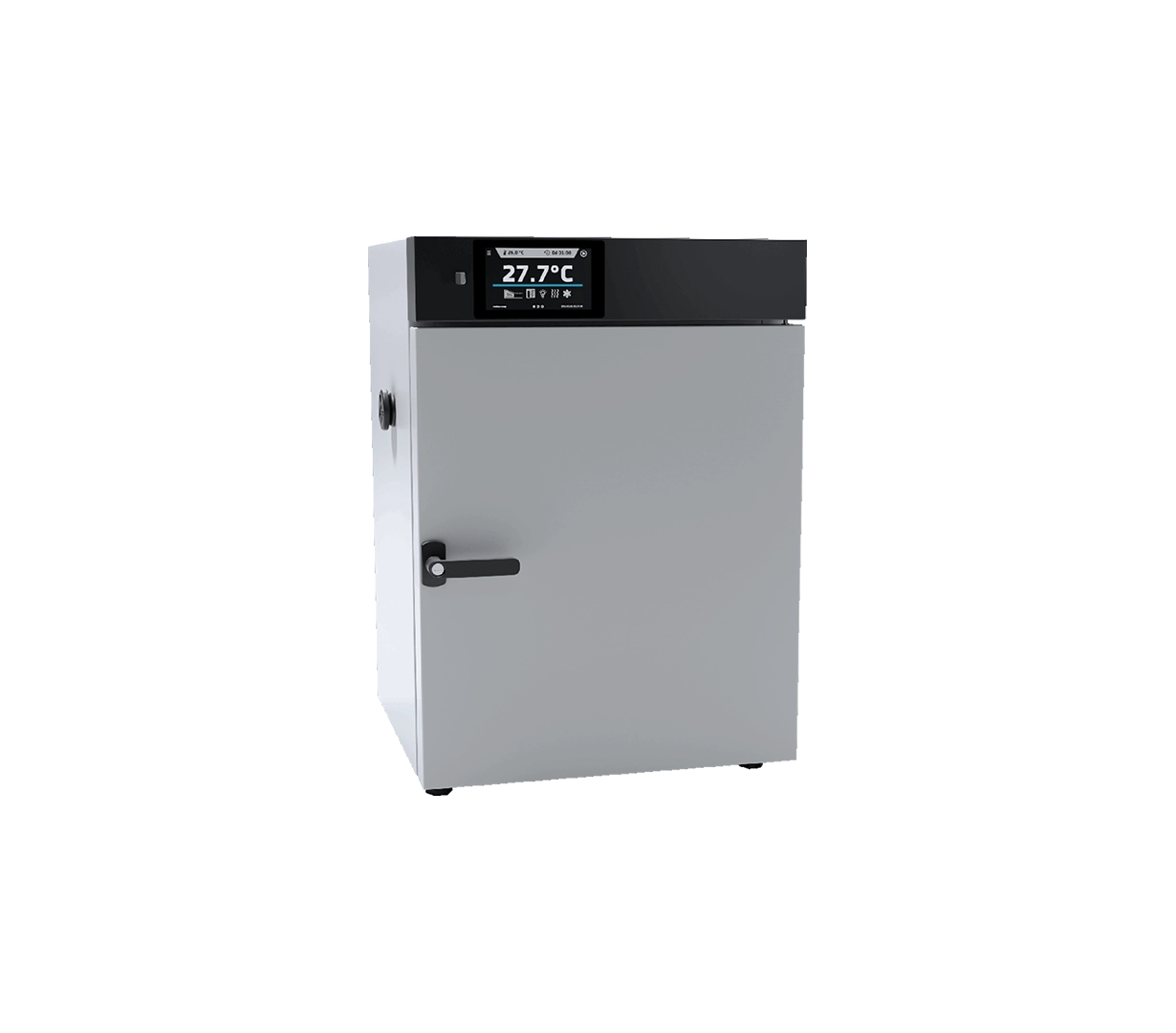

POL-EKO Laboratory Drying Oven SLN 75 The SLN 75 is a professional 75-liter laboratory drying oven designed for gentle thermal processing and glassware drying. Utilizing natural air convection and a temperature range of ambient +5?C to +300?C, it provides a stable heating environment that prevents the dispersal of light samples or powders. Equipped with the Smart 4.3-inch color touchscreen controller (or the advanced 7-inch Smart PRO), it offers intuitive multi-segment programming, an “Alarm Bar” for visual status monitoring, and integrated data logging via USB/LAN. Its high-grade acid-proof stainless steel interior and robust safety features make it a reliable partner for daily laboratory operations.

SKU: SLN 75 Categories: , Brand: Product ID: 21658

Description

The POL-EKO SLN 75 is engineered for laboratories that require consistent, repeatable results in a mid-sized format.5 Its 75-liter internal capacity provides ample space for drying large batches of glassware or performing long-term stability tests. The Natural Convection (N) system is a critical advantage for users working with fine powders, sensitive biological tissues, or light electronic components; because air circulates solely via gravity and thermal buoyancy without the use of a fan, there is no risk of sample dispersal or cross-contamination caused by high-velocity air currents.6+1Intelligent Control & Data Security:The SLN 75 is available with two controller tiers to fit your lab’s specific compliance needs:7Smart Controller: Features a 4.3-inch touchscreen, 5 user programs, and a built-in event registry.8Smart PRO (Optional): Upgrades to a 7-inch touchscreen, supporting up to 40 programs, 100 segments per program, and 21 CFR Part 11 compliance with a full audit trail.Safety First: Both versions include Class 2.0 (Smart) or Class 3.1 (Smart PRO) over-temperature protection according to DIN 12880, along with an open-door alarm and a physical door lock.9At-a-Glance Monitoring: The signature “Alarm Bar” light strip allows technicians to check the oven’s status (Heating, Stable, or Alarm) from across the room.10Industrial-Grade Build:The interior chamber is crafted from acid-proof stainless steel (DIN 1.4301), designed for easy cleaning and high resistance to corrosive chemicals.11 The unit includes a 12$emptyset$30 mm access port on the left side for external sensors and an adjustable 13$emptyset$40 mm air-flap for moisture removal.14 For facilities requiring higher aesthetics or extreme durability, the unit is available in a “linen finish” stainless steel exterior (IG version).+1Primary Applications:General Laboratory Work: Efficient drying of glassware, tools, and metal components.15Biotechnology & Pharma: Digestion of proteins, plant tissue drying, and drug metabolism tests.16Industrial Testing: Aging tests for electronics and thermal resistance analysis of building materials.17Quality Control: Preheating of samples and curing of specialized coatings or plastics.18

Datasheet

Specifications

POL-EKO SLN 75 Drying Oven Specifications

The SLN 75 is a high-precision laboratory drying oven with natural air convection. It provides a 76-liter capacity and is commonly used for drying, sterilization, and heating of samples that require a stable environment without fan-driven air movement.

  • Air Convection: Natural (Gravity)

  • Chamber Capacity: 76 Liters

  • Working Capacity: 76 Liters

  • Temperature Range: +5°C above ambient to +300°C

  • Temperature Resolution: 0.1°C

  • Temperature Protection: Class 2.0 (Smart) or Class 3.1 (Smart PRO) according to DIN 12880

  • Controller: Microprocessor PID

  • Display: 4.3″ touch screen (Smart) or 7″ touch screen (Smart PRO)

  • Internal Dimensions (W x H x D): 400 x 530 x 350 mm

  • External Dimensions (W x H x D): 600 x 850 x 620 mm

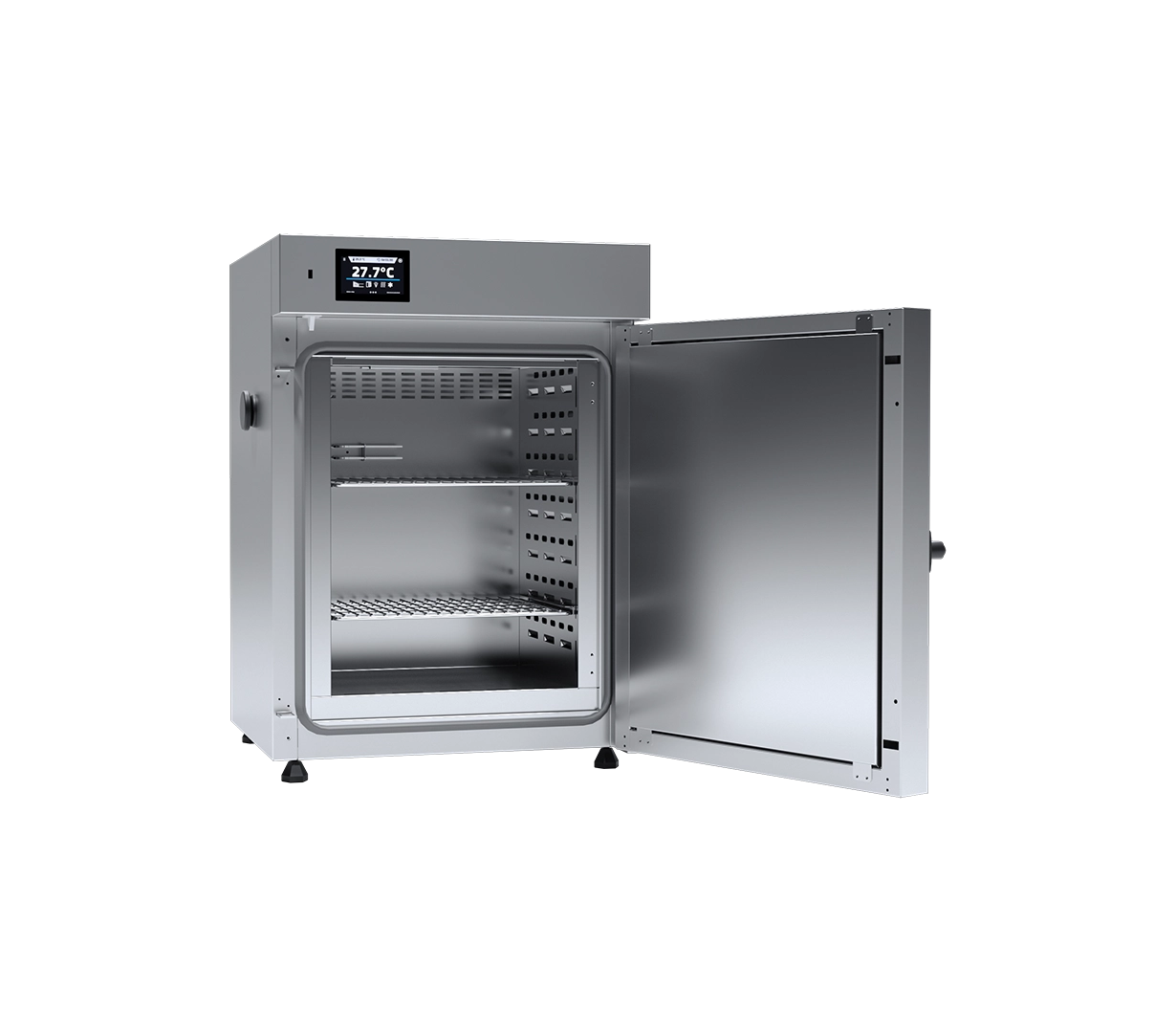

  • Shelves (Standard / Max): 2 / 5

  • Max. Shelf Workload: 25 kg (50 kg for reinforced version)

  • Max. Total Unit Workload: 40 kg (80 kg for reinforced version)

  • Interior Material: Acid-proof stainless steel (DIN 1.4301)

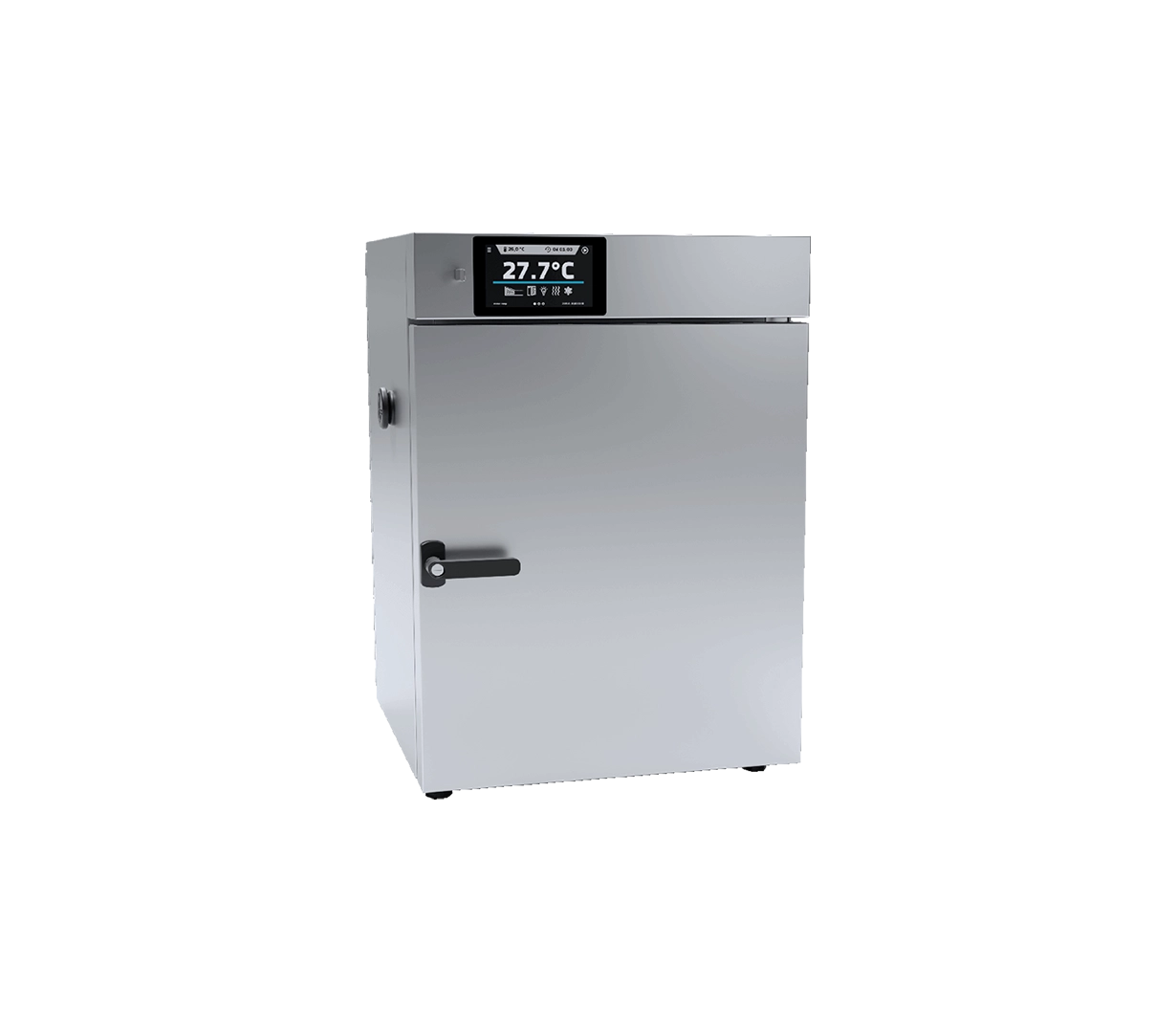

  • Housing Material: Powder coated sheet (Standard) or Stainless steel linen finish (IG version)

  • Connectivity: LAN and USB ports (Wi-Fi included on Smart PRO)

  • Nominal Power: 1700 W

  • Voltage: 230V, 50/60 Hz

  • Weight: 60 kg


Key Features

  • Quiet and Gentle: Natural convection ensures quiet operation and prevents the displacement of powdery or light samples during the drying process.

  • Smart Monitoring: Standard equipment includes an open door alarm, a door lock, and an access port (Ø30 mm) on the left side for external sensor validation.

  • Data Management: The internal memory records temperature data and events (like door openings), which can be downloaded via USB or monitored over a LAN network.

  • Safety Class: Includes automatic thermal protection to prevent overheating, with the PRO version offering the higher Class 3.1 security standard.
