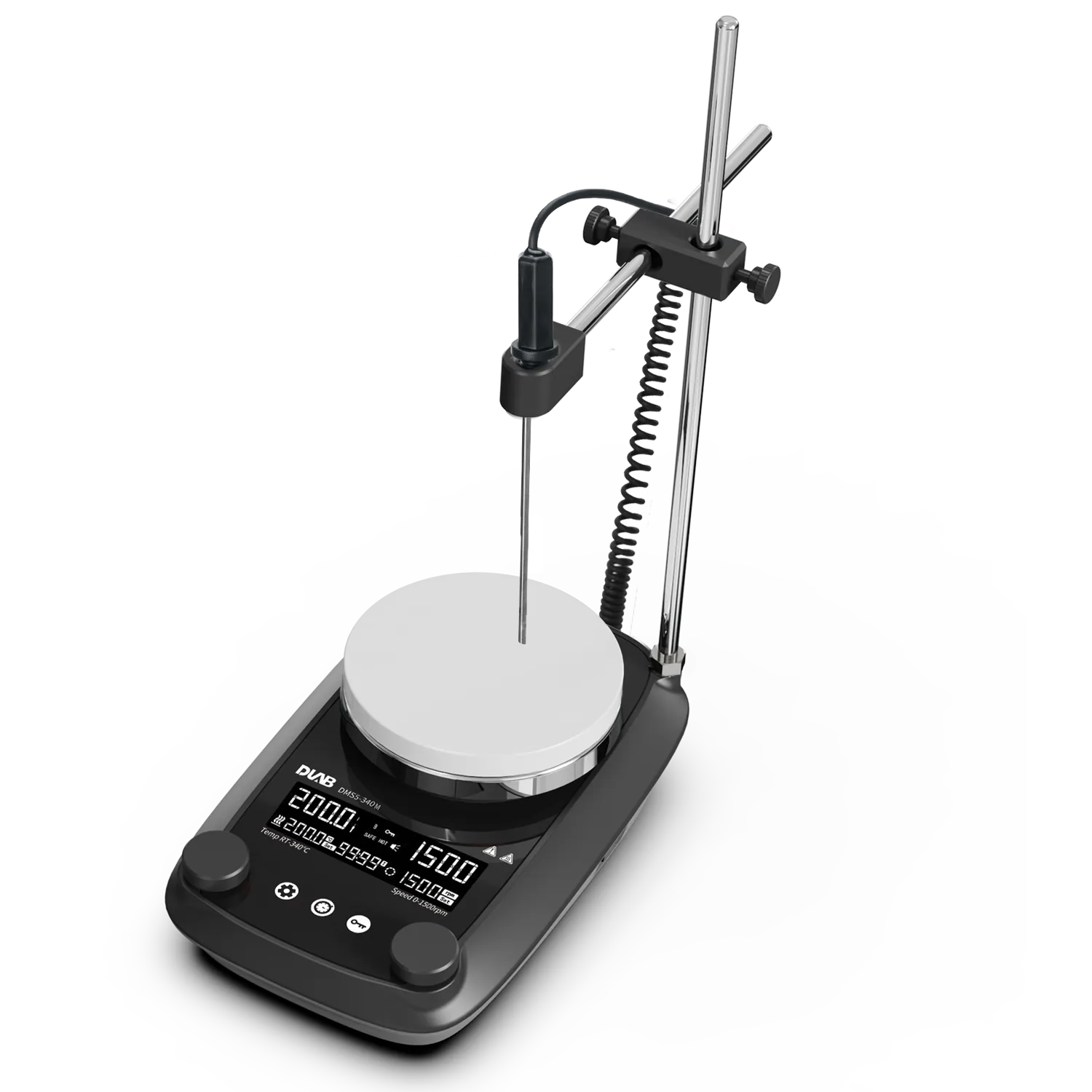

DMS5-340M LCD Strong Magnetic Heating Magnetic Stirrer with Timer

DMS5-340M LCD Strong Magnetic Heating Magnetic Stirrer with Timer

The DMS5?340M LCD Strong Magnetic Heating Magnetic Stirrer with Timer is a robust laboratory instrument that combines powerful magnetic stirring and controlled heating up to 340??C. It features an intuitive LCD display for real?time monitoring of speed, temperature, and time, making it ideal for chemistry, biology, and research applications.

Add to WishlistRemove from Wishlist
Add to Wishlist
SKU: 8021532210(Main Unit)/8121532210(Set) Categories: , , Brand: Product ID: 21988

Description

The DMS5?340M LCD Strong Magnetic Heating Magnetic Stirrer with Timer delivers high?performance stirring and precise temperature control for demanding laboratory tasks. Designed with a strong magnetic field and brushless DC motor, it provides stable stirring even with viscous liquids, while the ceramic?coated aluminum work plate offers excellent corrosion resistance and easy cleaning. The clear LCD screen shows current and set values for stirring speed, temperature, and timer, and the programmable timer ranges from 1?minute up to 99?hours and 59?minutes for versatile experiment control. Safety features include dual protection circuits, overheating protection, a ?HOT? warning indicator, and a safety lock to prevent accidental setting changes. With a capacity to handle up to 20?L of liquid and wide voltage compatibility, this stirrer is well?suited for use in research labs, quality control facilities, and educational environments.

Datasheet

Download DMS5-340M LCD Strong Magnetic Heating Magnetic Stirrer with Timer Datasheet

Specifications

DMS5-340M LCD Strong Magnetic Heating Magnetic Stirrer Specifications

  • Work Plate Dimension: 135 mm diameter (5 inch)

  • Work Plate Material: Aluminum with ceramic coating

  • Motor Type: Brushless DC motor (spark-free, maintenance-free)

  • Motor Rating Output: 10 W

  • Stirring Positions: 1

  • Max. Stirring Quantity (H2O): 20 Liters

  • Max. Magnetic Bar Length: 80 mm

  • Magnetic Feature: Enhanced “Strong Magnetic” field optimized for viscous samples

  • Speed Range: 50 – 1500 rpm

  • Speed Display: LCD

  • Speed Resolution: ±1 rpm

  • Heating Temperature Range: Room Temperature to 340°C

  • Temperature Increment: 1°C

  • Temperature Control Accuracy: ±1°C (< 100°C) and ±1% (> 100°C)

  • Temperature Display Accuracy: ±0.1°C

  • External Temperature Sensor: PT1000 compatible (Accuracy ±0.2°C)

  • Overheating Protection: 420°C (automatic cutoff)

  • “Hot” Warning Indicator: Flashes above 50°C (active even after power-off)

  • Timer Function: 1 minute to 99 hours 59 minutes

  • Timer Behavior: Heating stops at zero; stirring continues to ensure uniform cooling

  • Heating Modes: 3 selectable modes (A: Rapid, B: Standard, C: Stable)

  • Data Connector: RS232 (for PC control and data logging)

  • Protection Class: IP42

  • Heating Output: 600 W

  • Total Power: 650 W

  • Voltage/Frequency: 100-120V / 200-240V, 50/60 Hz

  • Dimensions (W x D x H): 270 x 175 x 98 mm

  • Weight: 2.2 kg

  • Permissible Ambient Temperature: 5 to 40°C

  • Permissible Relative Humidity: 80% RH
