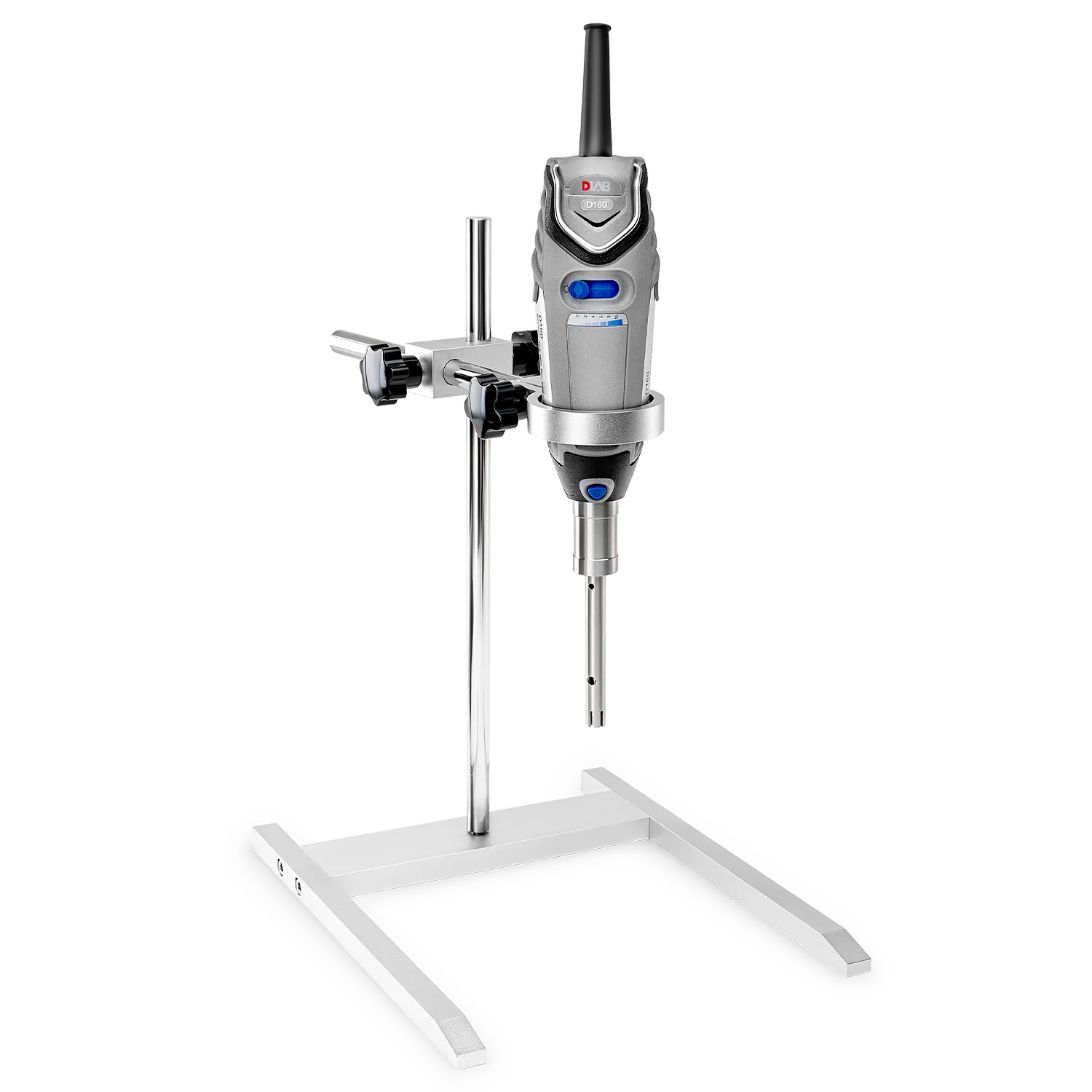

D-160 Handheld Homogenizer

The D?160 Handheld Homogenizer is a lightweight, ergonomic lab instrument designed for rapid and efficient sample homogenization, emulsification, and mixing. It operates at high speeds with interchangeable 316L stainless steel dispersing shafts, making it ideal for small?volume sample preparation in research and clinical labs.

SKU: D-160 Categories: , , Brand: Product ID: 22029

Description

The D?160 Handheld Homogenizer is a high?speed rotor?stator homogenizer engineered for reliable and quick sample processing in laboratory environments. It supports adjustable speeds from approximately 8,000 to 32,000?rpm with a 10?stage control dial that enables precise processing for different sample types. Lightweight and ergonomically designed, this homogenizer is easy to handle manually and suitable for volumes ranging from about 0.1?mL to 250?mL depending on the dispersing shaft used. The fully autoclavable 316L stainless steel shafts with PTFE components resist corrosion and allow for easy dismantling and cleaning, supporting contamination?free workflows. With a robust motor, compact form factor, and safety?oriented design, the D?160 is ideal for emulsifying, suspending, disrupting, and homogenizing biological, chemical, and industrial samples in research, clinical, pharmaceutical, and biotechnology applications.

Datasheet

Specifications

D-160 Handheld Homogenizer Specifications

  • Motor Type: Universal carbon brush motor

  • Power Input: 160 W

  • Power Output: 110 W

  • Speed Range: 8,000 – 30,000 rpm

  • Speed Control: 6-stage dial adjustment

  • Maximum Linear Velocity: 6.3 – 14 m/sec

  • Processing Volume (with 5mm shaft): 0.1 – 50 mL

  • Processing Volume (with 10mm shaft): 1 – 250 mL

  • Maximum Viscosity: 5,000 mPas

  • Shaft Material: 316L Stainless Steel / PTFE

  • Drive Weight: 0.6 kg

  • Drive Dimensions: 46 mm x 55 mm x 230 mm

  • Noise Level: 72 dB(A)

  • Operating Temperature: 0 to 40°C

  • Permissible Relative Humidity: 80%

  • Protection Class: IP20

  • Voltage Options: 110-120V 60Hz or 220-240V 50-60Hz

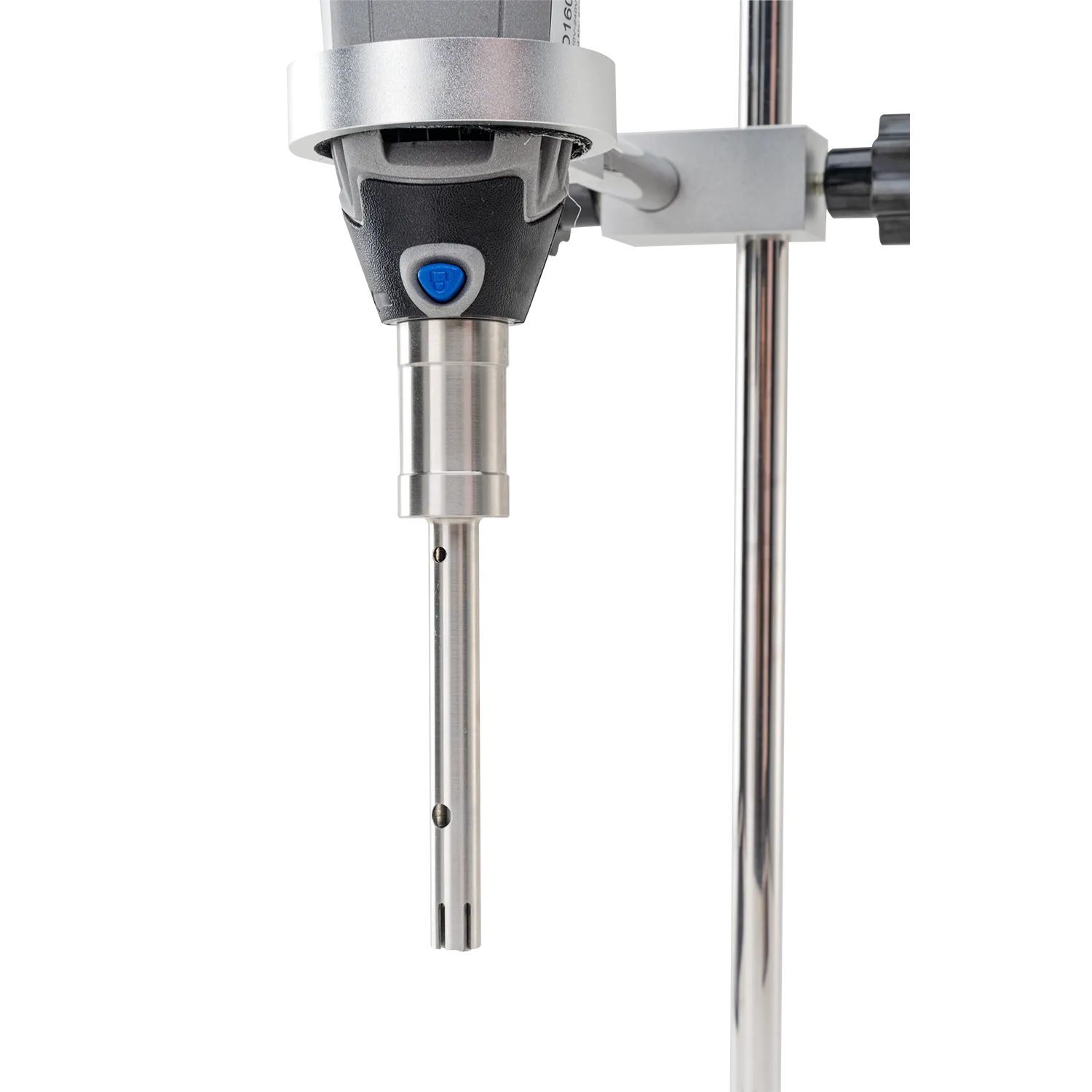

Shaft Accessory Details

  • DS-160/5 Shaft: Processing volume 0.1 to 50 mL, maximum immersion depth 45 mm, suitable for microtubes.

  • DS-160/10 Shaft: Processing volume 1 to 250 mL, maximum immersion depth 120 mm, suitable for standard test tubes and small beakers.
