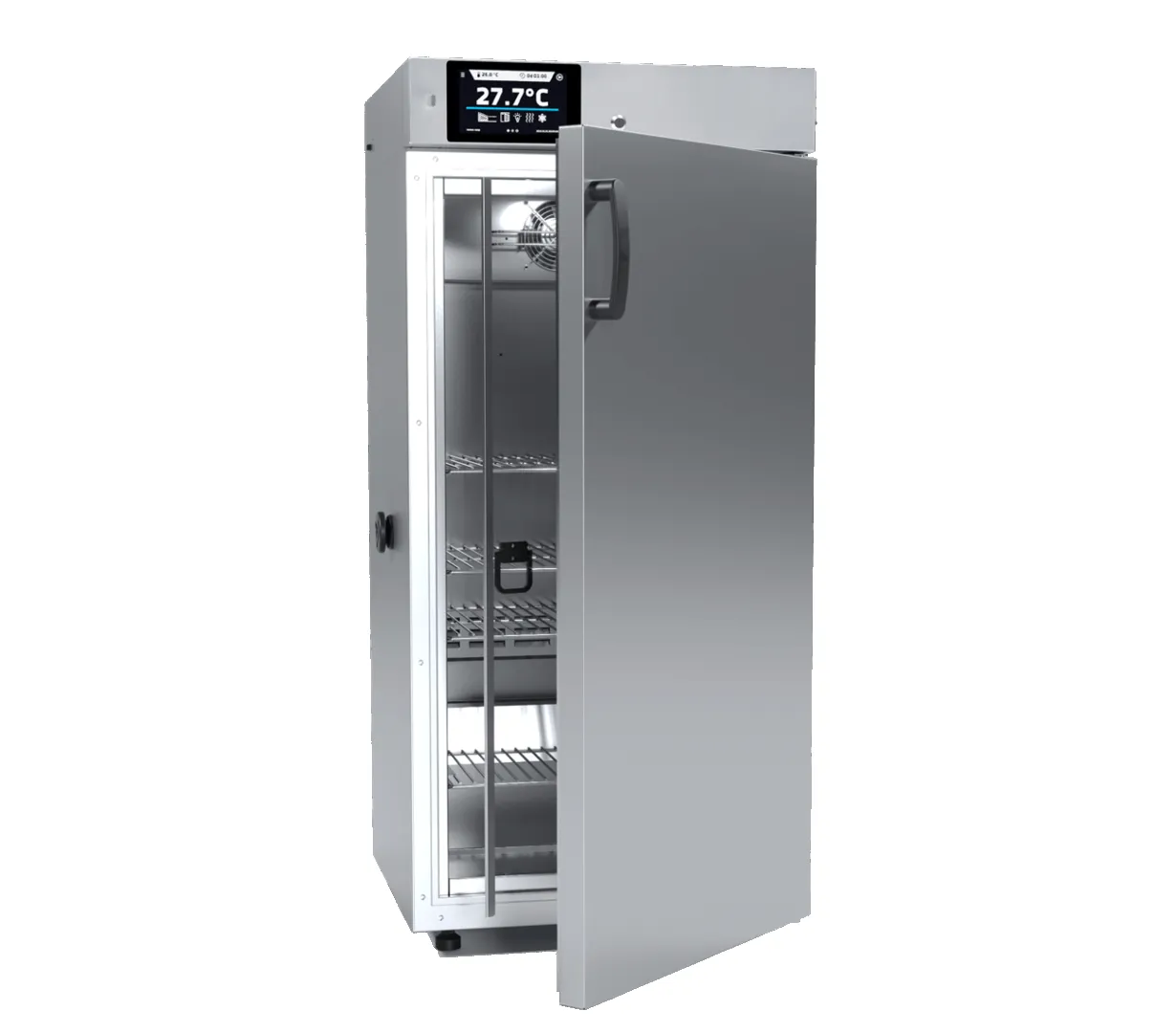

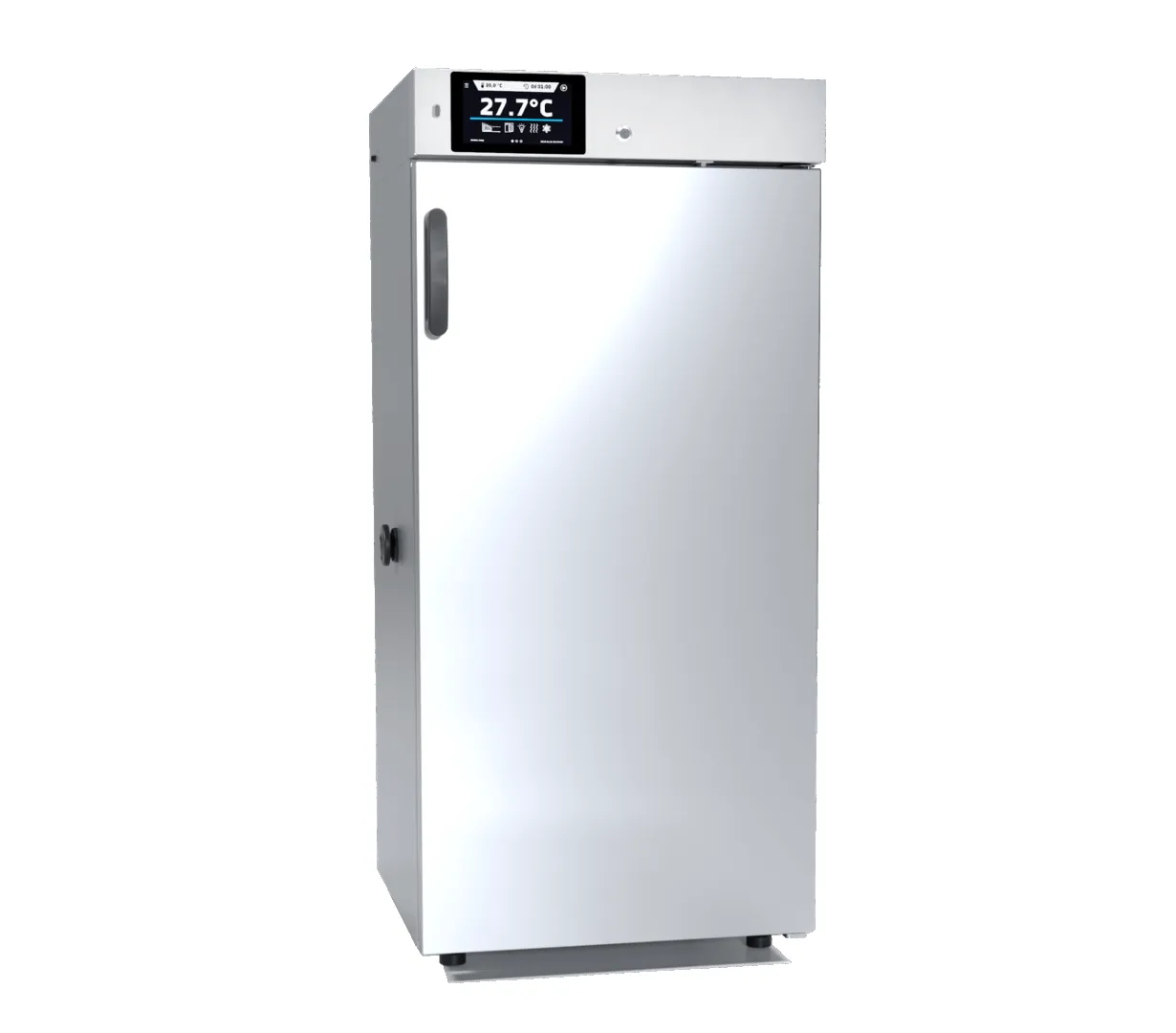

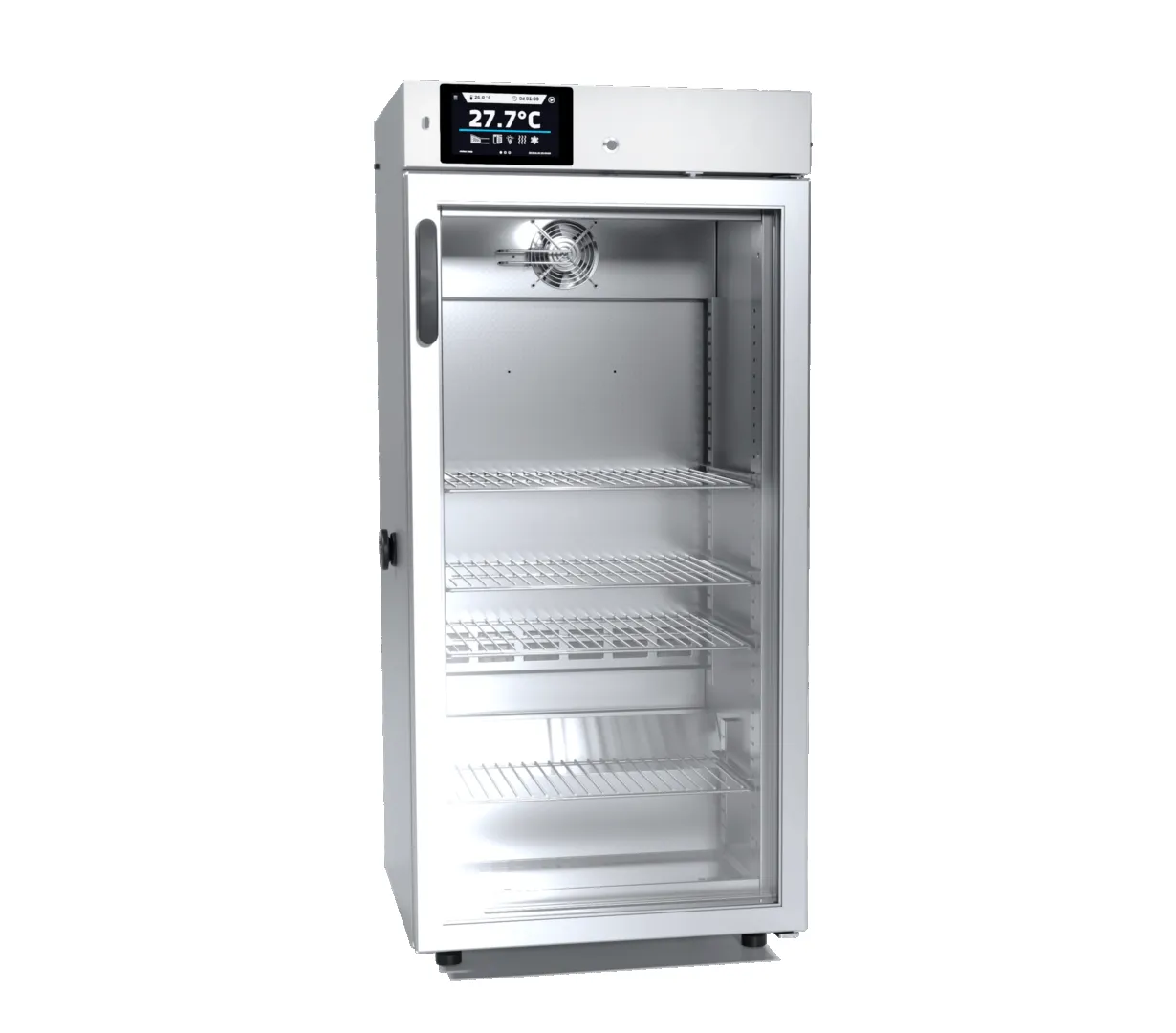

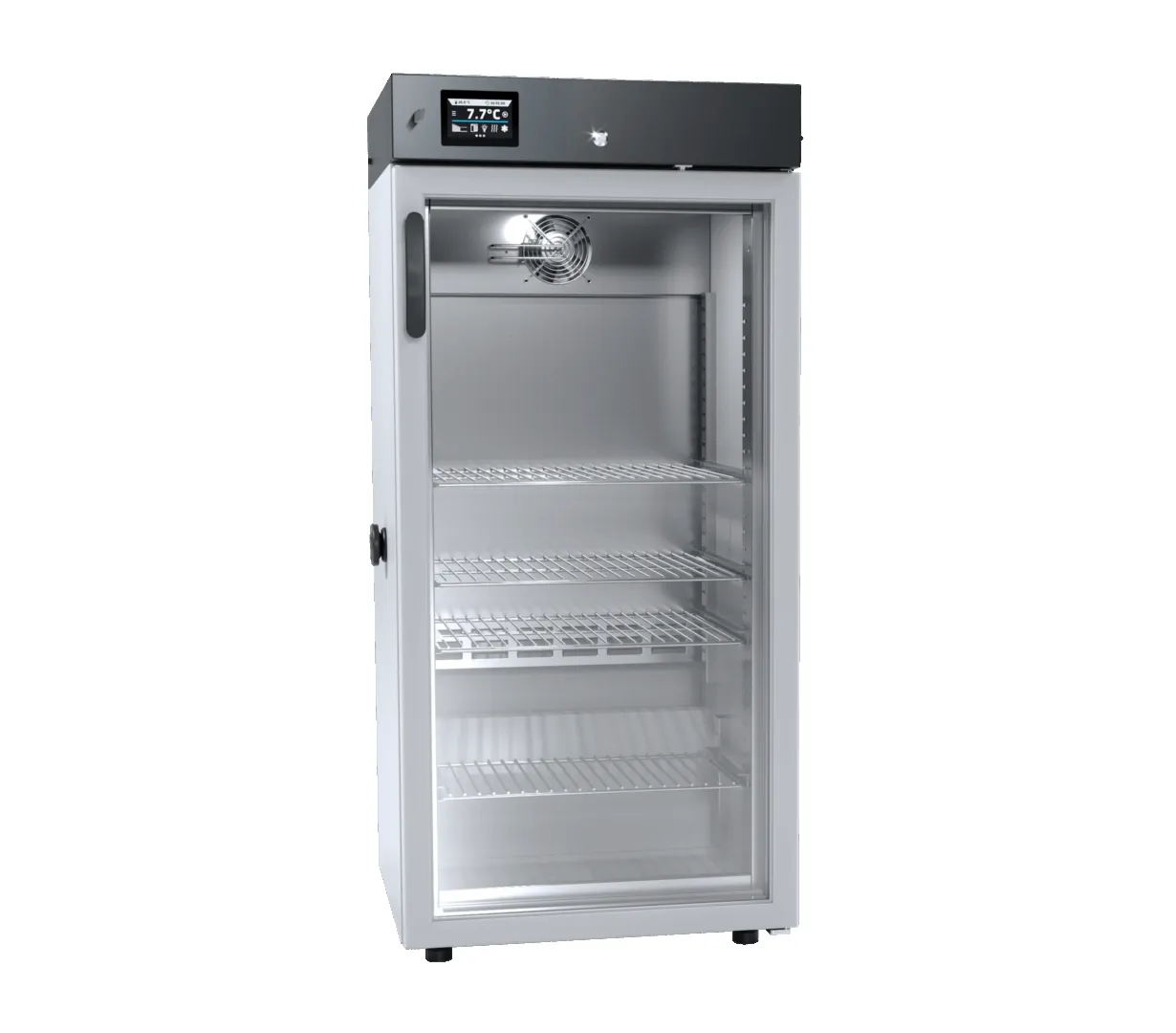

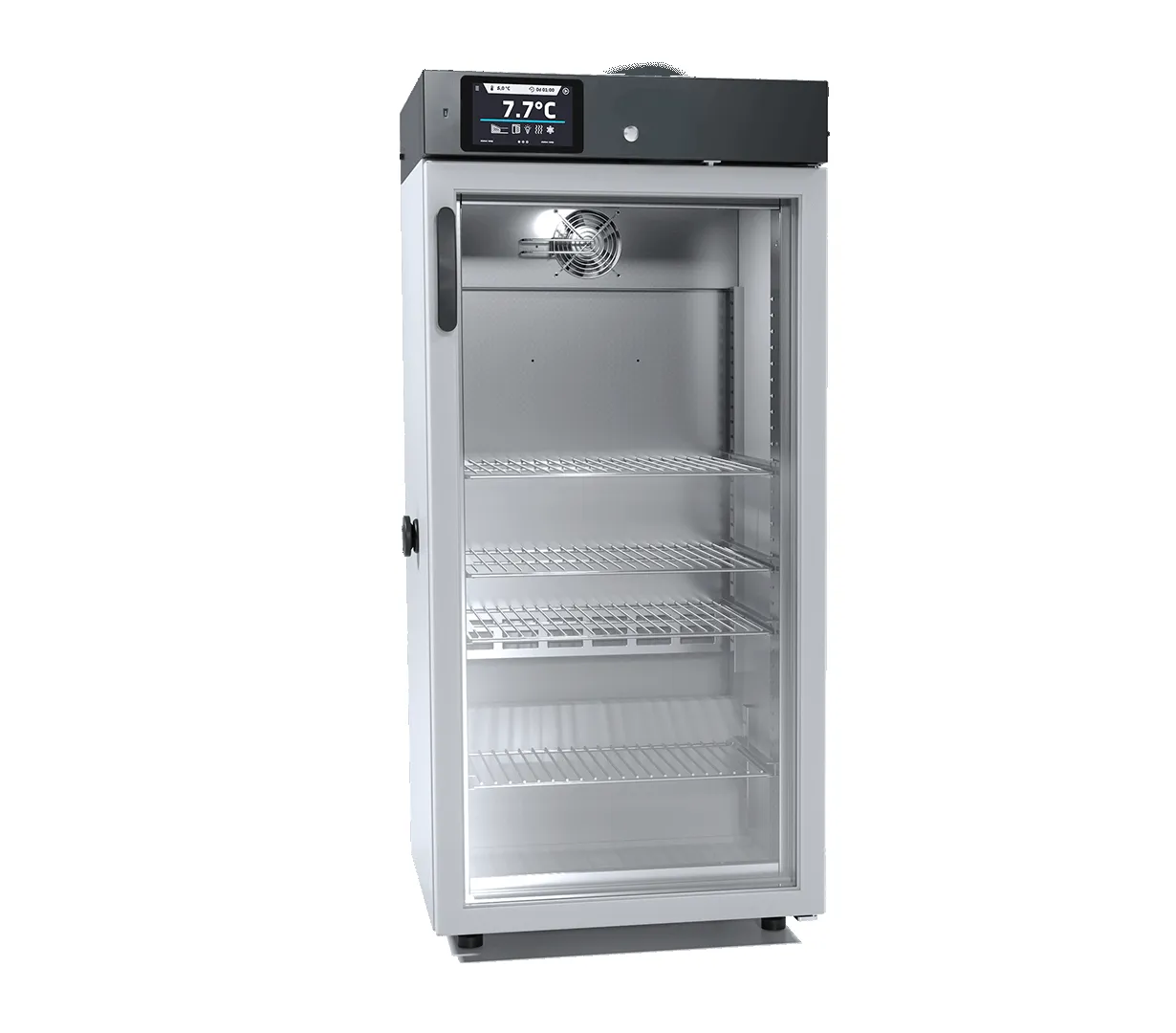

Cooled Incubator ST 4

The POL-EKO ST 4 is a high-capacity 250-liter cooled incubator designed for demanding laboratory applications such as BOD determination, microbiological research, and stability testing. Featuring a forced air convection system and a standard temperature range of +3?C to +40?C (expandable to +70?C with the Smart PRO controller), it provides a generous 203-liter working capacity. Equipped with an intuitive color touch-screen controller and a robust interior, it offers a stable and secure “Perfect Environment” for large-scale sample incubation.

Description

The Cooled Incubator ST 4 is a professional-grade thermostatic solution engineered by POL-EKO to provide exceptional temperature stability regardless of ambient conditions. With its 250-liter chamber capacity, this model is a popular choice for laboratories requiring significant storage for BOD5 tests, seedling germination, and the controlled storage of chemical reagents or pharmaceuticals.

The unit utilizes a microprocessor-based PID controller and forced air convection with adjustable fan speeds to ensure high temperature uniformity and rapid recovery after door openings. While the standard Smart controller provides a range of +3?C to +40?C, the Smart PRO version extends this performance up to +70?C. The ST 4 also includes an automatic defrosting function and comprehensive alarms for temperature sensor failure and open doors to safeguard your research.

Depending on your workflow and data management needs, the ST 4 is available with two controller options:

Smart Controller: Features a 4.3-inch color touch screen, memory for 5 user programs, and USB/LAN ports for easy data transfer.

Smart PRO Controller: Offers a larger 7-inch color touch screen, Wi-Fi connectivity, and advanced administrative functions including multi-level user access and 40-segment programming.Both interfaces are designed for operation with gloves and include an intuitive Alarm Bar for immediate visual status updates.

The ST 4 is built for long-term durability, featuring an interior made of stainless steel (DIN 1.4016) for Comfort models or acid-resistant stainless steel (DIN 1.4301) for Premium models. Standard equipment includes 4 stainless steel wire shelves (expandable to 6), a physical door lock, and a ?30 mm access port. For specialized light-sensitive research, the unit can be equipped with the FOT photoperiodic system for day and night simulation.

Datasheet

Specifications

Pol-Eko ST 4 (Cooled Incubator)

The ST 4 is a mid-sized, freestanding thermostatic cabinet with a 250-liter capacity. It is designed for laboratory applications requiring stable temperature control, such as BOD determination and microbiological incubation.

  • Chamber Capacity: 259 Liters


  • Working Capacity: 212 Liters


  • Air Convection: Forced


  • Temperature Range (Smart): +3 to +40°C (Optional: Up to +70°C)


  • Temperature Range (Smart PRO): +3 to +70°C


  • Temperature Resolution: 0.1°C


  • Temperature Fluctuation (at 37°C): +/- 0.3°C


  • Temperature Variation (at 37°C): +/- 0.6°C


  • Temperature Protection:

    • Smart: Class 1.0 (Standard) / Class 3.3 (Optional)


    • Smart PRO: Class 3.3 (Standard)


  • Internal Dimensions (W x H x D): 480 x 1060 x 420 mm


  • External Dimensions (W x H x D): 610 x 1300 x 650 mm


  • Shelves (Standard / Max): 4 / 6


  • Max Shelf Workload: 10 kg


  • Max Unit Workload: 50 kg


  • Controller: Smart (4.3″ touch screen) or Smart PRO (7″ touch screen)


  • Connectivity:

    • Smart: LAN, USB


    • Smart PRO: Wi-Fi, LAN, USB


  • Interior Material:

    • Comfort (C): Stainless steel (DIN 1.4016)


    • Premium (P): Acid-proof stainless steel (DIN 1.4301)


  • Nominal Power: 250 W


  • Refrigerant: R1234ze (GWP=7)


  • Net Weight: 82 kg


  • Standard Accessories: Internal LED light, Ø30 mm access port (left side), door lock, open door alarm.
