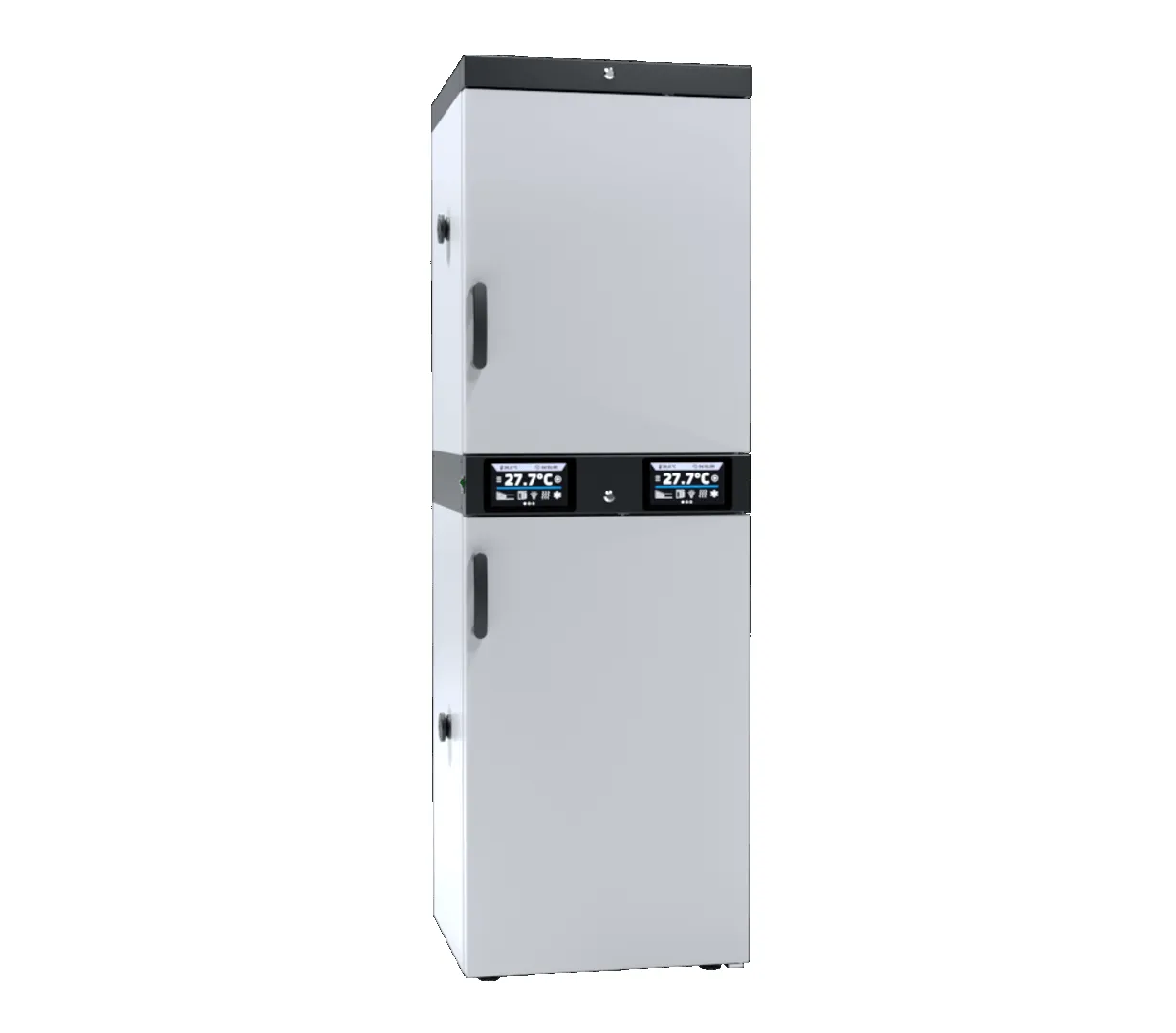

Cooled Incubator ST 2/3

Cooled Incubator ST 2/3

Short Description The POL-EKO ST 2/3 is a high-versatility dual-chamber cooled incubator, uniquely combining a 150-liter upper chamber and a larger

Add to WishlistRemove from Wishlist
Add to Wishlist
SKU: ST 2/3 Categories: , Brand: Product ID: 21384

Description

The Cooled Incubator ST 2/3 is a specialized multi-chamber solution from POL-EKO designed for laboratories that need to balance space efficiency with diverse capacity requirements. By pairing two of the most popular chamber sizes (150L and 200L), the ST 2/3 offers 350 liters of total volume while maintaining the footprint of a single upright incubator. This setup allows researchers to process large-batch experiments in the lower 200-liter zone while concurrently managing smaller, specialized trials in the upper 150-liter zone.

Independent Multi-Zone Precision Each chamber functions as an entirely standalone thermostatic unit. Each has its own dedicated microprocessor PID controller and forced air convection system, ensuring that the environment in one chamber remains undisturbed by door openings or parameter changes in the other. Both zones offer a standard range of +3?C to +40?C, with an optional extension to +70?C available for high-temperature incubation. The unit includes an automatic defrosting function and independent LED lighting for both compartments.

Smart Control and Customization The ST 2/3 can be tailored with two distinct controller options for either chamber:

Smart Controller: Features a 4.3-inch color touch screen, memory for 5 user programs, and integrated LAN/USB ports for straightforward data transfer.

Smart PRO Controller: A premium 7-inch color touch screen with Wi-Fi connectivity, multi-user management (Admin, User, Super Admin), and 40-segment programming for complex time-temperature simulation. Both controllers are designed for operation with gloves and feature a quick-status “Alarm Bar” for immediate visual awareness of both zones.

Robust Build and Safety Constructed for long-term professional use, the ST 2/3 is available with a stainless steel (DIN 1.4016) interior for Comfort models or acid-resistant stainless steel (DIN 1.4301) for Premium models. The unit comes standard with 3 stainless steel wire shelves in each chamber (6 total, expandable to 4 per zone) and individual physical door locks. For specialized light-sensitive research, either chamber can be equipped with the FOT photoperiodic system for advanced day/night simulation

Datasheet

Download ST 2/3 Smart Datasheet

Download ST 2/3 Smart PRO  Datasheet

Specifications

Pol-Eko ST 2/3 (Cooled Incubator)

The ST 2/3 is a multi-chamber unit featuring two independent thermostatic chambers stacked vertically: a mid-sized upper chamber (ST 2) and a larger lower chamber (ST 3). Each chamber is controlled by its own independent microprocessor, allowing for separate temperature settings and programs.



  • Total Chamber Capacity: 350 Liters (150L + 200L)

  • Total Working Capacity: 285 Liters (122L + 163L)

  • Air Convection: Forced (in each chamber)



  • Temperature Range (Smart): +3 to +40°C (Optional: +3 to +70°C)



  • Temperature Range (Smart PRO): +3 to +70°C



  • Temperature Resolution: 0.1°C



  • Temperature Fluctuation (at 37°C): +/- 0.3°C

  • Temperature Variation (at 37°C): +/- 0.5°C to 0.6°C

  • Temperature Protection: * Smart: Class 1.0 (Standard) / Class 3.3 (Optional)



    • Smart PRO: Class 3.3 (Standard)



  • Internal Dimensions – Upper (ST 2): 480 x 660 x 420 mm

  • Internal Dimensions – Lower (ST 3): 480 x 860 x 420 mm

  • External Dimensions (W x H x D): 600 x 1930 x 650 mm

  • Shelves (Standard / Max): 2 x 3 / 4

  • Max Shelf Workload: 10 kg



  • Max Unit Workload: 30 kg (Upper) / 40 kg (Lower)

  • Controller: Two independent controllers (Smart or Smart PRO)



  • Interior Material: * Comfort (C): Stainless steel (DIN 1.4016)



    • Premium (P): Acid-proof stainless steel (DIN 1.4301)



  • Nominal Power: 500 W

  • Refrigerant: R1234ze (GWP=1)

  • Net Weight: 114 kg



  • Standard Accessories: Internal LED light (per chamber), Ø30 mm access ports, door locks, open door alarms.
