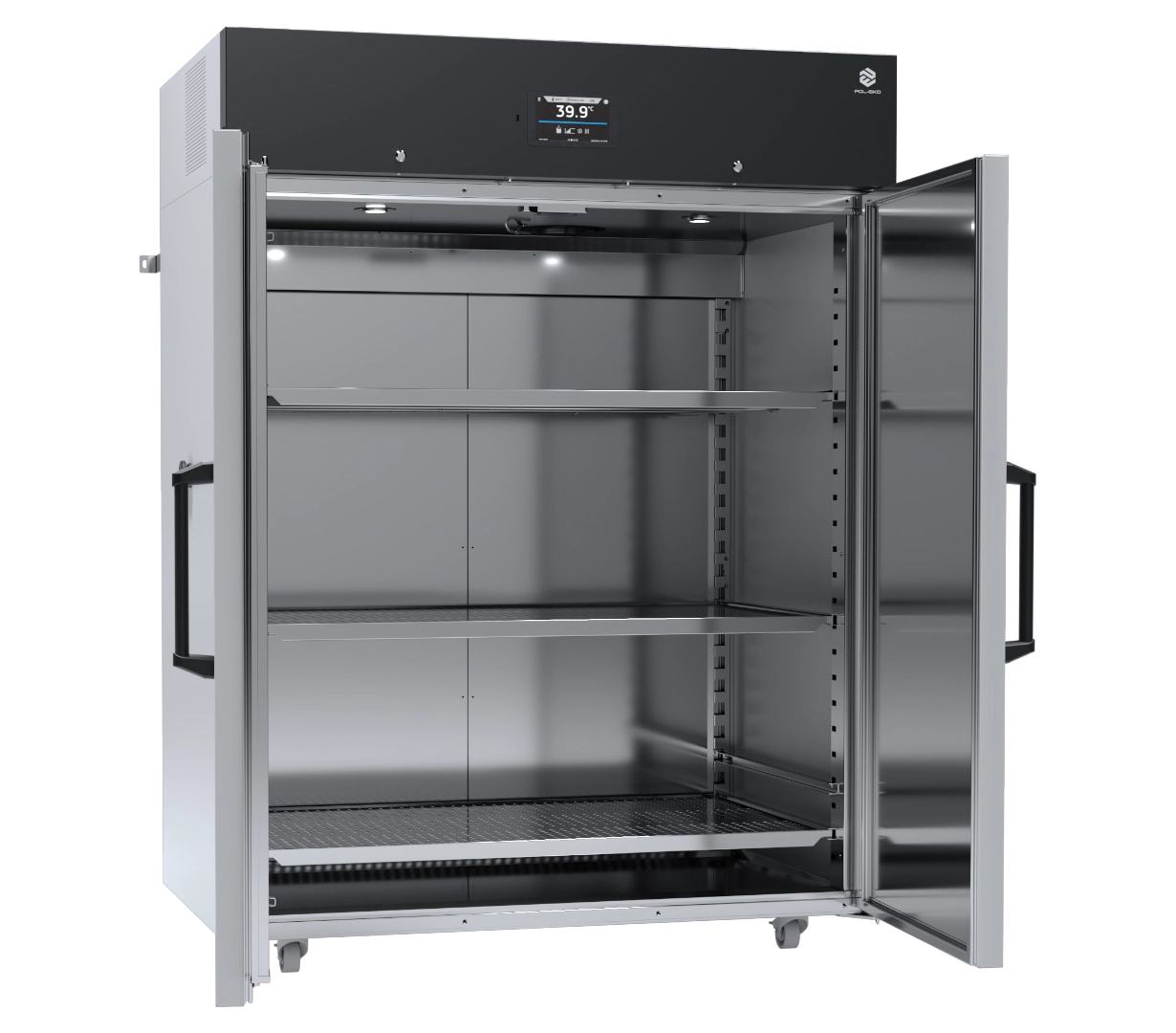

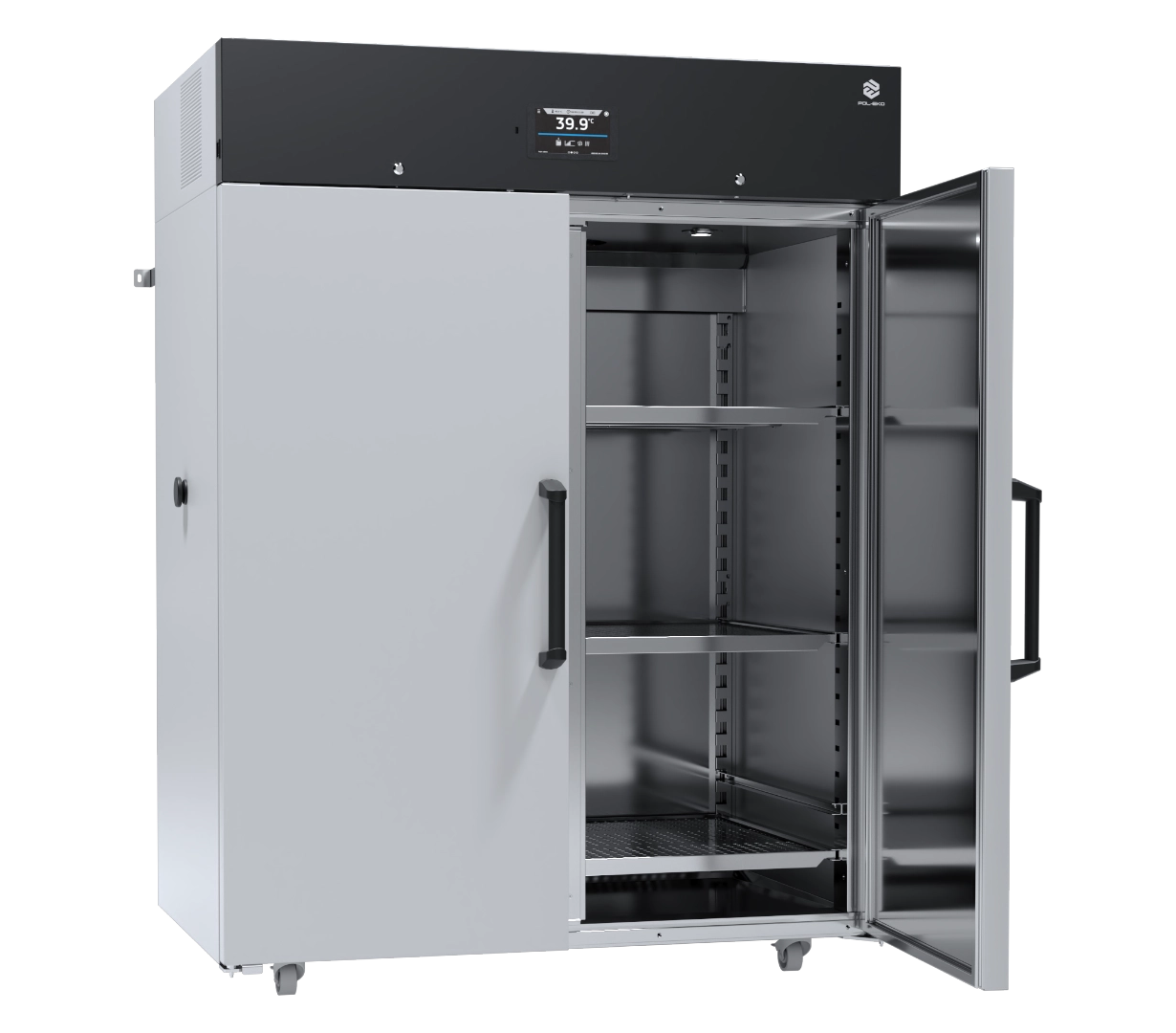

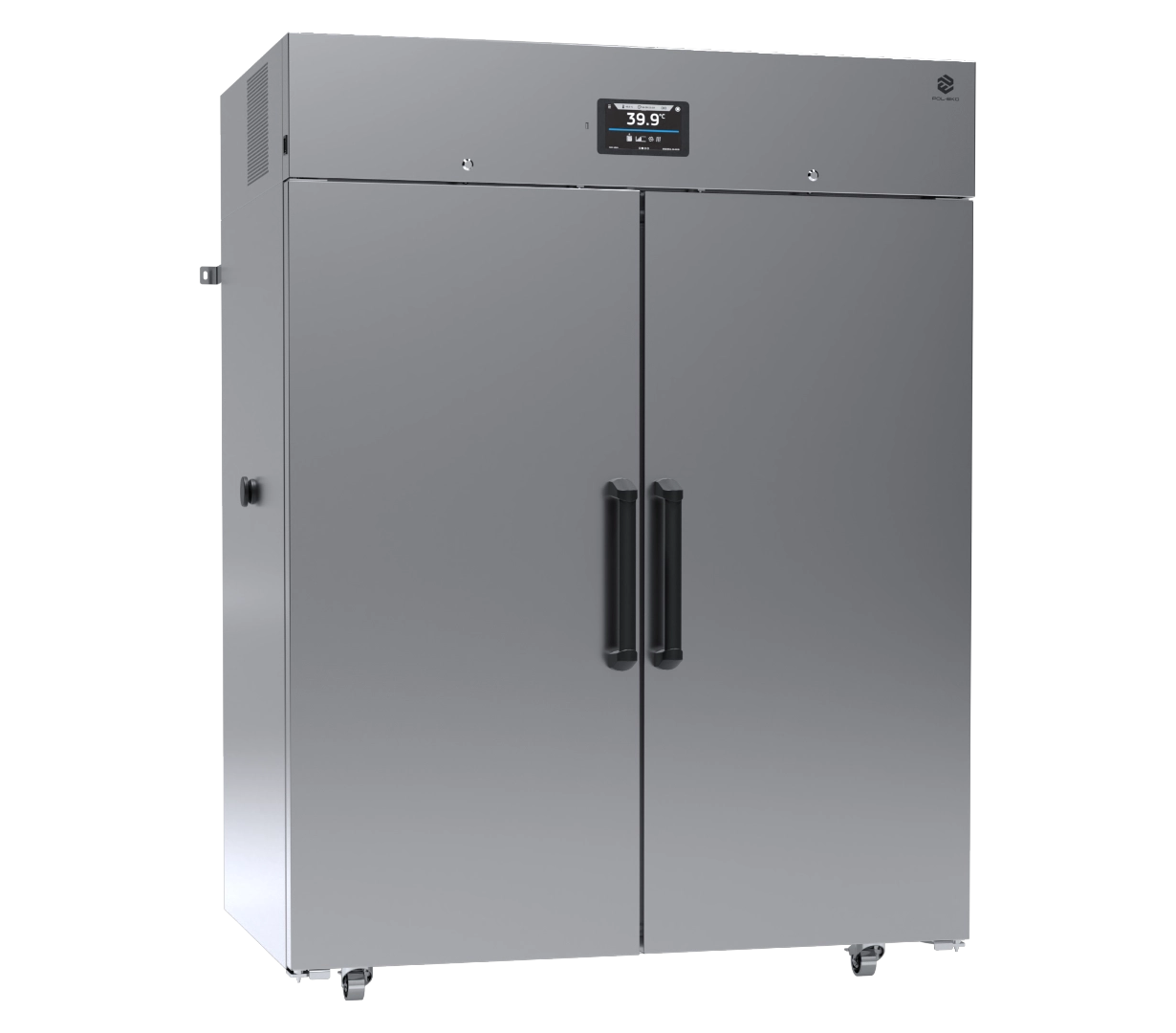

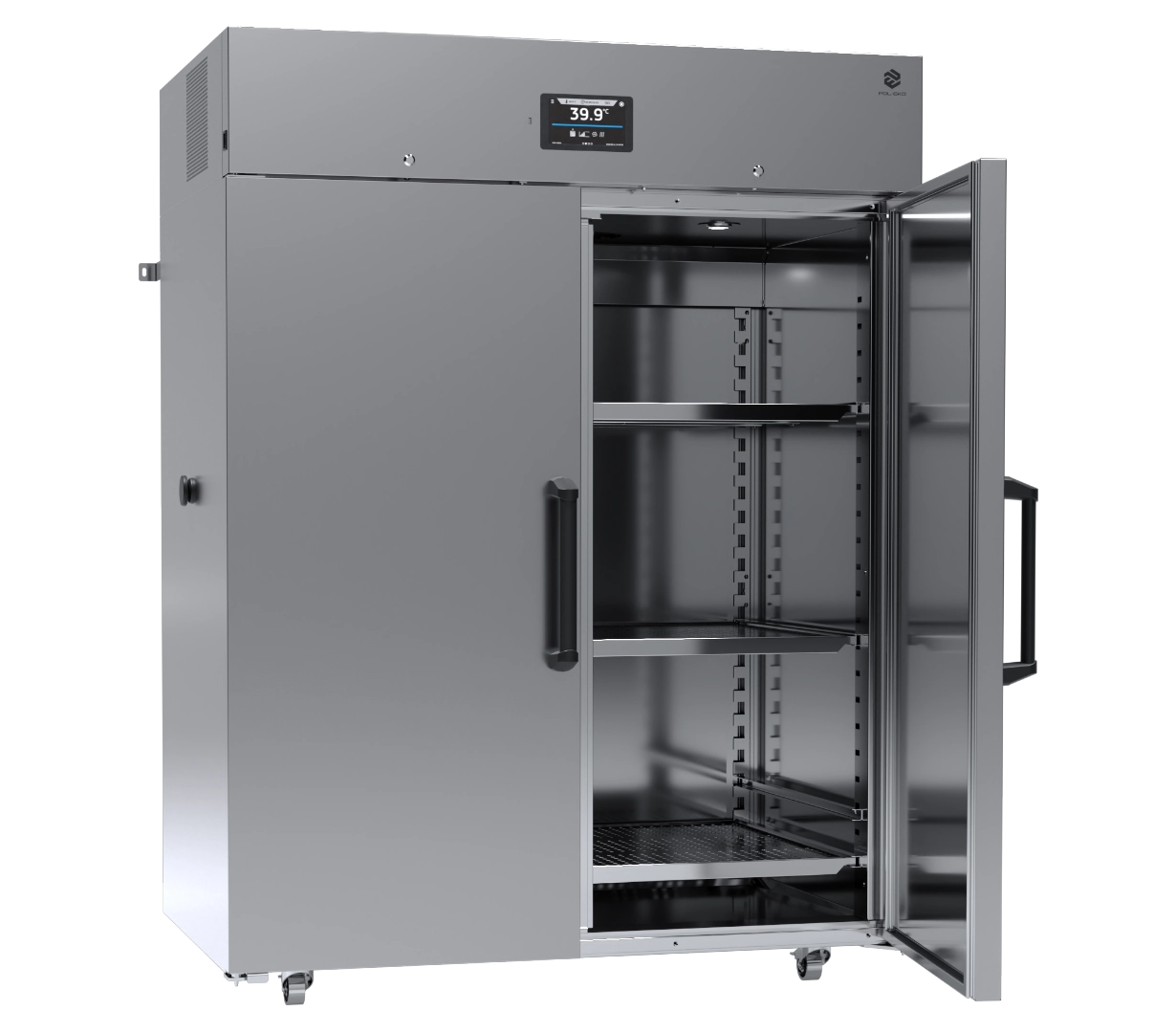

Cooled Incubator ST 1450 BS

The POL-EKO ST 1450 BS is an ultra-high capacity 1540-liter cooled incubator featuring a specialized Big Size (BS) open-chamber design. By eliminating the internal central column, it provides an expansive, unobstructed width of 1270 mm, making it perfect for housing oversized equipment or large-scale biological samples. Operating between +3?C and +40?C (expandable to +70?C), this unit comes standard with reinforced perforated stainless steel shelves and a forced air convection system, offering the ultimate large-volume “Perfect Environment” for industrial research and BOD determination.

Description

The Cooled Incubator ST 1450 BS is the largest specialized variant in the POL-EKO catalog, engineered specifically for laboratories that need massive, flexible workspace. Unlike standard 1450 models that utilize a central divider, the BS version provides a continuous, open internal chamber. This unique architecture allows researchers to easily install large laboratory shakers, automation systems, or unusually wide containers that would not fit in standard double-door units.

Engineered for Heavy Loads To support the demands of high-volume incubation, the ST 1450 BS is equipped with reinforced perforated stainless steel shelves as standard. These shelves are designed to handle significant weight?up to 100 kg per shelf?ensuring the unit can safely accommodate bulk chemical reagents, large carboys, or heavy mechanical equipment. The forced air convection system guarantees that even with a high workload, temperature uniformity remains exceptional across the entire 1525-liter working volume.
+1

Advanced Monitoring and Control Managed by the Smart controller, the unit features a 4.3-inch color touch screen that is intuitive and glove-compatible. Key features include:

Connectivity: Standard LAN and USB ports for data logging and export.

Security: A physical door lock, an open-door alarm, and over-temperature protection (Class 1.0).

Efficiency: An automatic defrosting function ensures long-term reliability during continuous cooling cycles.

Customization: For more complex data management, the unit can be upgraded to the Smart PRO controller (7″ screen, Wi-Fi, and Class 3.3 protection) or equipped with the FOT photoperiodic system for day/night simulation.

Datasheet

Specifications

Pol-Eko ST 1450 BS (Cooled Incubator)

The BS version (BOD Specialized) is a high-capacity unit specifically designed for Biochemical Oxygen Demand determination. The critical hardware difference from the standard ST 1450 is the removal of the internal vertical column, creating a completely open, wide chamber that allows for the easy placement of large BOD measurement sets (like OxiTop®).

  • Chamber Capacity: 1540 Liters

  • Working Capacity: 1525 Liters

  • Air Convection: Forced

  • Temperature Range (Smart): +3 to +40°C

  • Temperature Range (Smart PRO): +3 to +70°C

  • Temperature Resolution: 0.1°C

  • Temperature Fluctuation (at 37°C): +/- 0.3°C

  • Temperature Variation (at 37°C): +/- 1.0°C

  • Temperature Protection: * Smart: Class 1.0 (Standard) / Class 3.3 (Optional)

    • Smart PRO: Class 3.3 (Standard)

  • Internal Dimensions (W x H x D): 1270 x 1460 x 715 mm

  • External Dimensions (W x H x D): 1440 x 1940 x 990 mm

  • Shelves (Standard / Max): 2 x 3 / 11 (Reinforced perforated stainless steel as standard)

  • Max Shelf Workload: 30 kg (Standard) / 100 kg (Reinforced PW version)

  • Max Unit Workload: 300 kg

  • Controller: Smart (4.3″ touch screen) or Smart PRO (7″ touch screen)

  • Connectivity: * Smart: LAN, USB

    • Smart PRO: Wi-Fi, LAN, USB

  • Interior Material: Acid-proof stainless steel (DIN 1.4301)

  • Housing: Powder-coated sheet (Standard) or Stainless steel polished (IG version)

  • Door Type: Double solid doors (No central column between doors when open)

  • Nominal Power: 950 W

  • Refrigerant: R290 (GWP=3)

  • Net Weight: 239 kg

  • Standard Accessories: Internal LED light, internal power sockets (for BOD stirrers), castors, door lock, Ø30 mm access port.
