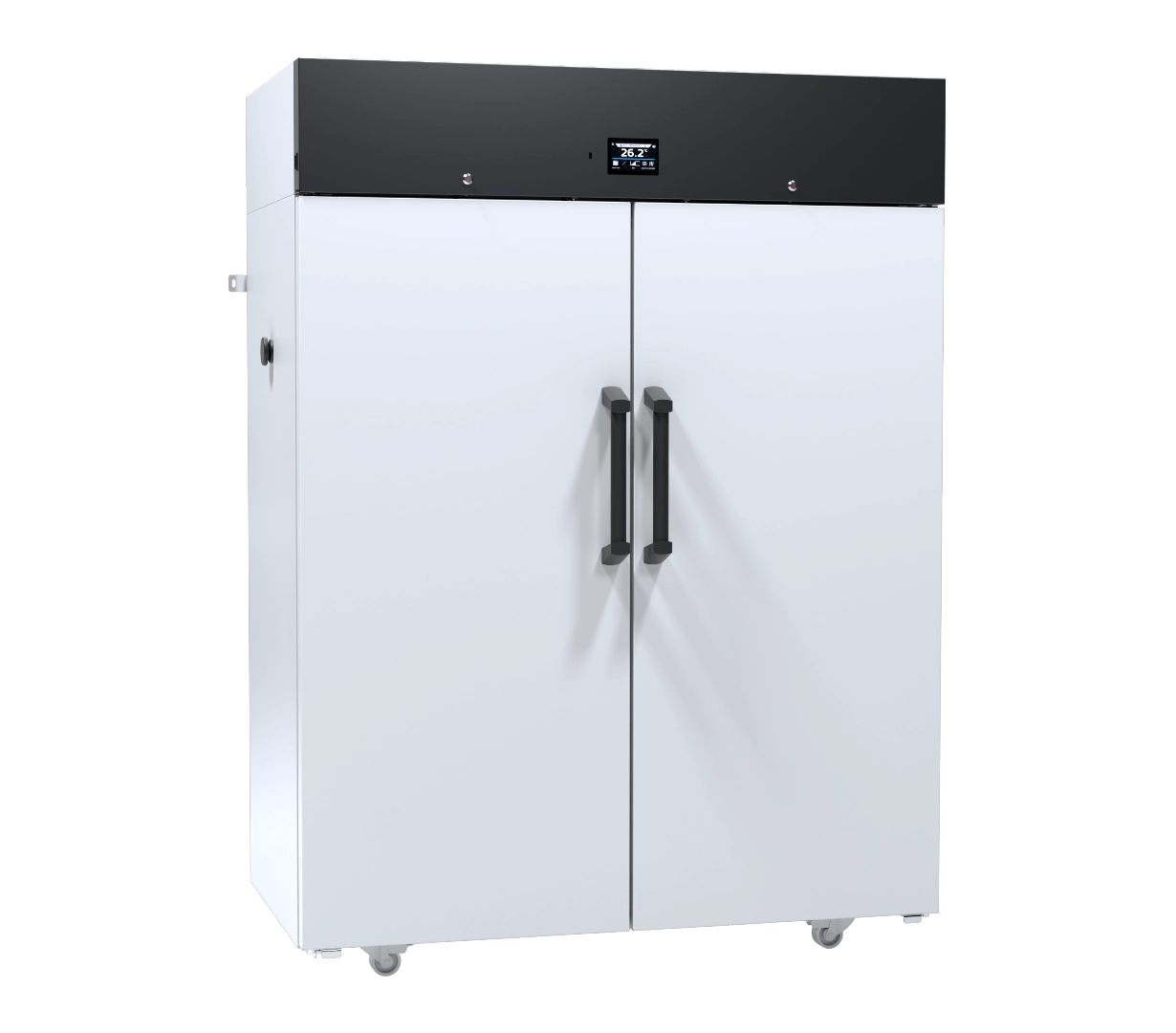

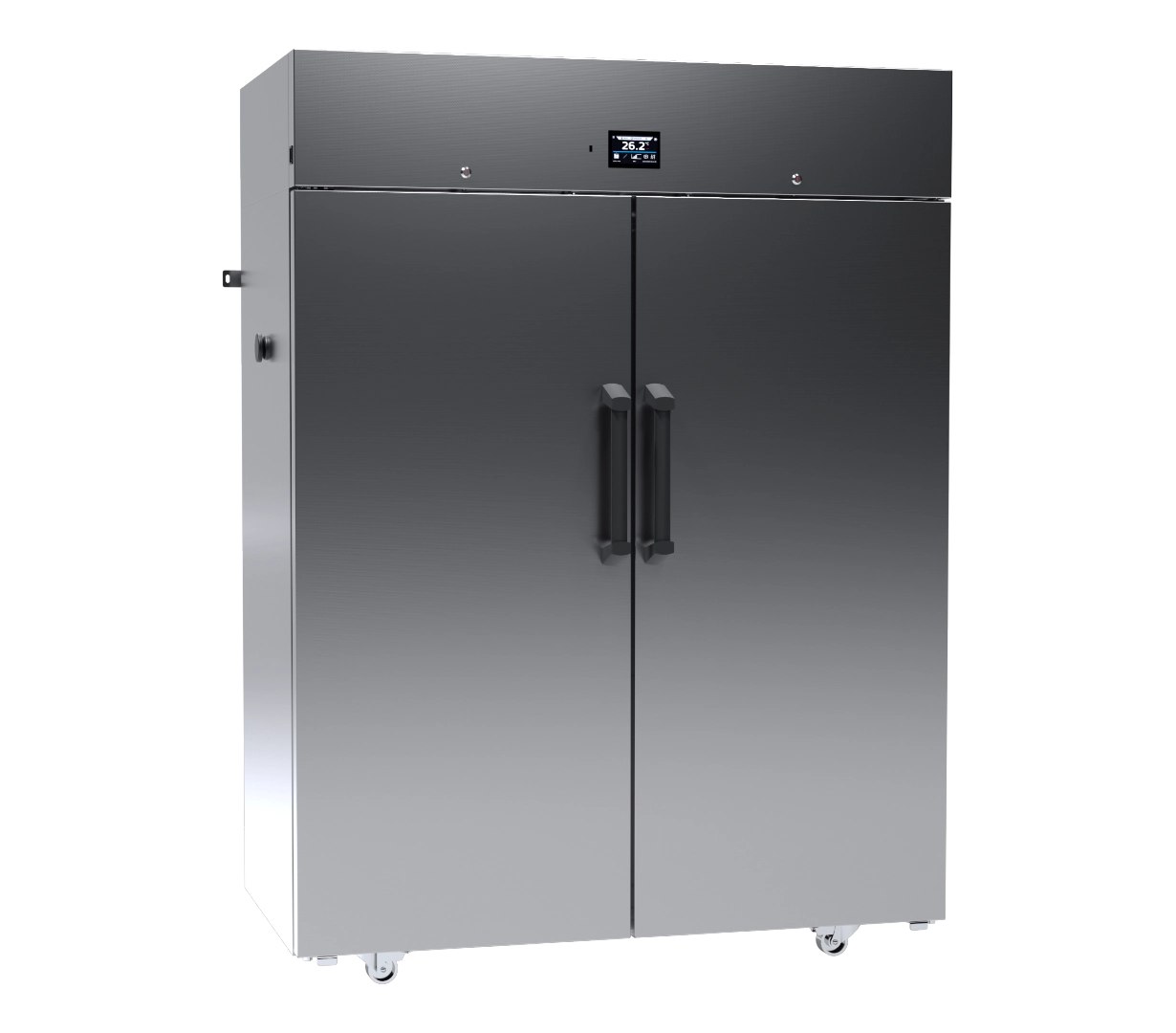

Cooled Incubator ST 1200 BS

The POL-EKO ST 1200 BS is a specialized, high-capacity 1365-liter cooled incubator featuring a unique open-chamber design without an internal column, allowing for the storage of exceptionally wide samples or large-scale equipment. This double-door unit operates within a temperature range of +3?C to +40?C and is equipped with reinforced perforated stainless steel shelves as standard. Designed for high-volume BOD determination and microbiological research, the ST 1200 BS combines massive storage flexibility with the precision of forced air convection and an intuitive touch-screen interface.

Description

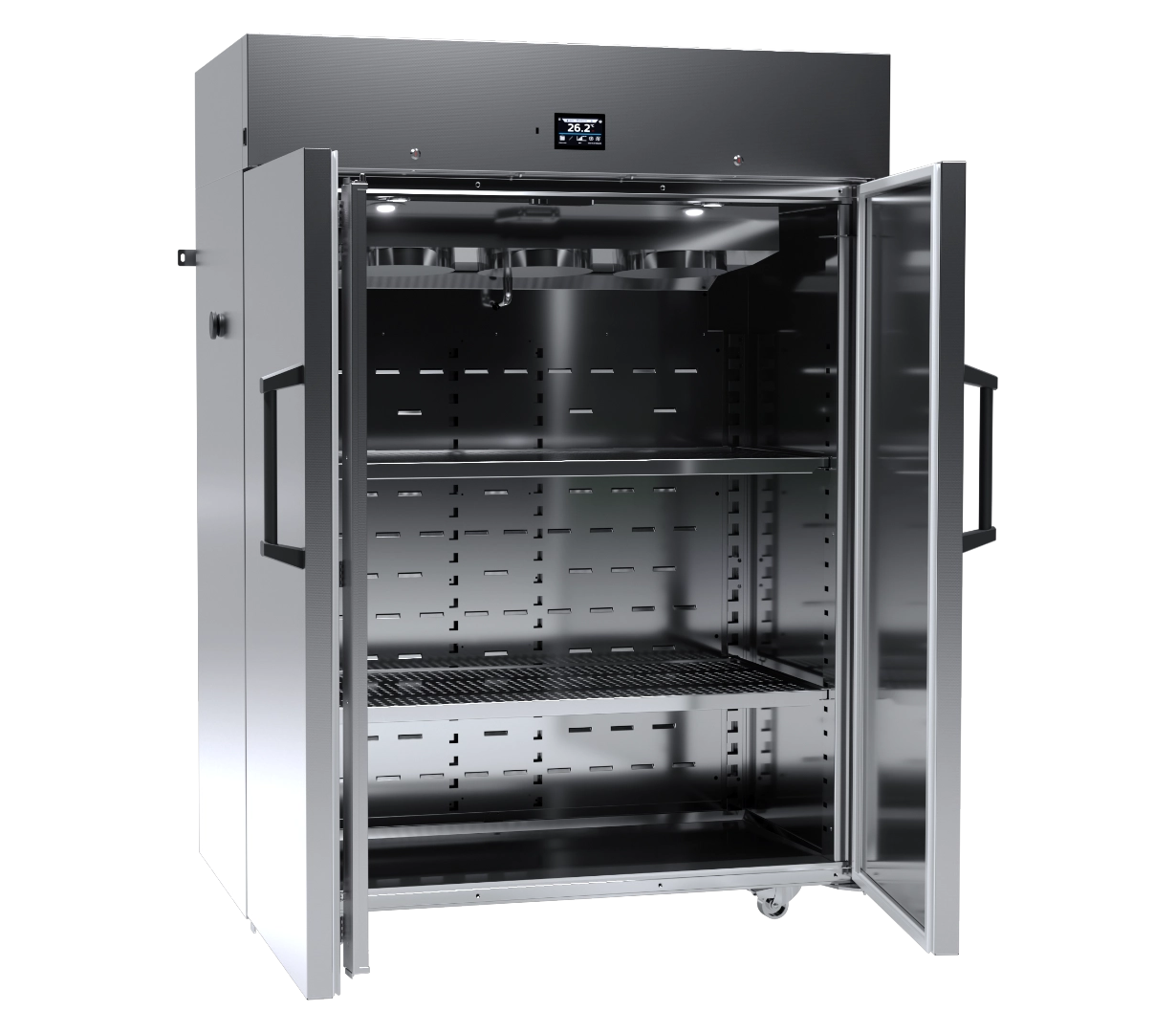

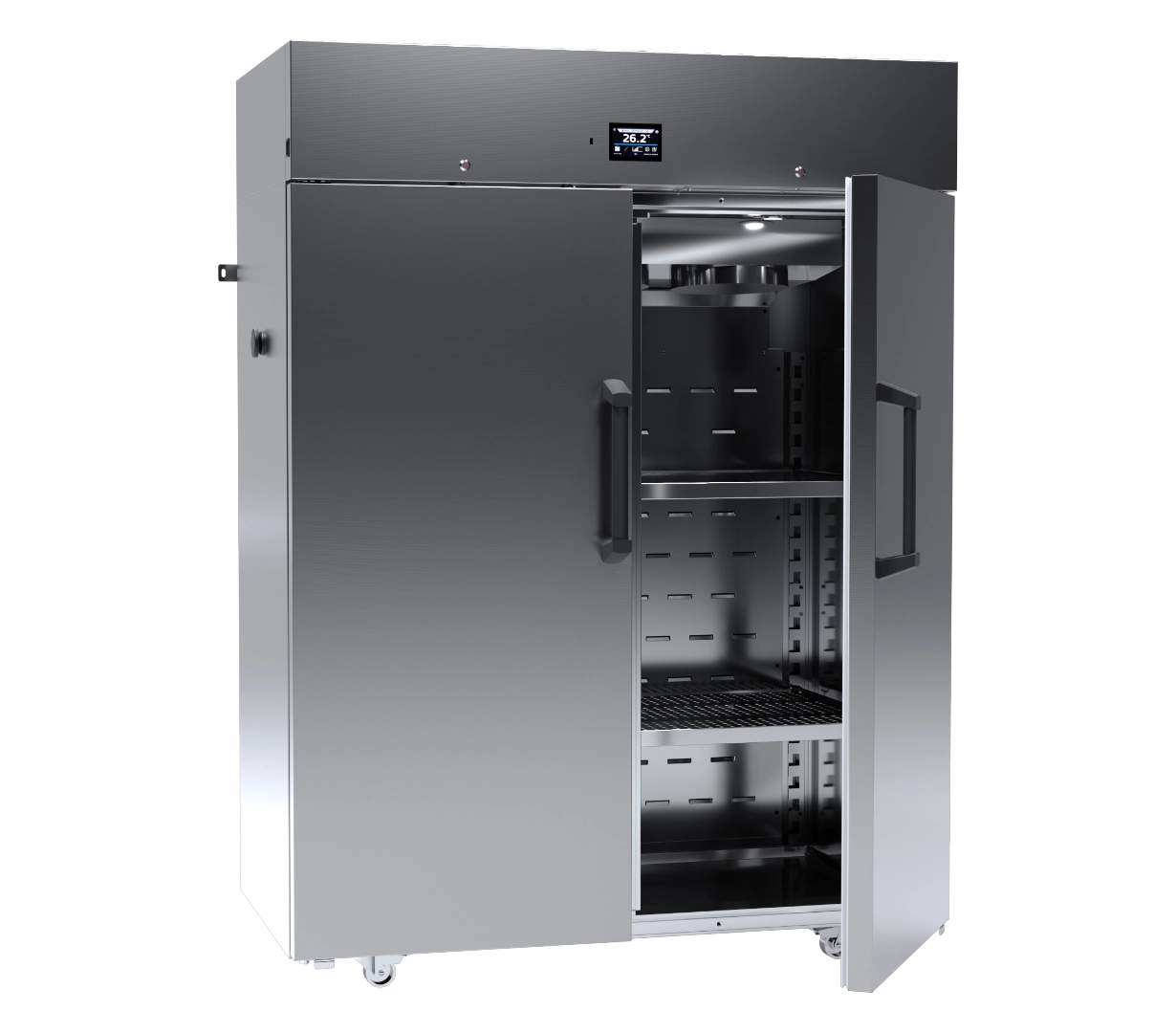

The Cooled Incubator ST 1200 BS (Big Size) is a unique variant in the POL-EKO lineup, specifically engineered for laboratories that require a massive, unobstructed internal workspace. While standard large-capacity models often feature a central dividing column between doors, the BS version eliminates the internal column, providing a continuous internal width of 1270 mm. This makes it the ideal choice for incubating oversized biological samples, large carboys, or running laboratory automation and shakers inside a controlled environment.

Performance and ConstructionWith a working capacity of 1355 liters, the ST 1200 BS utilizes forced air convection to ensure rapid temperature recovery and high uniformity. It is built for heavy-duty use, coming standard with reinforced perforated shelves capable of supporting significantly higher workloads than standard wire shelves. The interior is crafted from stainless steel (DIN 1.4016) for the Comfort model, ensuring durability and easy decontamination.

Smart Control and SafetyThe unit is managed by the Smart controller, featuring a 4.3-inch color touch screen that provides:

Connectivity: Integrated LAN and USB ports for easy data transfer and export.

Programming: Multi-segment time and temperature profiles with an internal memory for data storage.

Safety: Integrated door lock, an open-door alarm, and over-temperature protection (Class 1.0 according to DIN 12880).

Usability: The screen is designed for operation with gloves, and the “Alarm Bar” provides an immediate visual status of the unit’s performance.

Datasheet

Specifications

Pol-Eko ST 1200 (Cooled Incubator)

The ST 1200 is a high-capacity, double-door thermostatic cabinet designed for large-scale BOD determination and microbiological research. It is available with the Smart or Smart PRO controller.

  • Chamber Capacity: 1365 Liters


  • Working Capacity: 1355 Liters


  • Air Convection: Forced


  • Temperature Range (Smart): +3 to +40°C (Optional: Up to +70°C)


  • Temperature Range (Smart PRO): +3 to +70°C


  • Temperature Resolution: 0.1°C


  • Temperature Fluctuation (at 37°C): +/- 0.3°C

  • Temperature Variation (at 37°C): +/- 1.0°C


  • Temperature Protection:

    • Smart: Class 1.0 (Standard) / Class 3.3 (Optional)


    • Smart PRO: Class 3.3 (Standard)


  • Internal Dimensions (W x H x D): 1270 x 1510 x 680 mm


  • External Dimensions (W x H x D): 1480 x 1990 x 890 mm

  • Shelves (Standard / Max): 2 x 3 / 11


  • Max Shelf Workload: 30 kg (Standard) / 100 kg (Reinforced PW version)


  • Max Unit Workload: 300 kg


  • Controller: Smart (4.3″ touch screen) or Smart PRO (7″ touch screen)


  • Connectivity:

    • Smart: LAN, USB


    • Smart PRO: Wi-Fi, LAN, USB


  • Interior Material: * Comfort (C): Stainless steel (DIN 1.4016)


    • Premium (P): Acid-proof stainless steel (DIN 1.4301)


  • Voltage: 230V 50-60Hz


  • Nominal Power: 650 W


  • Refrigerant: R290 (GWP=3)


  • Net Weight: 185 kg (Basic) / 221 kg (Premium)


  • Standard Accessories: Internal LED light, castors, Ø30 mm access port, door lock, open door alarm.
