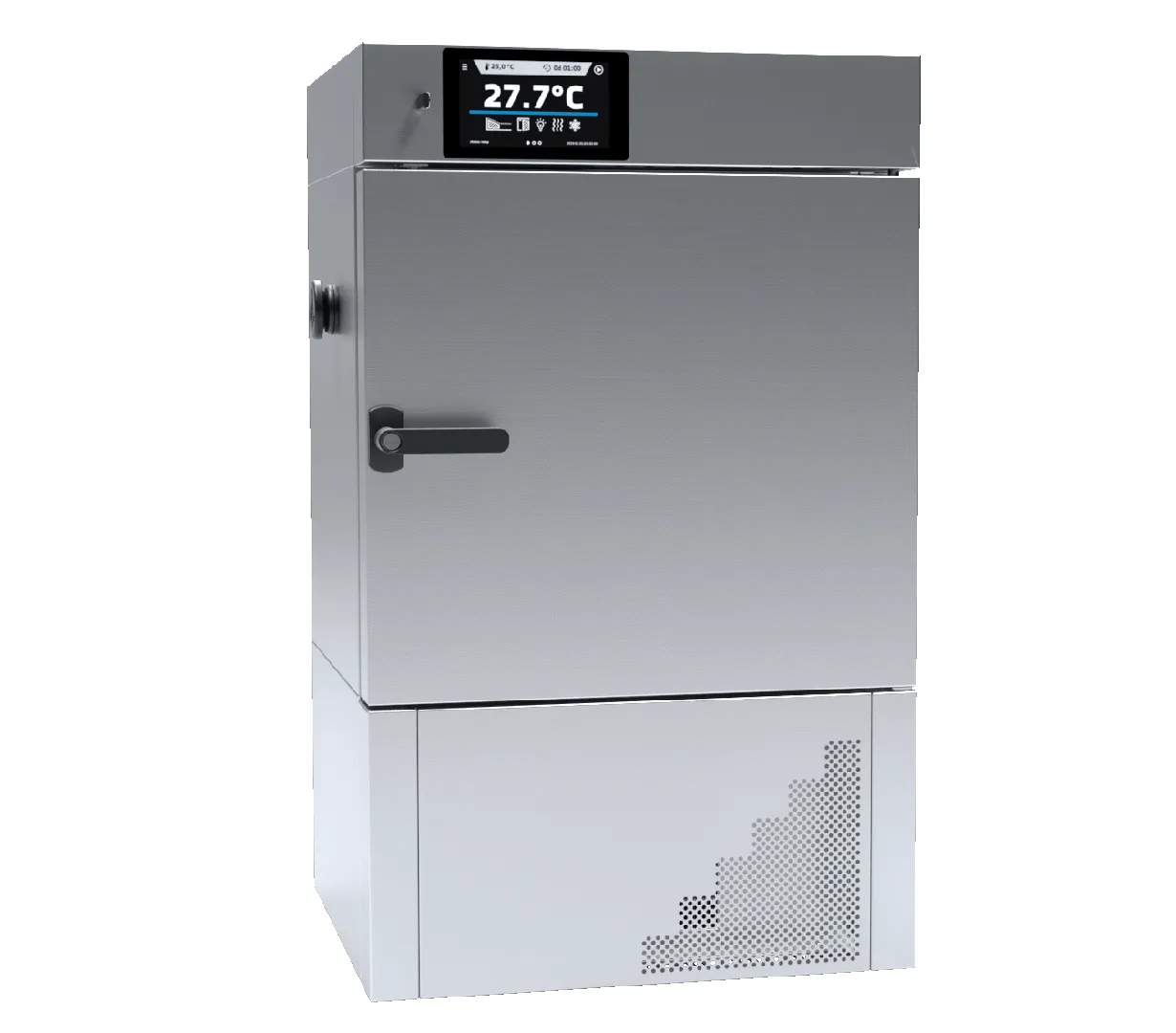

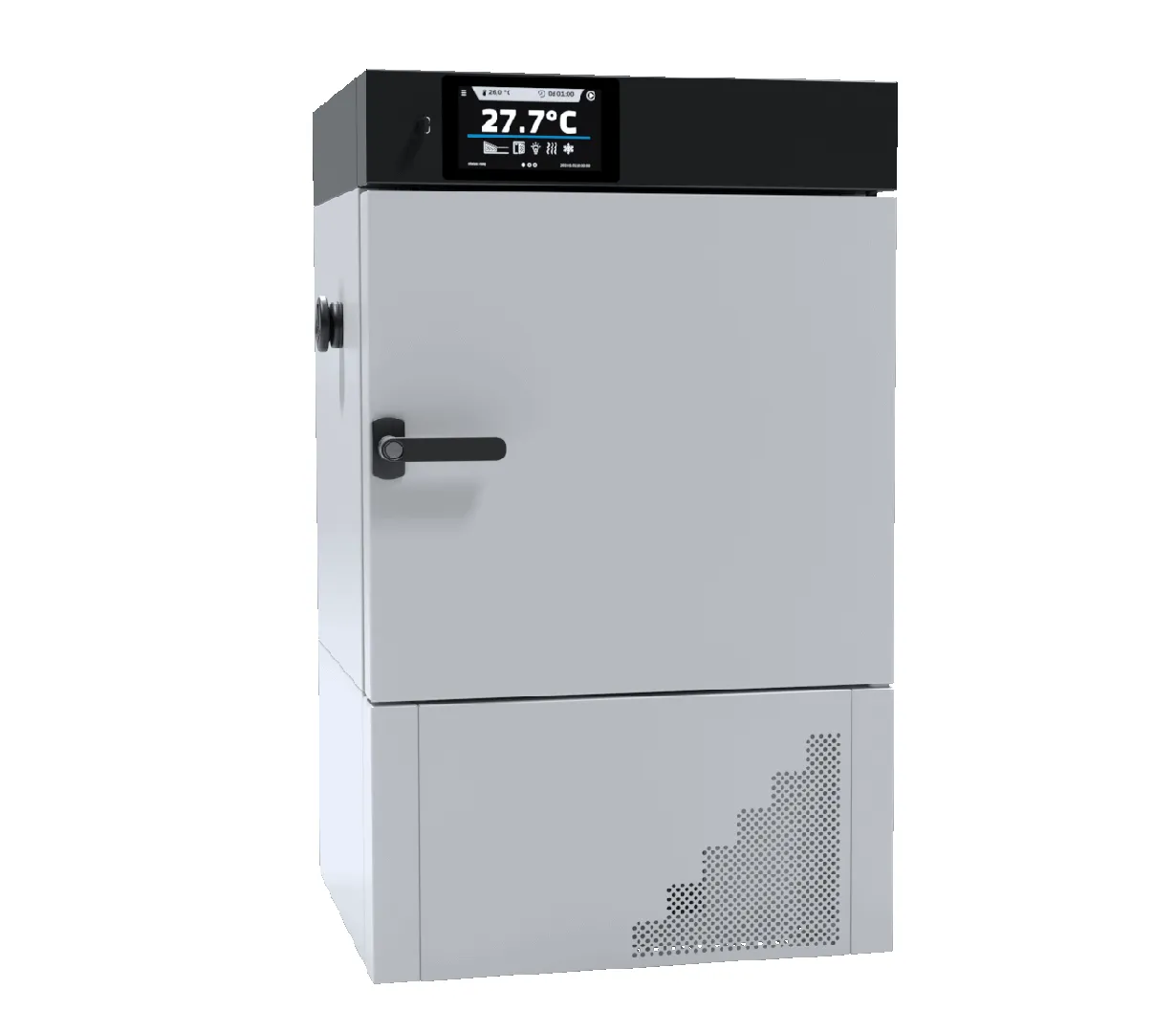

Cooled Incubator (IL) ILW 53

The POL-EKO ILW 53 is a compact 56-liter cooled incubator designed for precise microbiological research, BOD determination, and sample storage. Featuring forced air convection and a temperature range of 0?C to +70?C (expandable to -10?C to +100?C), this unit ensures exceptional stability regardless of ambient conditions. Equipped with double doors (solid external and glass internal) and an intuitive color touch-screen controller, it provides a “Perfect Environment” for sensitive laboratory applications.

SKU: ILW 53 Categories: , Brand: Product ID: 21362

Description

The Cooled Incubator (IL) ILW 53 is a professional-grade thermostatic solution engineered by POL-EKO for laboratories requiring high precision in a space-saving footprint. With a 56-liter capacity, this forced-air unit is ideal for applications ranging from plant growth and microorganism breeding to long-term sample incubation.

The ILW 53 offers a standard temperature range of 0?C to +70?C with a resolution of 0.1?C. For specialized research, optional upgrades allow for sub-zero cooling (down to -10?C) or extended heating (up to +100?C in the Smart PRO version). The forced air convection system ensures rapid temperature recovery and uniform distribution throughout the chamber.

Choose between two high-tech control systems: the Smart Controller featuring a 4.3″ color touch screen, or the Smart PRO Controller with a 7″ color touch screen, Wi-Fi, and advanced data logging. Both controllers are designed to be operated while wearing latex gloves and feature an Alarm Bar for immediate visual status updates.

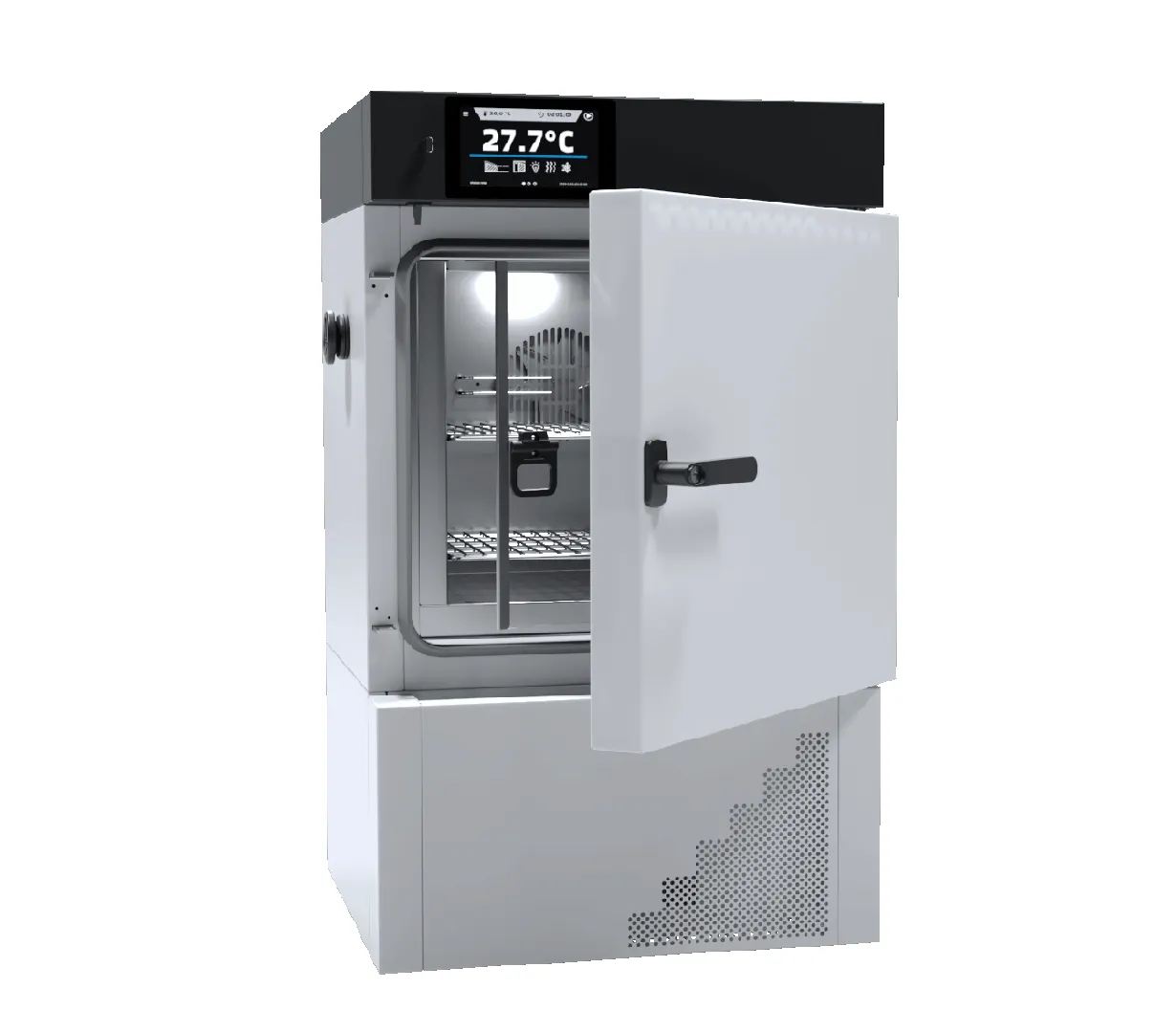

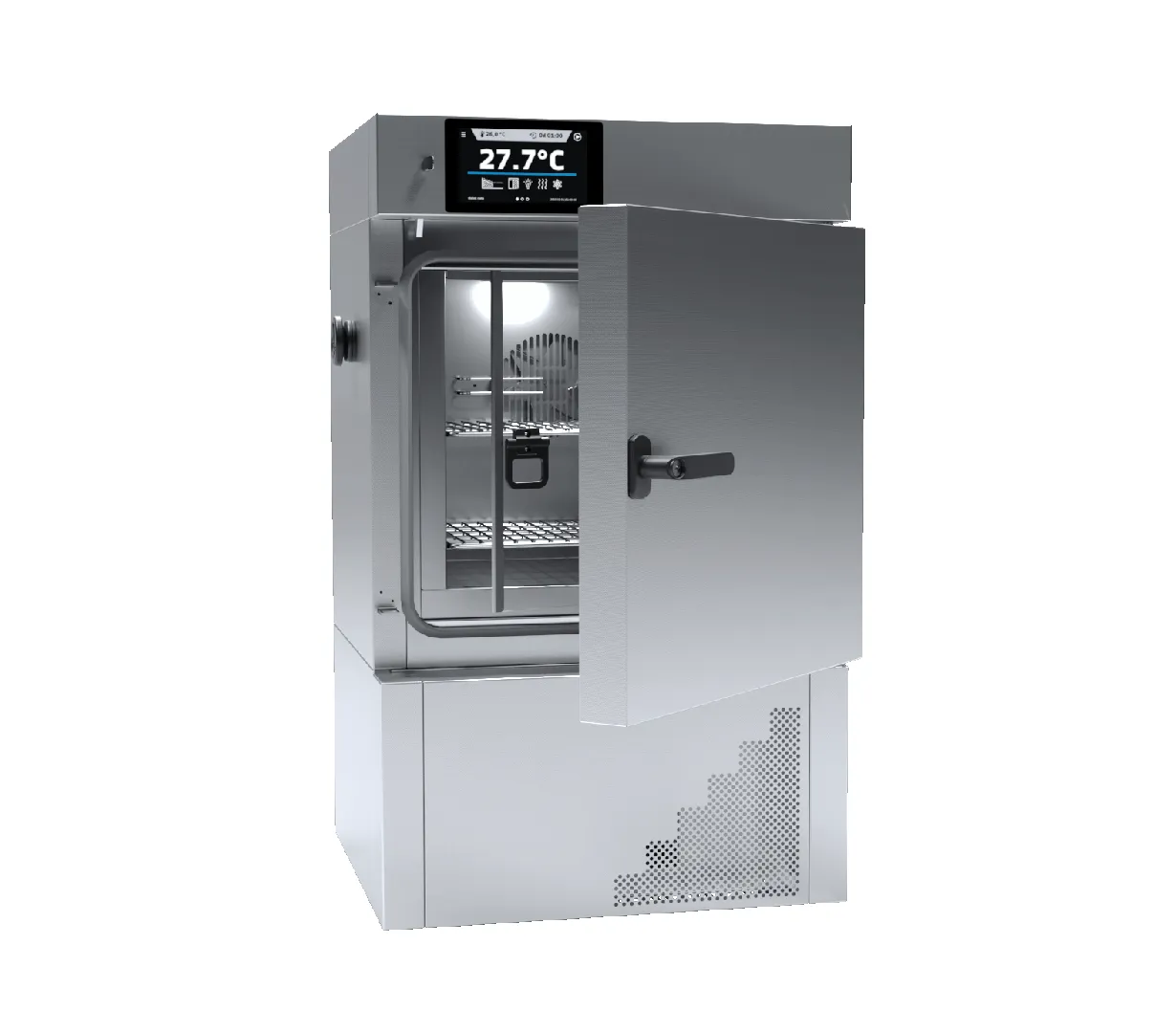

The interior is crafted from acid-resistant stainless steel (DIN 1.4301) for easy cleaning and durability. The unit features double doors?a solid outer door for insulation and a glass inner door for sample observation without disturbing the internal climate. Standard safety features include an open-door alarm, a physical door lock, and over-temperature protection (Class 2.0 or 3.3).

Datasheet

Specifications

Pol-Eko ILW 53 (Cooled Incubator)

  • Chamber Capacity: 56 Liters


  • Working Capacity: 56 Liters


  • Air Convection: Forced


  • Temperature Range (Smart): 0 to +70°C (Optional: -10 to +70°C)


  • Temperature Range (Smart PRO): 0 to +100°C (Optional: -10 to +100°C)


  • Temperature Resolution: 0.1°C


  • Temperature Fluctuation (at 37°C): +/- 0.2°C


  • Temperature Variation (at 37°C): +/- 0.3°C


  • Temperature Protection (Smart): Class 2.0 (DIN 12880) / Class 3.3 (Optional)


  • Temperature Protection (Smart PRO): Class 3.3 (DIN 12880)


  • Internal Dimensions (W x H x D): 400 x 390 x 350 mm


  • External Dimensions (W x H x D): 590 x 1000 x 630 mm


  • Shelves (Standard / Max): 2 / 5


  • Max Shelf Workload: 25 kg (Standard) / 50 kg (Reinforced PW version)


  • Max Unit Workload: 40 kg (Standard) / 80 kg (Reinforced W version)


  • Controller: Smart (4.3″ touch screen) or Smart PRO (7″ touch screen)


  • Connectivity (Smart): LAN, USB (Data log recording)


  • Connectivity (Smart PRO): Wi-Fi, LAN, USB (Data/Event logs & program upload)


  • Interior Material: Acid-proof stainless steel (DIN 1.4301)


  • Housing: Powder-coated sheet (Standard) or Stainless steel linen finish (IG version)


  • Door Type: Double doors (solid external with lock, glass internal)


  • Voltage: 230V 50-60Hz


  • Nominal Power: 450 W


  • Refrigerant: R1234ze (GWP=1)


  • Net Weight: 69 kg


  • Standard Accessories: Ø30 mm access port (left side), open door alarm, door lock, LabDesk software (Smart PRO).
