CO2 Incubator ILC 180

The POL-EKO ILC 180 is a premium 182-liter CO2 incubator designed to provide optimal conditions for sensitive cell growth and tissue culture. Featuring a fan-less, natural air convection system to eliminate sample desiccation and contamination, it offers precise control over temperature (+5?C above ambient to +50?C) and CO2 concentration (0-20%). The unit is equipped with a high-temperature 180?C hot-air sterilization cycle and an intuitive 7-inch color touch-screen controller, ensuring a sterile and reliable “Perfect Environment” for advanced biological research.

SKU: ILC 180 Categories: , Brand: Product ID: 21367

Description

The CO2 Incubator ILC 180 is a specialized thermostatic solution engineered by POL-EKO for the most demanding cell culture applications. With a chamber capacity of 182 liters (135L working volume), this incubator utilizes natural air convection to protect delicate samples from the potential drying effects or cross-contamination risks associated with forced-air (fan) systems.

Precision Control & MonitoringThe ILC 180 maintains exceptional environmental stability through its advanced microprocessor PID control. It features a drift-free infrared (IR) CO2 sensor that remains accurate even after high-temperature sterilization. The chamber operates between +5?C above ambient and +50?C, while the CO2 levels can be adjusted from 0 to 20% with a recovery time of just 10 minutes after a 30-second door opening.

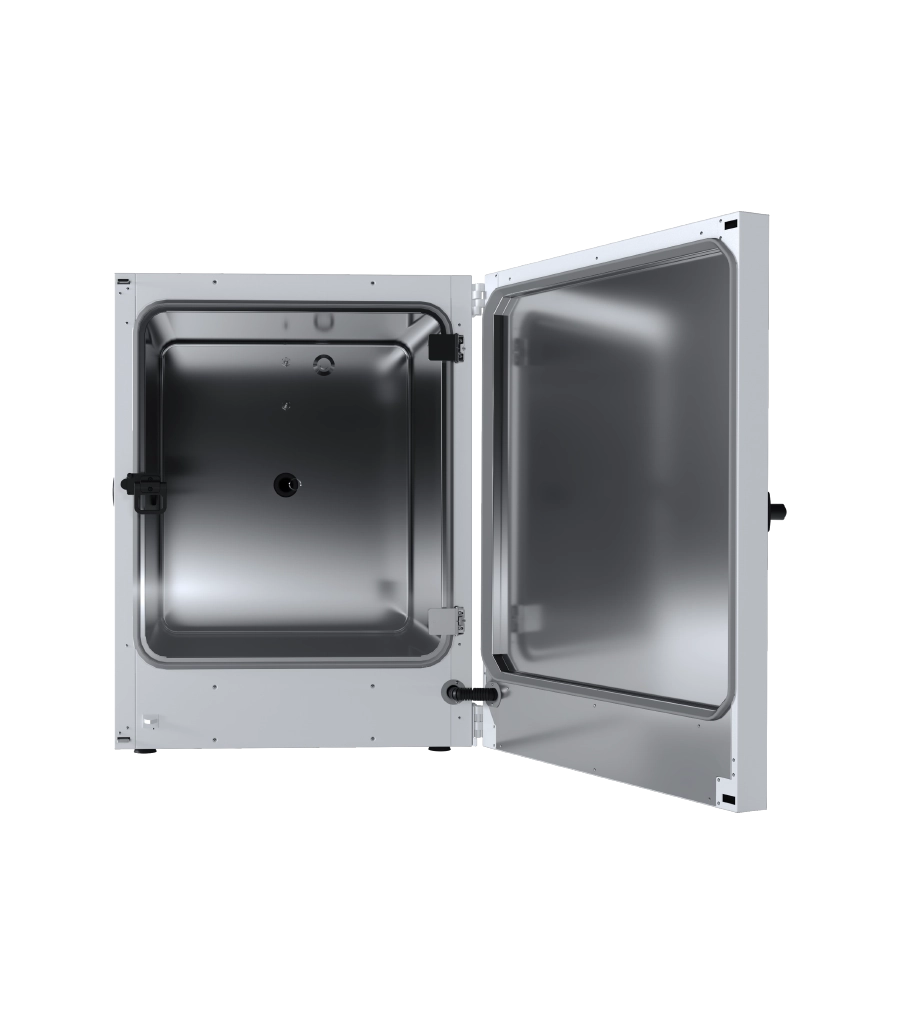

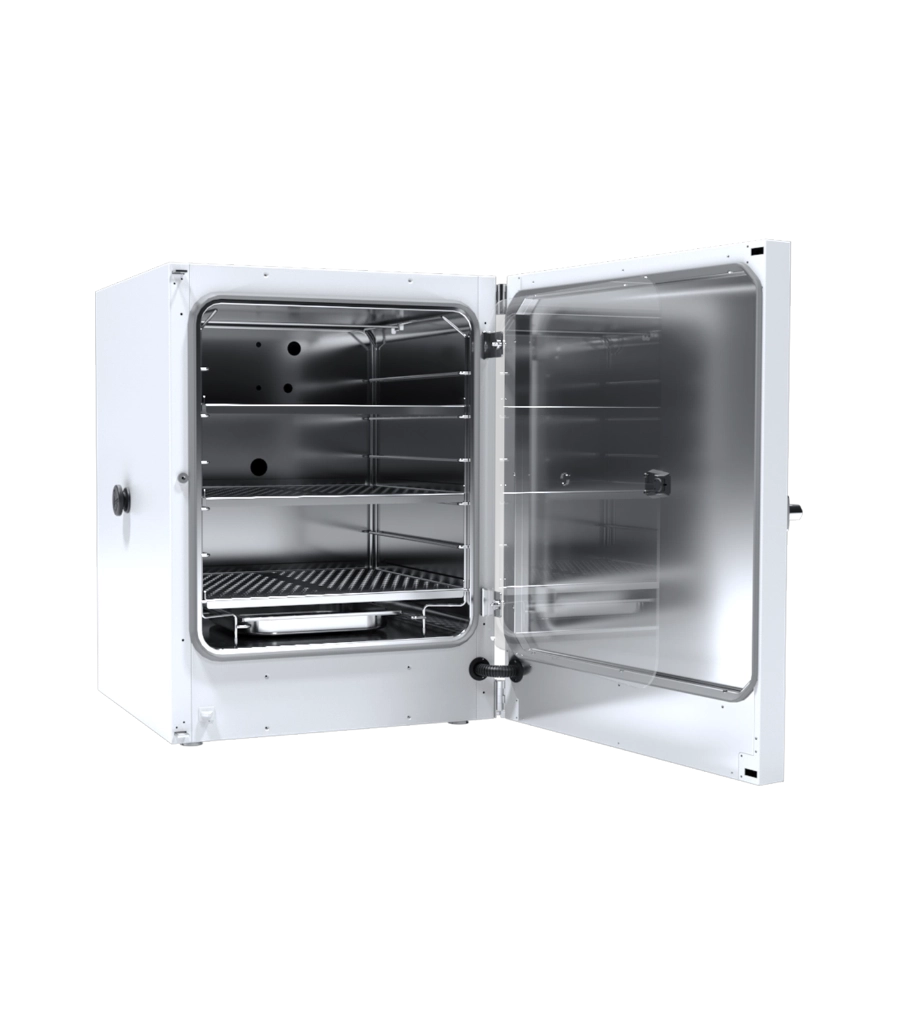

Advanced Safety & Contamination ProtectionTo ensure the highest standards of lab hygiene, the ILC 180 includes a built-in 180?C hot-air sterilization program, allowing users to fully decontaminate the chamber between experiments. The interior is crafted from acid-resistant stainless steel (DIN 1.4301) with rounded corners and smooth surfaces for effortless cleaning. The double-door system?featuring a solid outer door with a magnetic handle and a glass inner door?allows for sample viewing without disrupting the internal atmosphere.

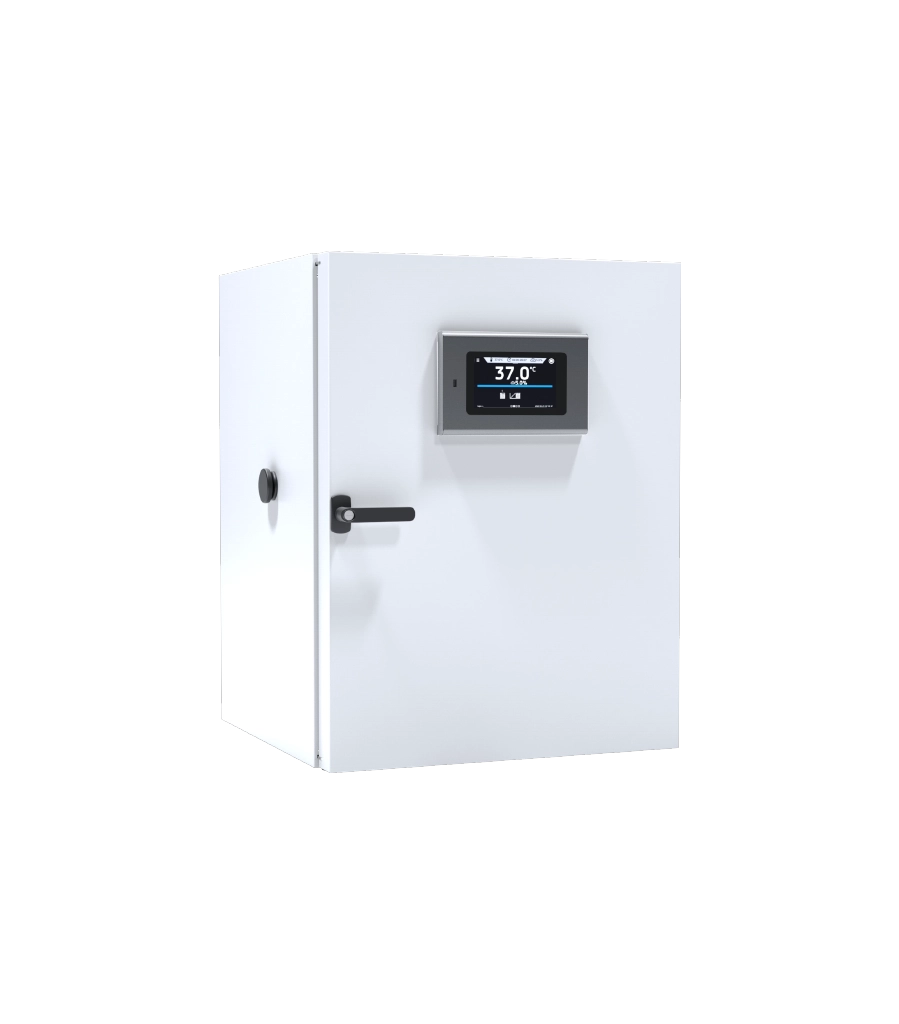

Smart PRO Controller FeaturesThe unit comes standard with the Smart PRO controller, featuring a large 7-inch full-color touch screen that can be operated while wearing gloves. Key features include:

Connectivity: Built-in LAN, USB ports, and Wi-Fi for data transfer and remote monitoring via LabDesk software.

Data Management: Internal memory for programs, event registry, and tabular/graphic data preview.

Security: Password-protected login with multi-level user management (Admin/User).

Alarms: Visual and audible open-door and temperature-fail alarms with an instant-status “Alarm Bar.”

Datasheet

Specifications

General Overview

  • Model: ILC 180 Smart PRO

  • Manufacturer: POL-EKO

  • Convection: Natural (fan-less)

  • Chamber Capacity: $182text{ L}$

  • Working Capacity: $135text{ L}$

  • Sterilization: Hot-air sterilization at $180^{circ}text{C}$

Performance Data

  • Temperature Range: $+5^{circ}text{C}$ above ambient to $+50^{circ}text{C}$

  • Temperature Resolution: $0.1^{circ}text{C}$

  • Temperature Fluctuation (at 37°C): $pm 0.1^{circ}text{C}$

  • Temperature Variation (at 37°C): $pm 0.3^{circ}text{C}$

  • Temperature Recovery Time (after 30s door opening): $6text{ min}$

  • CO2 Range: $0text{ to }20%$

  • CO2 Resolution: $0.1%$

  • CO2 Sensor: Drift-free Infrared (IR)

  • CO2 Recovery Time (after 30s door opening): $10text{ min}$

  • Relative Humidity Range: $90text{ to }95%$ (via water pan)

Dimensions & Loading

  • Internal Dimensions (W x H x D): $560 times 650 times 500text{ mm}$

  • External Dimensions (W x H x D): $710 times 920 times 790text{ mm}$

  • Shelves (Standard / Max): 3 / 6 (perforated stainless steel)

  • Max Shelf Workload: $10text{ kg}$

  • Max Unit Workload: $30text{ kg}$

  • Net Weight: $96text{ kg}$

Electrical & Control

  • Controller: Smart PRO (7″ full-color touchscreen)

  • Connectivity: Wi-Fi, LAN, USB (for data logs and program transfer)

  • Voltage: 230V / 50-60 Hz

  • Nominal Power: $1700text{ W}$

  • Energy Consumption (at 37°C): $66text{ Wh/h}$

  • Safety Class: 3.1 (DIN 12880)

Key Features

  • Dual Door System: Solid external door and internal glass door.

  • Rounded Corners: Easy-to-clean acid-proof stainless steel interior.

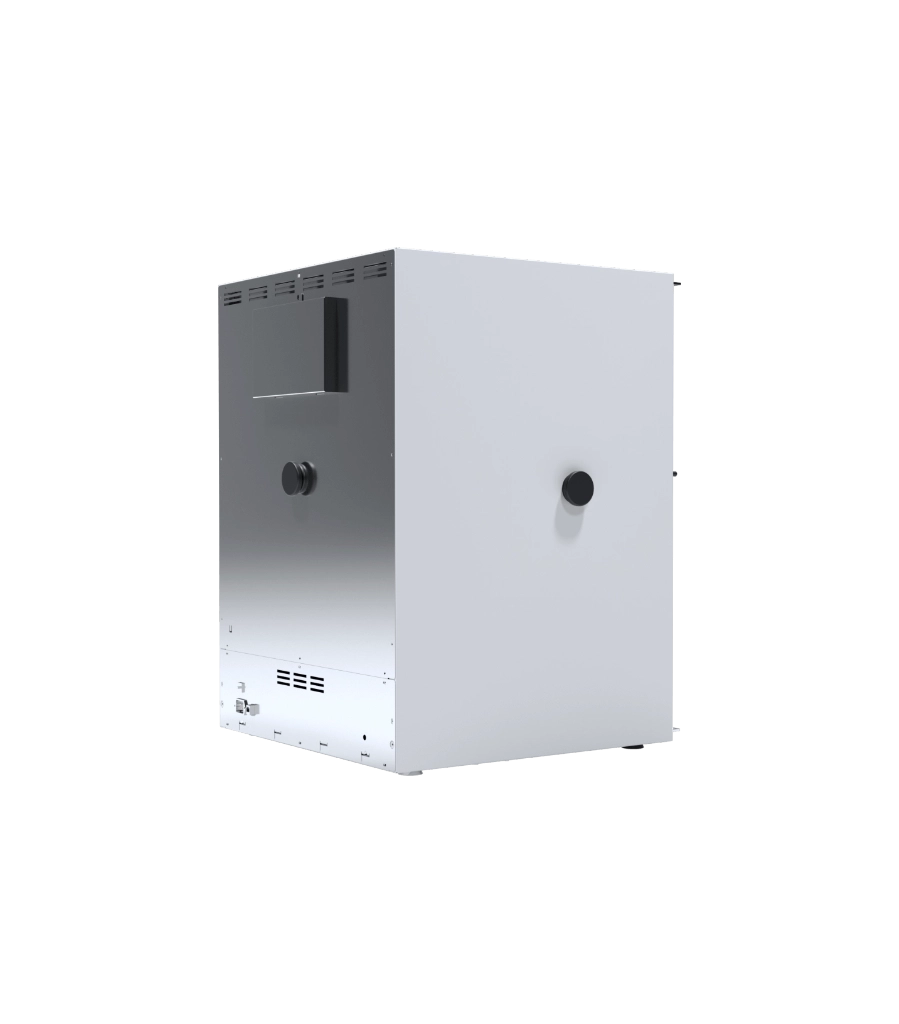

  • Access Ports: Two Ø30 mm ports (left wall and rear).

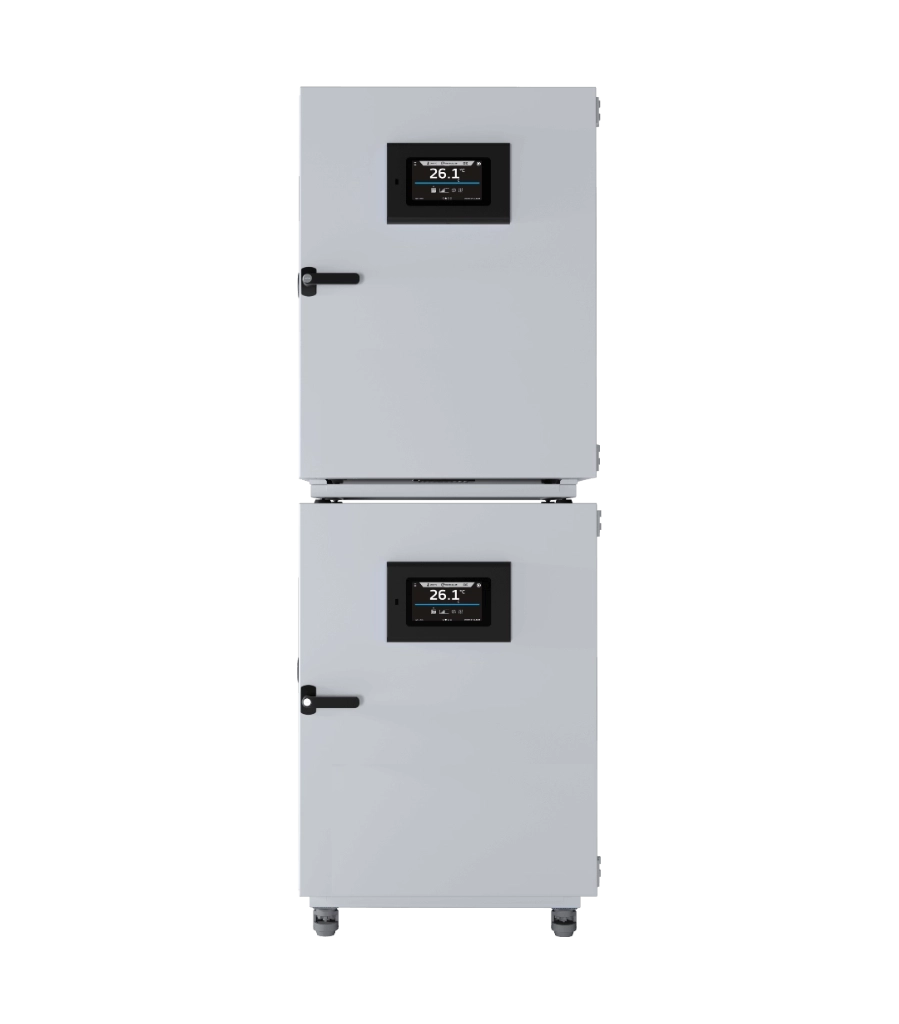

  • Stackable: Two units can be stacked using a stacking adapter.

  • LabDesk Software: Included for remote control and data visualization.
