Climatic Chamber KKS 1200

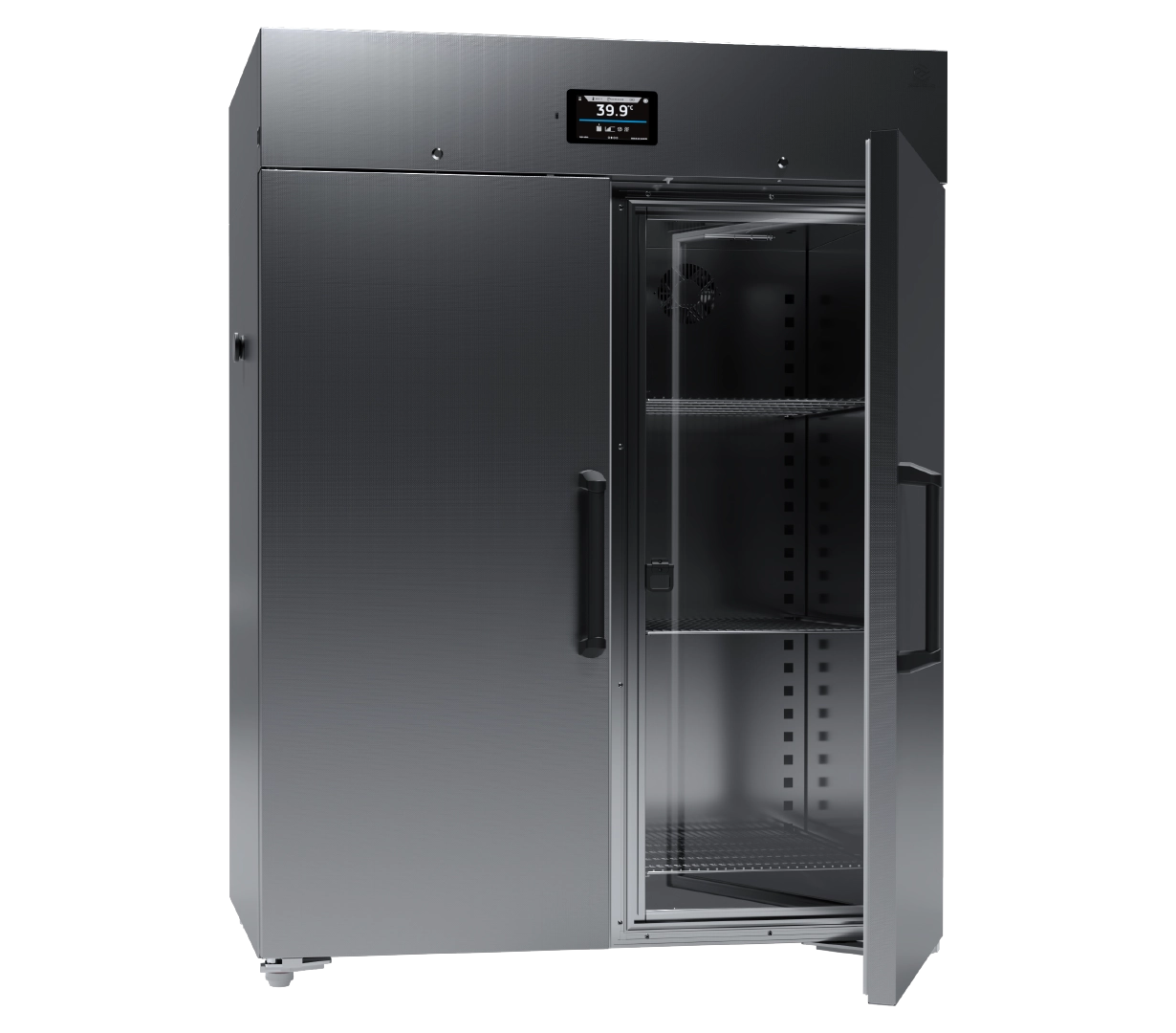

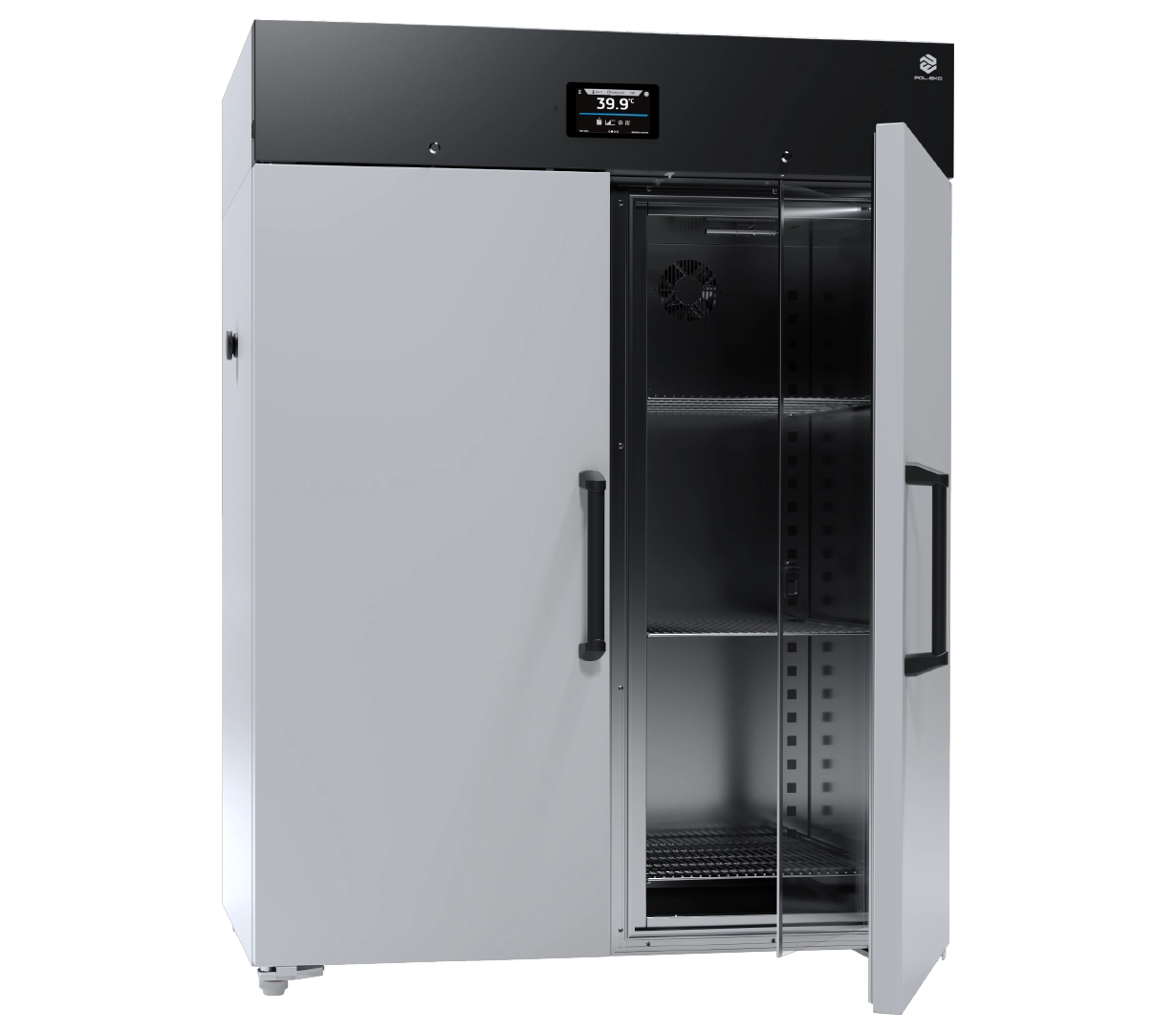

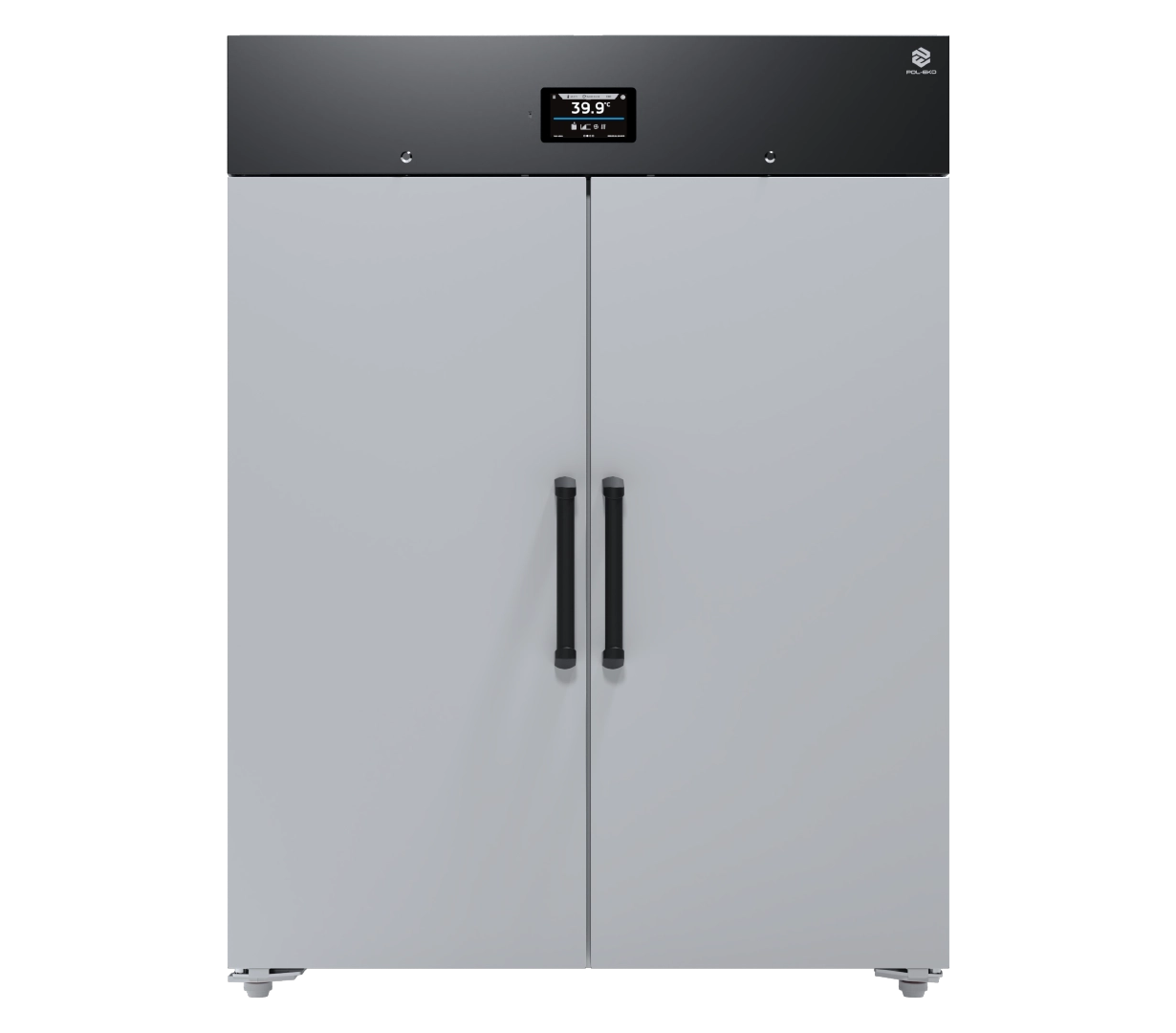

POL-EKO KKS 1200 Climatic Chamber The KKS 1200 is a premier 1397-liter, double-door climatic chamber designed for high-capacity environmental simulation. Utilizing a vibration-free steam humidification system, it provides precise control within a temperature range of 0?C to +60?C and a humidity range of 10% to 90% RH. Managed by the Smart PRO 7-inch touchscreen controller, it features integrated Wi-Fi, advanced data logging, and multi-segment programming. It is the ideal solution for large-batch ICH pharmaceutical stability trials, high-volume seed germination, and insect breeding where a noise-free environment is critical.

SKU: KKS 1200 Categories: , Brand: Product ID: 21633

Description

The POL-EKO KKS 1200 is engineered for facilities that require maximum testing throughput without sacrificing the precision of a smaller unit. With its massive internal volume and double-door configuration, it allows for the simultaneous testing of thousands of samples or large-scale industrial components. The unit is equipped with a steam humidification system, a key differentiator that ensures a vibration-free and silent internal atmosphere. This makes the KKS 1200 specifically suited for the breeding of sensitive organisms (such as Drosophila) and long-term botanical studies that would be disturbed by the high-frequency emissions of ultrasonic humidifiers.

Intelligent Management with Smart PRO: The KKS 1200 features the flagship Smart PRO controller, offering a 7-inch high-definition color touchscreen that is operable even with laboratory gloves. The system supports 40 user-defined programs and 100 segments, allowing for complex daily climate cycles.

Data Integrity: Built-in Wi-Fi, LAN, and USB ports facilitate effortless data transfer and remote monitoring. The system is fully GLP-compliant, featuring an extensive event registry and internal memory for 10,000 records.

Safety & Security: Standard features include Class 3.3 over-temperature protection, an “Alarm Bar” for immediate status visualization, and a lockable door with a dedicated key to prevent unauthorized access.

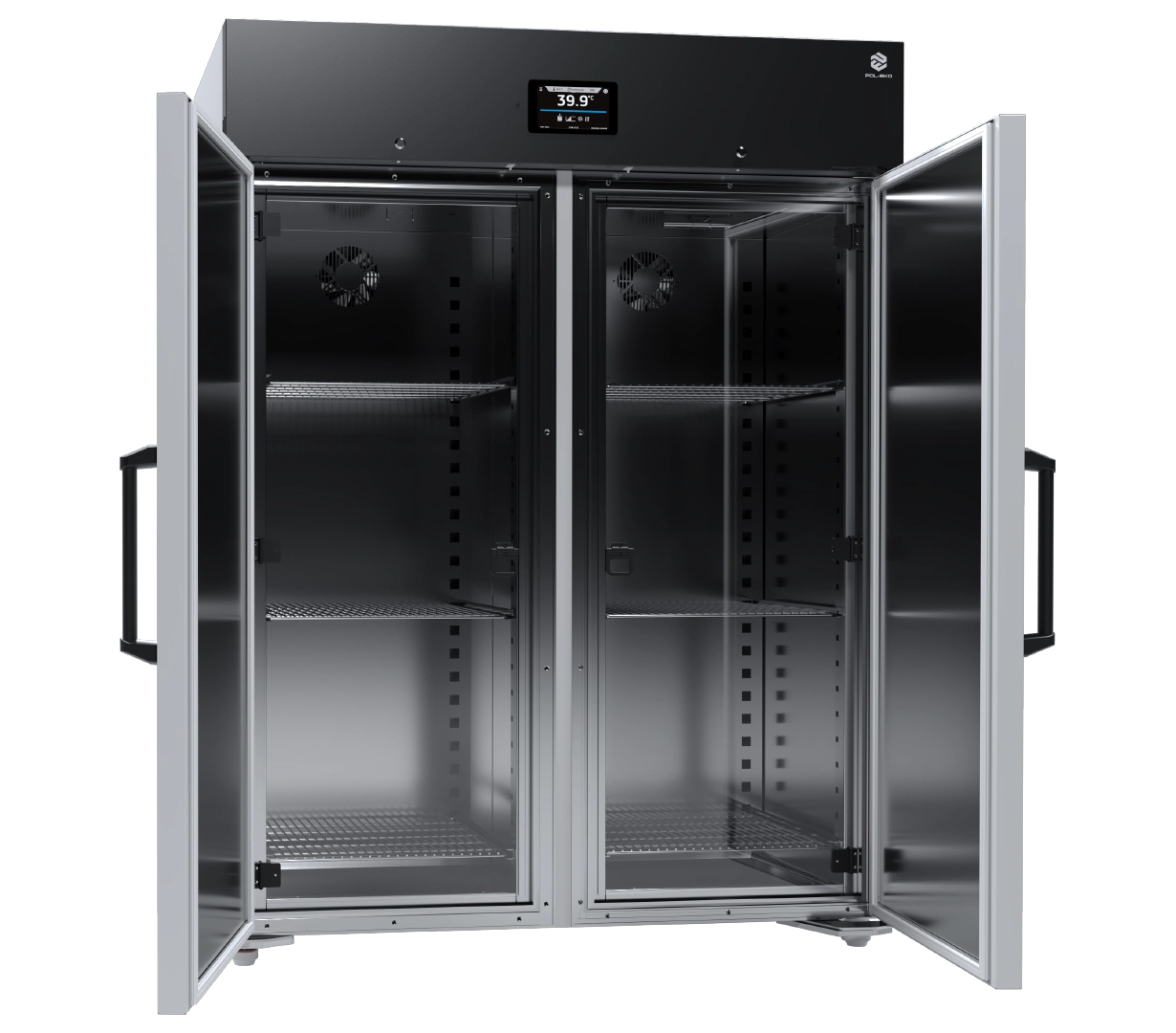

Durable Construction for Large Loads: Built for the rigors of industrial use, the chamber interior is crafted from acid-proof stainless steel (DIN 1.4301). The double-door design features solid, insulated outer doors for thermal efficiency and internal glass doors for sample inspection without microclimate disruption. The unit is mounted on heavy-duty castors with brakes, ensuring that despite its size, it can be positioned easily within the laboratory.

Primary Applications:

Pharmaceuticals: Large-scale stability testing in compliance with ICH Q1A (R2) guidelines.

Agriculture & Botany: High-throughput seed germination, plant cultivation, and phytotron research (with FIT option).

Electronics & Materials: Accelerated aging and environmental stress screening of large components.

Entomology: Vibration-free mass breeding of insects and microorganisms.

Specifications

General

  • Designed for precise temperature and humidity control.

  • Double door design: external insulated door + internal glass door.

  • Forced air convection for uniform conditions.

  • Steam humidification system with automatic defrosting.

  • Smart PRO controller with 7″ full-colour touchscreen display and advanced programming capabilities (multiple segments, alarms, logs, Wi-Fi/LAN/USB connectivity).

  • Over-temperature protection compliant with DIN 12880 class 3.3 safety standard.

Temperature & Humidity

  • Temperature range: 0…+60 °C (optional extension to –10…+60 °C).

  • Relative humidity range: 10…90 % RH.

  • Temperature resolution: 0.1 °C.

  • Humidity resolution: 0.1 %.

  • Temperature variation (uniformity): ~±1.0 °C at +25 °C/60 % RH.

  • Humidity variation: ~±2.0 % RH at +25 °C/60 % RH.

Capacity & Dimensions

  • Chamber capacity: ~1412 L total.

  • Working capacity: ~836 L usable.

  • Multiple shelves included (typically 6 stainless steel wire shelves) with options for more.

  • Access Ø30 mm port for external sensors.

Construction

  • Interior: acid-proof stainless steel (DIN 1.4301).

  • Exterior: powder-coated sheet (standard) or stainless steel finish (optional).

  • Castors (wheels) included for mobility.

Electrical

  • Power supply: typically 230 V, 50/60 Hz (options available).

  • Nominal power: ~2800 W (varies with options).

  • Refrigerant often R290 (low GWP).

Safety & Features

  • Open-door alarm, data logging, program scheduling.

  • LabDesk software for remote control and data export/management.

  • De-ionised water container for steam humidification.

  • Door lock for security.

Applications
Widely used for environmental testing, stability studies (ICH Q1A), materials testing, electronics ageing tests, and controlled humidity/temperature conditioning.

Datasheet
