Climatic Chamber KKP 750

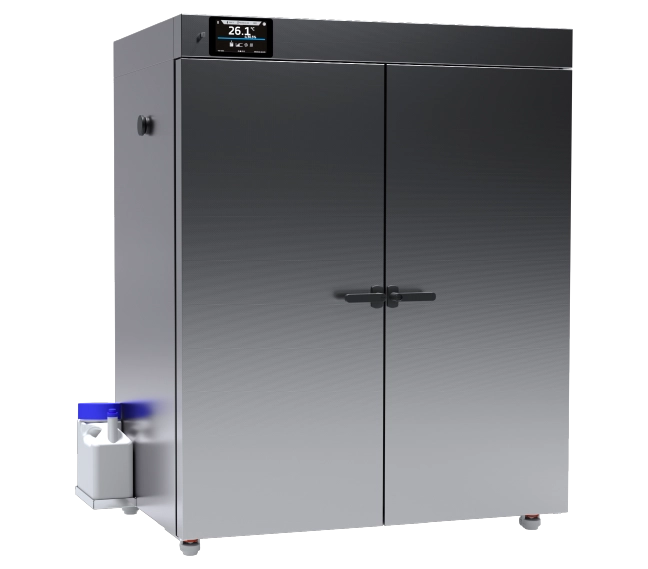

POL-EKO KKP 750 Constant Climatic Chamber The KKP 750 is a high-capacity, 749-liter climatic chamber powered by energy-efficient Peltier technology. Designed for stable, vibration-free environmental simulation, it offers a temperature range of 0?C to +70?C and humidity control from 10% to 90% RH. Featuring an ultrasound-free steam humidifier and the Smart PRO 7-inch touchscreen controller, it is the ideal large-scale solution for ICH pharmaceutical stability testing, insect breeding (e.g., Drosophila), and long-term storage where silent, refrigerant-free operation is required.

SKU: KKP 750 Categories: , Brand: Product ID: 21636

Description

The POL-EKO KKP 750 is the ultimate environmental chamber for laboratories that need to process large batches of samples while prioritizing energy efficiency and a vibration-free workspace. With its generous 749-liter capacity, it provides the same internal volume as the KKS 750 but utilizes Peltier modules for heating and cooling instead of a traditional compressor. This solid-state design eliminates refrigerants, significantly reduces noise levels, and provides exceptional temperature stability?making it the perfect environment for sensitive biological cultures, entomology research, and long-term stability trials.

Innovative Humidification & Eco-Performance: To complement its energy-efficient cooling, the KKP 750 is equipped with a high-precision steam humidifier (ultrasound-free). This system utilizes an aluminum heating block and a peristaltic pump for precise water dosing, avoiding the high-frequency interference common in ultrasonic units. The Peltier system is particularly effective for tests conducted near ambient temperatures, where it consumes significantly less power than compressor-based models.

Advanced Smart PRO Control System: The KKP 750 is managed by the Smart PRO controller, featuring a 7-inch high-resolution color touchscreen.

Connectivity: Integrated Wi-Fi and LAN allow for remote monitoring, while a front-access USB port enables easy data and program transfers.

Compliance: The system is fully GLP-compliant, offering an internal memory for 10,000 data records, a multi-user management system, and an extensive event registry.

Safety: Features include Class 3.3 over-temperature protection, an “Alarm Bar” for instant visual status, and power failure memory to protect long-term samples.

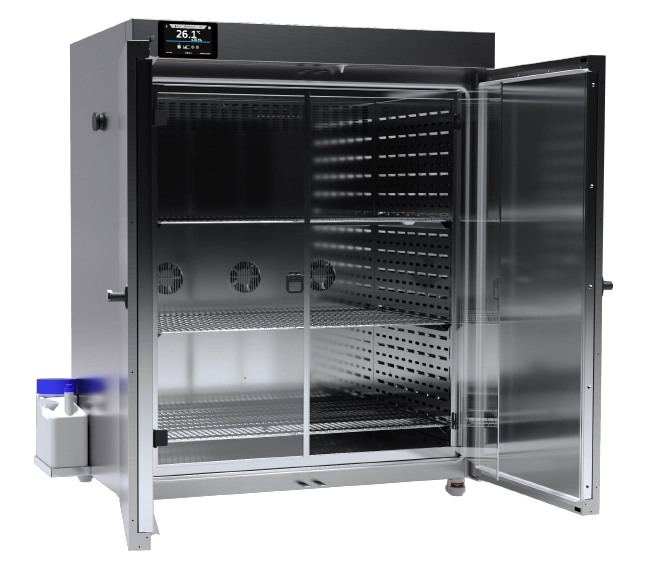

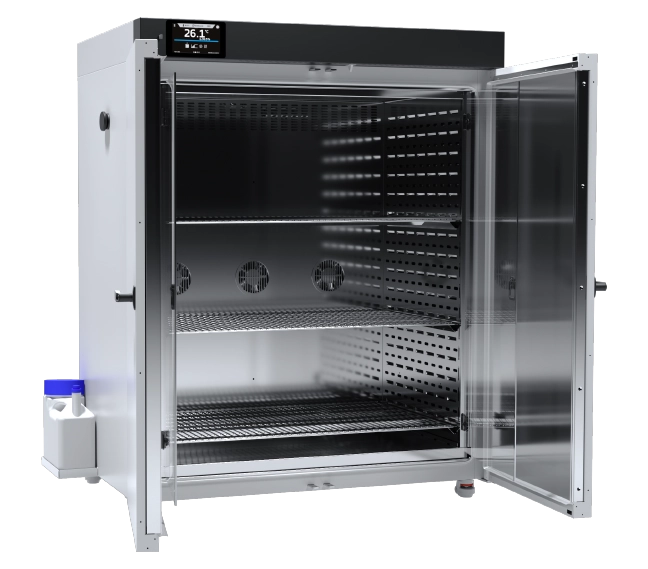

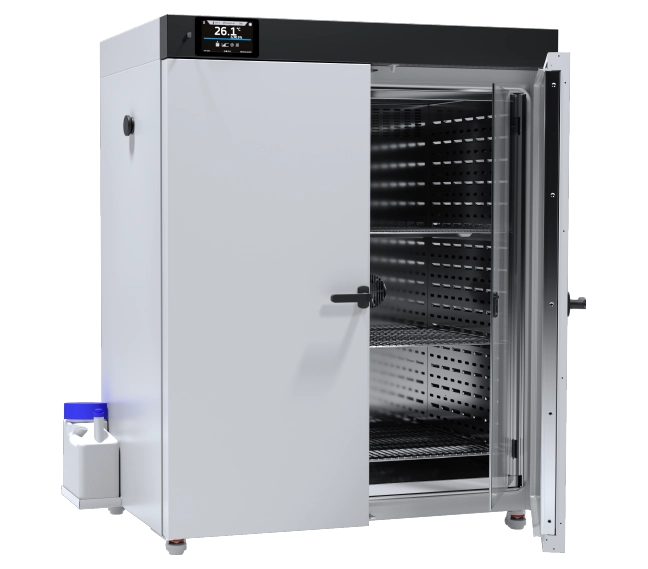

Durable, Maintenance-Free Construction: The chamber interior is made of acid-proof stainless steel (DIN 1.4301), designed to withstand years of high-humidity cycles. Its double-door configuration?consisting of two lockable solid outer doors and two internal glass doors?allows for sample inspection without disrupting the internal microclimate. Despite its large size, the lack of a compressor makes the unit lighter than standard chambers and nearly maintenance-free.

Datasheet

Specifications

General Overview

  • Model: KKP 750 Smart PRO

  • Manufacturer: POL-EKO

  • Technology: Peltier (Compressor-free cooling/heating)

  • Humidification: Steam generator

  • Convection: Forced air

  • Chamber Capacity: 749 Liters

  • Working Capacity: 749 Liters

Performance Data

  • Temperature Range (No Humidity): $0text{ to }+70^{circ}text{C}$ (max $20^{circ}text{C}$ below ambient)

  • Temperature Range (With Humidity): $+5text{ to }+70^{circ}text{C}$ (max $20^{circ}text{C}$ below ambient)

  • Temperature Resolution: $0.1^{circ}text{C}$

  • Temperature Fluctuation (at 40°C): $+/- 0.1^{circ}text{C}$

  • Temperature Variation (at 40°C): $+/- 0.2^{circ}text{C}$

  • Humidity Range: $10%text{ to }90%$

  • Humidity Resolution: $0.1%$

  • Humidity Fluctuation (at 40°C, 75% RH): $+/- 0.3%$

  • Humidity Variation (at 40°C, 75% RH): $< +/- 1.0%$

Dimensions & Loading

  • Internal Dimensions (W x H x D): $1040 times 1200 times 600 text{ mm}$

  • External Dimensions (W x H x D): $1260 times 1580 times 940 text{ mm}$

  • External Width (with water tank shelf): $1400 text{ mm}$

  • Shelves (Standard / Max): 3 / 16

  • Max Shelf Workload: $10 text{ kg}$ (standard) / $100 text{ kg}$ (reinforced)

  • Max Unit Workload: $140 text{ kg}$

  • Net Weight: $233 text{ kg}$

Electrical & Control

  • Controller: Smart PRO (7″ full-color touchscreen)

  • Connectivity: Wi-Fi, LAN, USB (data/program transfer)

  • Voltage: 230V / 50-60 Hz

  • Nominal Power: 2700 W

  • Temperature Protection: Class 3.3 (DIN 12880)

Materials & Equipment

  • Interior: Acid-proof stainless steel (DIN 1.4301)

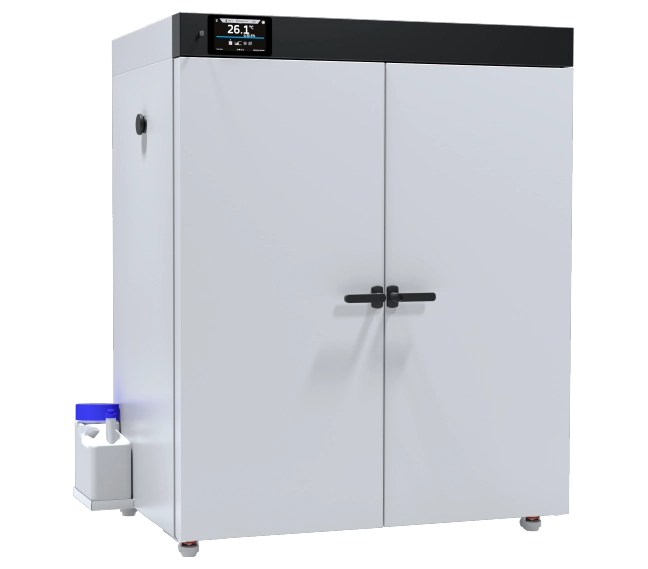

  • Exterior: Powder-coated sheet (standard) or Stainless steel linen finish (IG version)

  • Door Type: Double (solid external, glass internal)

  • Standard Accessories: 6L water container, LAN cable, LabDesk software, door lock, access port (Ø30 mm).
