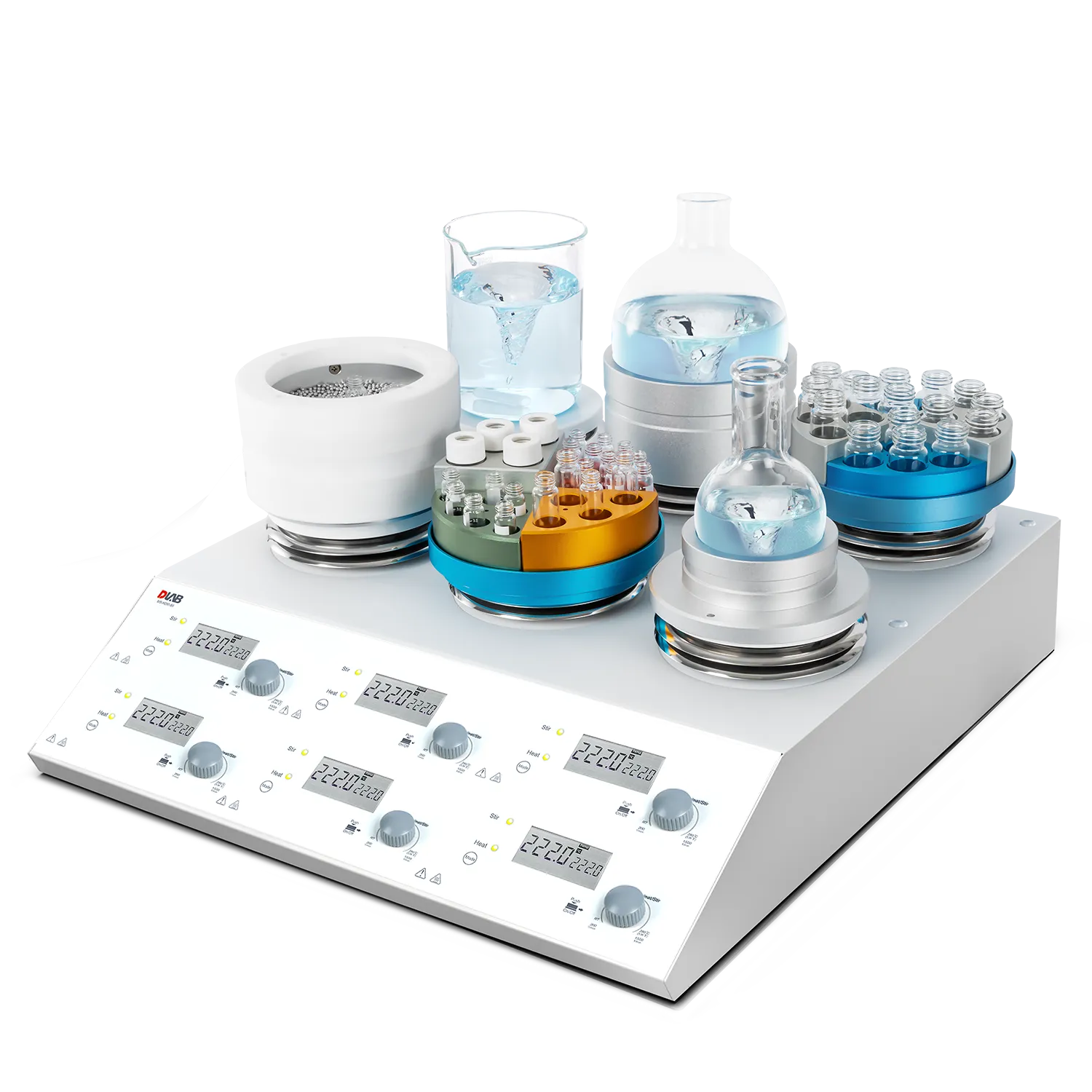

4/6 Channel LCD Digital Hotplate Magnetic Stirrer

4/6 Channel LCD Digital Hotplate Magnetic Stirrer

The 4/6 Channel LCD Digital Hotplate Magnetic Stirrer is a multi?position laboratory device that combines precise magnetic stirring and rapid heating with independent control for each channel. Featuring an intuitive LCD display and durable ceramic?coated work plate, it supports simultaneous experiments with accurate temperature and speed control.

Add to WishlistRemove from Wishlist
Add to Wishlist
SKU: 8030271112 Categories: , , Brand: Product ID: 21992

Description

The 4/6 Channel LCD Digital Hotplate Magnetic Stirrer offers advanced parallel experiment control with independently adjustable start/stop, temperature, speed, and display for each of its four or six channels, making it ideal for high?throughput laboratory workflows. Each work plate is ceramic?coated for fast heat transfer and corrosion resistance, ensuring reliable, uniform heating with accurate PID temperature regulation. A spark?free brushless DC motor provides stable, low?maintenance stirring performance across multiple samples. Safety is enhanced with ?HOT? warnings on the LCD display when surfaces remain warm, as well as dual safety circuits that monitor for overheating and electrical faults. Combining space?saving multi?channel design with robust performance, this instrument is well suited for applications in chemical synthesis, parallel reactions, bio?pharmaceutical processing, and analytical labs.

Specifications

  • Available in 4-channel and 6-channel configurations

  • Independent control for each channel (stirring and heating)

  • LCD digital display for temperature and speed on each position

  • Ceramic-coated aluminum work plate for fast heating and chemical resistance

  • Work plate size per channel: Ø134 mm

  • Maximum stirring volume: 3 L (H₂O) per channel

  • Maximum magnetic bar length: 40 mm

  • Speed range: 200–1500 rpm

  • Speed accuracy: ±20 rpm

  • Brushless DC motor, maintenance-free and spark-free

  • Heating temperature range: 25–280 °C

  • Temperature display resolution: 0.1 °C

  • Temperature control accuracy:

    • ±1 °C (below 100 °C)

    • ±1% (above 100 °C)

  • Heating power: 600 W per channel

  • Motor output power: 5 W per channel

  • External temperature sensor: PT1000 (accuracy ±0.2 °C)

  • Over-temperature protection: 420 °C

  • HOT warning indicator when plate temperature exceeds 50 °C

  • Protection class: IP21

  • Operating conditions: 5–40 °C, ≤80% relative humidity

  • Power supply:

    • 100–120 V / 60 Hz

    • 200–240 V / 50 Hz

  • Safety compliance: IEC61010-1, UL61010-1, EN61010-1, CSA C22.2
